SV 7.62HP/02/270SF 3.5SN BK BX

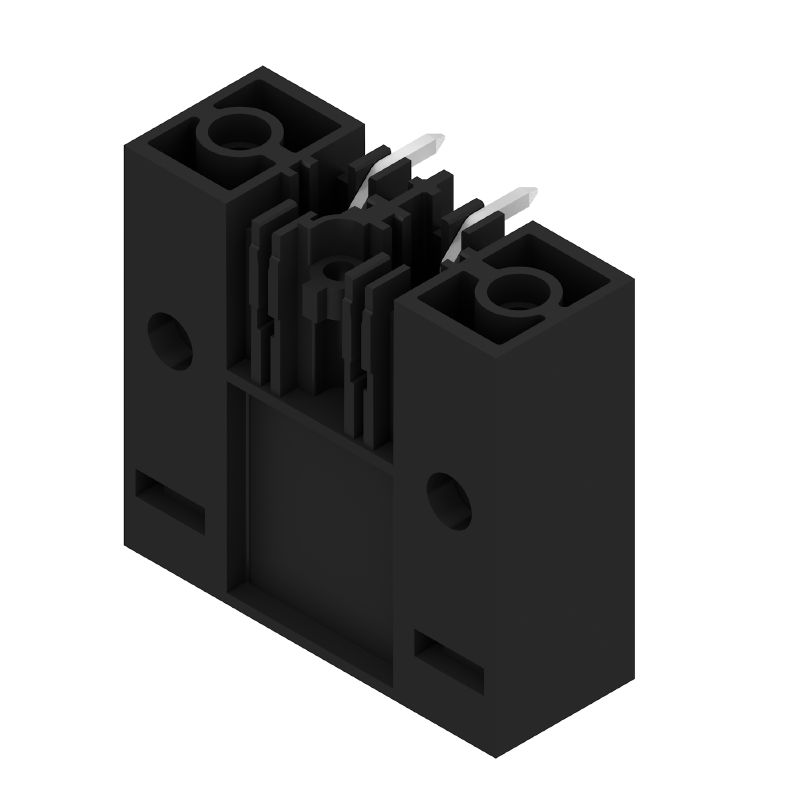

Zdjęcie produktu
SV 7.62HP/02/270SF 3.5SN BK BX

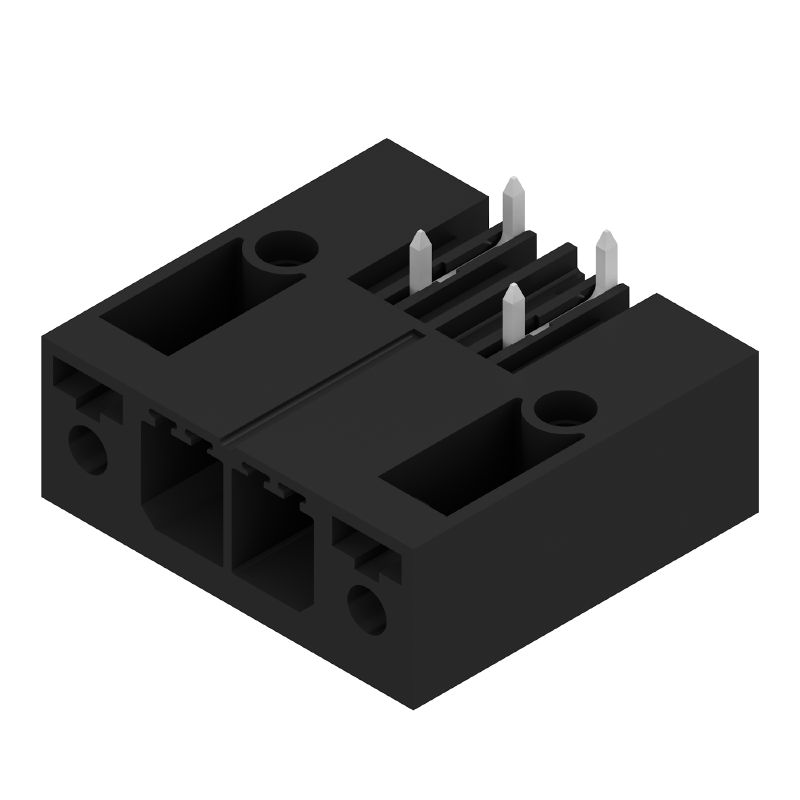

Product image
SV 7.62HP/02/270SF 3.5SN BK BX
Dimensional drawing

SV 7.62HP/02/270SF 3.5SN BK BX

PCB plug-in connector, male header, Screw/clip-on flange, THT solder connection, 7.62 mm, Number of poles: 2, 270°, Solder pin length (l): 3.5 mm, tinned, black, Box

Tuotteen tunnus 1931480000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 1 On vastine kohteelle 3 Samankaltaiset tuotteet 9
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male header, Screw/clip-on flange, THT solder connection, 7.62 mm, Number of poles: 2, 270°, Solder pin length (l): 3.5 mm, tinned, black, Box
Order No.
1931480000
Type
SV 7.62HP/02/270SF 3.5SN BK BX
GTIN (EAN)
4032248581511
Ilość
60 items
Product data
IEC: 1000 V / 57 A
UL: 300 V / 40.5 A
Packaging
Box

Dimensions and weights

Depth
28,3 mm
Głębokość (cale)
1,114 inch
Height
14,9 mm
Height (inches)
0,587 inch
Height of lowest version
11,4 mm
Width
30,48 mm
Width (inches)
1,2 inch
Peso netto
7,685 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Power - series BV/SV 7.62HP
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Outgoing elbow
270°
Number of poles
2
Number of solder pins per pole
2
Solder pin length (l)
3,5 mm
Solder pin length tolerance
+0.1 / -0.3 mm
Solder pin dimensions
0.8 x 1.0 mm
Diametro foro di equipaggiamento (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
7,62 mm
L1 in inches
0,3 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Touch-safe above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470
IP 20
IP20
when fully mounted
Volume resistance
2.00 mΩ
Can be coded
Yes
Tightening torque for screw flange, min.
0,2 Nm
Tightening torque for screw flange, max.
0,3 Nm
Plugging cycles
25

Material data

Materiale isolante
PA GF
Colori
black
Colour chart (similar)
RAL 9011
Gruppo materiali isolanti
II
Porównywalny wskaźnik śledzenia (CTI)
≥ 500
UL 94 flammability rating
V-0
Matériau des contacts
Copper alloy
Superficie de contacto
tinned
Layer structure of solder connection
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
130 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
130 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Corrente di dimensionamento, numero minimo di poli (Tu=20 °C)
57 A
Corrente di dimensionamento, numero massimo di poli (Tu=20 °C)
41 A
Corrente di dimensionamento, numero minimo di poli (Tu=40 °C)
41 A
Névleges áram, maximális pólusszám (Tu=40°C)
41 A
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia II/2
1.000 V
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia III/2
630 V
Tensione nominale con classe di sovratensione/grado di lordura III/3
630 V
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Sobretensión de choque nominal con categoría de sobretensión/grado de polución III/3
6 kV
Resistencia a corrientes de corta duración
3 x 1s with 420 A
Clearance, min.
6,9 mm
Distancia de fuga, mín.
9,6 mm

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
300 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
35 A
Rated current (Use group C / CSA)
35 A
Rated current (Use group D / CSA)
5 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
Napięcie znamionowe (grupa użytkowa D / UL 1059)
600 V
Rated voltage (Use group F / UL 1059)
744 V
Prąd znamionowy (grupa użytkowa B / UL 1059)
40,5 A
Rated current (Use group C / UL 1059)
40,5 A
정격 전류(사용 그룹 D / UL 1059)
5 A
Rated current (Use group F / UL 1059)
40,5 A
Clearance distance, min.
6,9 mm
Kriechstrecke, min.
9,6 mm
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
350 mm
VPE width
135 mm
VPE height
40 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Diameter of solder eyelet D = 1.4+0.1 mm starting with 8-pole
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
