Özellikler

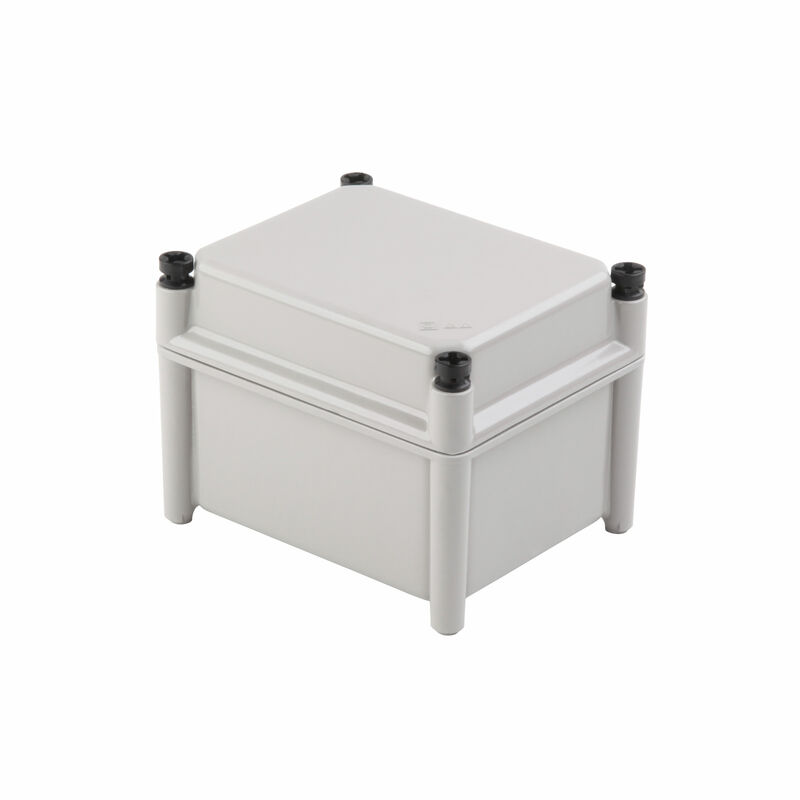

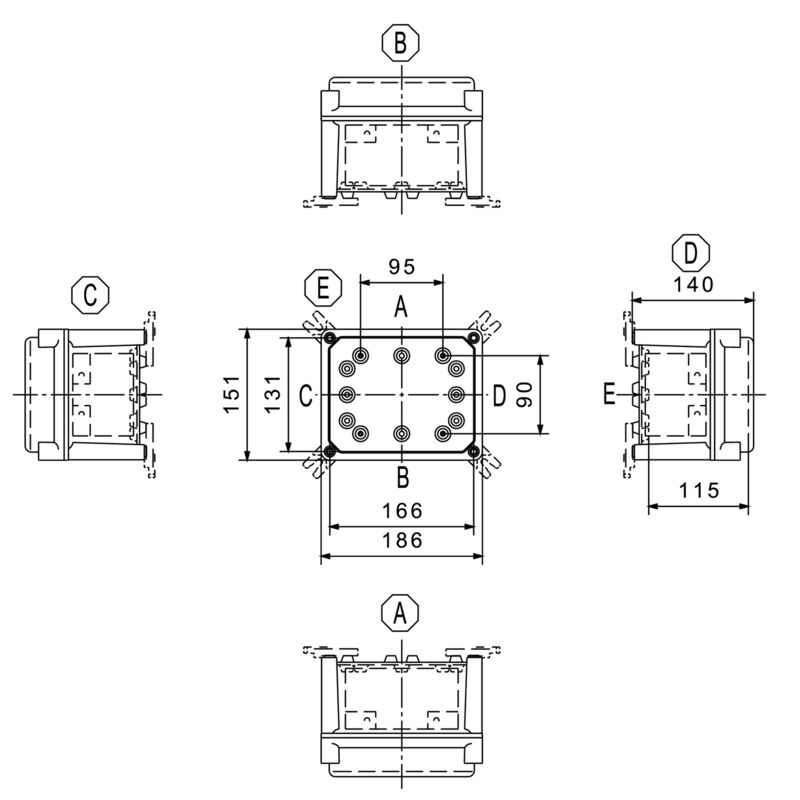

| Version | TBF (polyester empty enclosure), Empty enclosure, Height: 186 mm, Width: 151 mm, Depth: 140 mm, Material: Glass fibre-reinforced polyester, untreated, Light Grey |
| Order No. | 0360100000 |
| Type | TBF 19/15/14 7035 |
| GTIN (EAN) | 4008190962562 |
| Qty. | 1 adet |
| Depth | 140 mm |
| Depth (inches) | 5,512 inch |
| Height | 186 mm |
| Height (inches) | 7,323 inch |
| Width | 151 mm |
| Width (inches) | 5,945 inch |
| Net weight | 1.006 g |
| Operating temperature | -50 °C...130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| M12 | 11 |
| M16 | 6 |
| M20 | 2 |
| M25 | 2 |
| M32 | 1 |
| M40 | 1 |
| M12 | 11 |
| M16 | 6 |
| M20 | 2 |
| M25 | 2 |
| M32 | 1 |
| M40 | 1 |
| Declaration of Conformatiy No. (DoC LVD) | DoC DE PS2420 220224 002ISS01 |
| Access opening: height | 162 mm |
| Access opening: width | 127 mm |
| Areas of use |
Building systems and technology
Transportation Packaging industry Machine construction |
| Enclosure attachment | 6.5 mm hole in enclosure base |
| Flange plate | No |
| Impact resistance |
IK08 in accordance with IEC 62208
IK10 in accordance with IEC 62262 |
| Installation advice | Screw mounting |
| Integral fixing | 4 or 6 stud bolts M6 inner (female) thread |
| Lid | Yes |
| Lid attachment | Crosshead nylon screws |
| Material | Glass fibre-reinforced polyester |
| Number of lid screws | 4 |
| Operating temperature, max. | 130 °C |
| Operating temperature, min. | -50 °C |
| Protection degree | IP67 |
| Seal material | Polyurethane |
| Standards |
IEC 60529
EN 60529 EN 62208 EN/IEC 61439-2 |
| Surface finish | untreated |
| Torque for lid screws | 1,5 Nm |
| Toxicity | Free from halogens |
| UL 94 flammability rating | HB |
| WDU 10 / ZDU 10 | 1x9 |
| WDU 16 / ZDU 16 | 1x6 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x18 |
| WDU 35 / ZDU 35 | 1x5 |
| WDU 4 / ZDU 4 | 1x15 |
| WDU 6 / ZDU 6 | 1x11 |
| WDU 10 / ZDU 10 | 1x6 |
| WDU 16 / ZDU 16 | 1x4 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x11 |
| WDU 35 / ZDU 35 | 1x3 |
| WDU 4 / ZDU 4 | 1x9 |
| WDU 6 / ZDU 6 | 1x7 |
| Approval/Certificate/Document of Conformity | [DoC Declaration of Conformity LVD - TBF Empty Enclosures - DoC DE PS2420 220224 002ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_306389) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_76957) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0360100000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0360100000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000261 |
| ETIM 7.0 | EC000261 |
| ETIM 8.0 | EC000261 |
| ETIM 9.0 | EC000261 |
| ECLASS 9.0 | 27-18-01-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-01-01 |
| ECLASS 11.0 | 27-18-01-01 |
| ECLASS 12.0 | 27-18-01-01 |
| ECLASS 13.0 | 27-18-01-01 |
| ECLASS 14.0 | 27-18-01-01 |
| ROHS | Conform |
