Özellikler

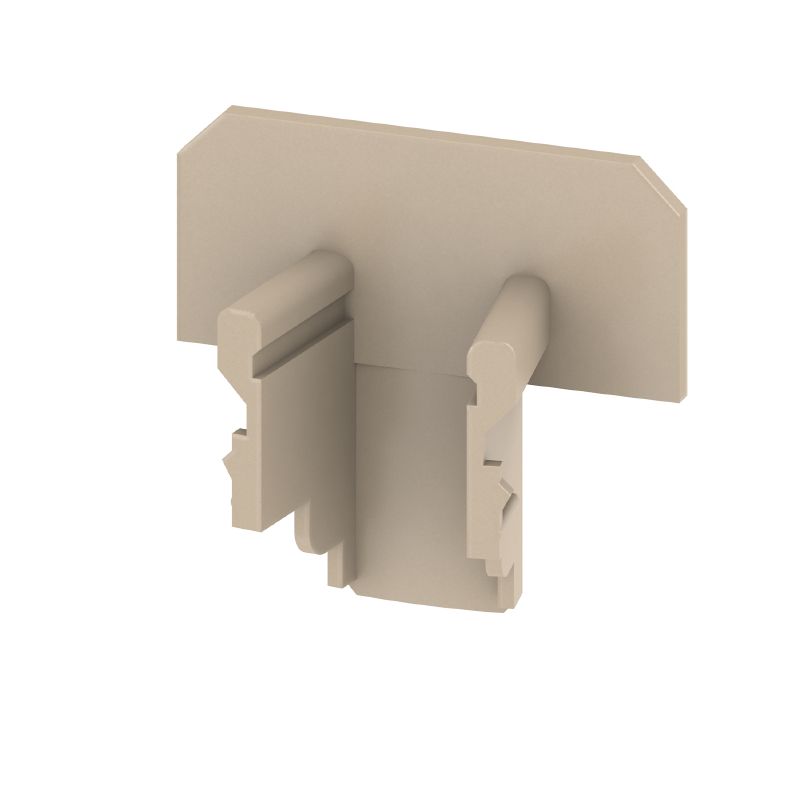

| Version | Small partition (terminal), PA 66, beige, Continuous operating temp., max.: 100 °C |
| Order No. | 0363360000 |
| Type | TSCH 4 AKZ4 |
| GTIN (EAN) | 4008190136680 |
| Qty. | 100 adet |
| Depth | 15 mm |
| Depth (inches) | 0,591 inch |
| Height | 16 mm |
| Height (inches) | 0,63 inch |
| Width | 6 mm |
| Width (inches) | 0,236 inch |
| Net weight | 0,181 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66 |
| Colour | beige |
| UL 94 flammability rating | V-2 |
| Version | End and intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | Yes |
| Installation advice | Direct mounting |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
aksesuarıdır
-
Ürün No.:0178220000Ambalaj birimi:20 adet
Fuse terminal, Screw connection, medium yellow, 10 mm², 16 A, 400 V, Number of connections: 2, Number of levels: 1, TS 35
-
Ürün No.:0210460000Ambalaj birimi:25 adet
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:0210260000Ambalaj birimi:25 adet
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:0396660000Ambalaj birimi:25 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:0538860000Ambalaj birimi:25 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:0396960000Ambalaj birimi:25 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:0396760000Ambalaj birimi:25 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:0396860000Ambalaj birimi:25 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:0539060000Ambalaj birimi:25 adet
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:0210060000Ambalaj birimi:25 adet
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:0396360000Ambalaj birimi:25 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:8014720000Ambalaj birimi:10 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:0538980000Ambalaj birimi:25 adet
Component terminal block, Screw connection, blue, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:0538960000Ambalaj birimi:25 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Ürün No.:0501620000Ambalaj birimi:20 adet
Fuse terminal, Screw connection, medium yellow, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35
-
Ürün No.:0225820000Ambalaj birimi:10 adet
Fuse terminal, Screw connection, medium yellow, 10 mm², 6.3 A, 24 V, Number of connections: 2, Number of levels: 1, TS 35
-
Ürün No.:0321560000Ambalaj birimi:100 adet
Feed-through terminal block, Screw connection, beige / yellow, 4 mm², 32 A, 400 V, Number of connections: 2
-
Ürün No.:0501500000Ambalaj birimi:20 adet
Fuse terminal, Screw connection, dark beige, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35
-
Ürün No.:0590260000Ambalaj birimi:25 adet
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 400 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Ürün No.:0355460000Ambalaj birimi:25 adet
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Ürün No.:0355480000Ambalaj birimi:25 adet
Multi-tier modular terminal, Screw connection, blue, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Ürün No.:0590060000Ambalaj birimi:25 adet
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 400 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Ürün No.:0590080000Ambalaj birimi:25 adet
Multi-tier modular terminal, Screw connection, blue, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Ürün No.:0569560000Ambalaj birimi:25 adet
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 115 V, 115 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Ürün No.:0484060000Ambalaj birimi:25 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Ürün No.:0642760000Ambalaj birimi:25 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Ürün No.:0210160000Ambalaj birimi:25 adet
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Ürün No.:0523760000Ambalaj birimi:25 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Ürün No.:0544660000Ambalaj birimi:25 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Ürün No.:0467960000Ambalaj birimi:25 adet
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Ürün No.:0359560000Ambalaj birimi:10 adet
Feed-through terminal block, Screw connection, beige / yellow, dark beige, 4 mm², 32 A, 400 V, Number of connections: 2
-
Ürün No.:0359660000Ambalaj birimi:10 adet
Feed-through terminal block, Screw connection, beige / yellow, dark beige, 4 mm², 32 A, 400 V, Number of connections: 2
-
Ürün No.:0294320000Ambalaj birimi:100 adet
Feed-through terminal block, Screw connection, medium yellow, 4 mm², 32 A, 400 V, Number of connections: 2
-
Ürün No.:0294380000Ambalaj birimi:100 adet
Feed-through terminal block, Screw connection, blue, 4 mm², 32 A, 400 V, Number of connections: 2
-
Ürün No.:0294360000Ambalaj birimi:100 adet
Feed-through terminal block, Screw connection, dark beige, 4 mm², 32 A, 400 V, Number of connections: 2
