Özellikler

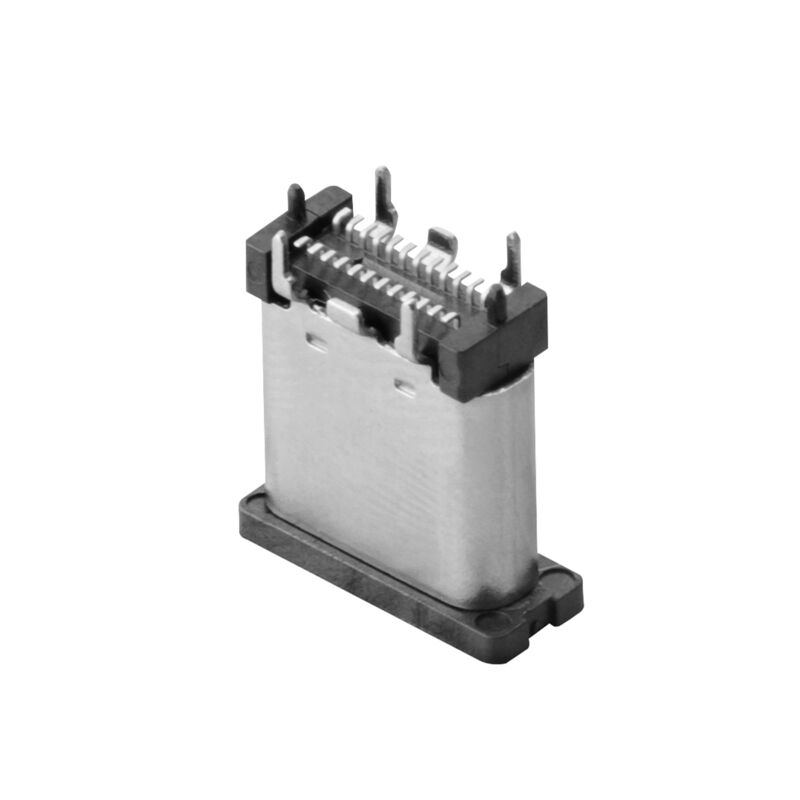

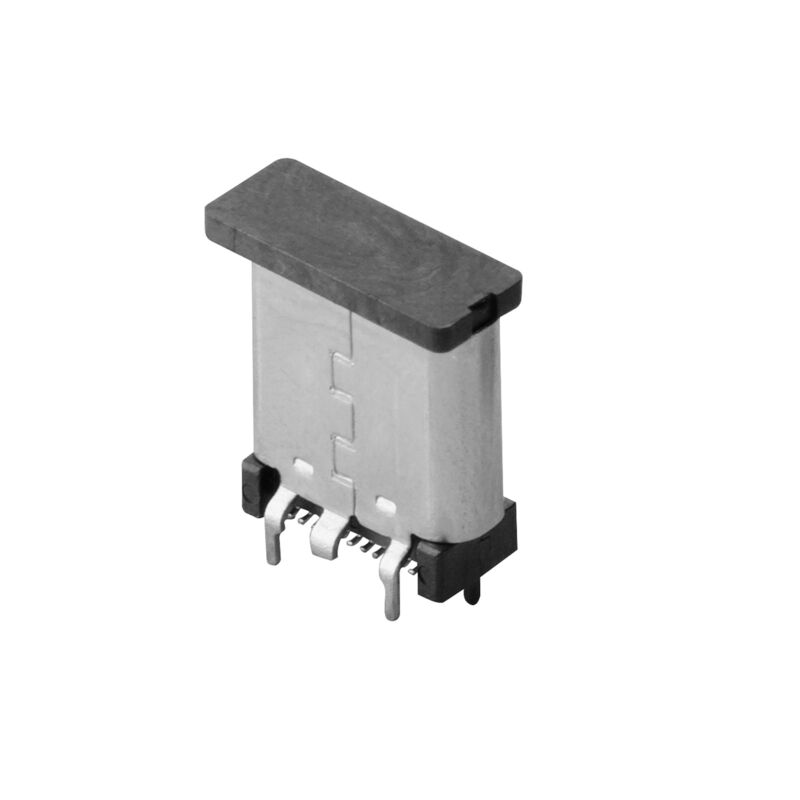

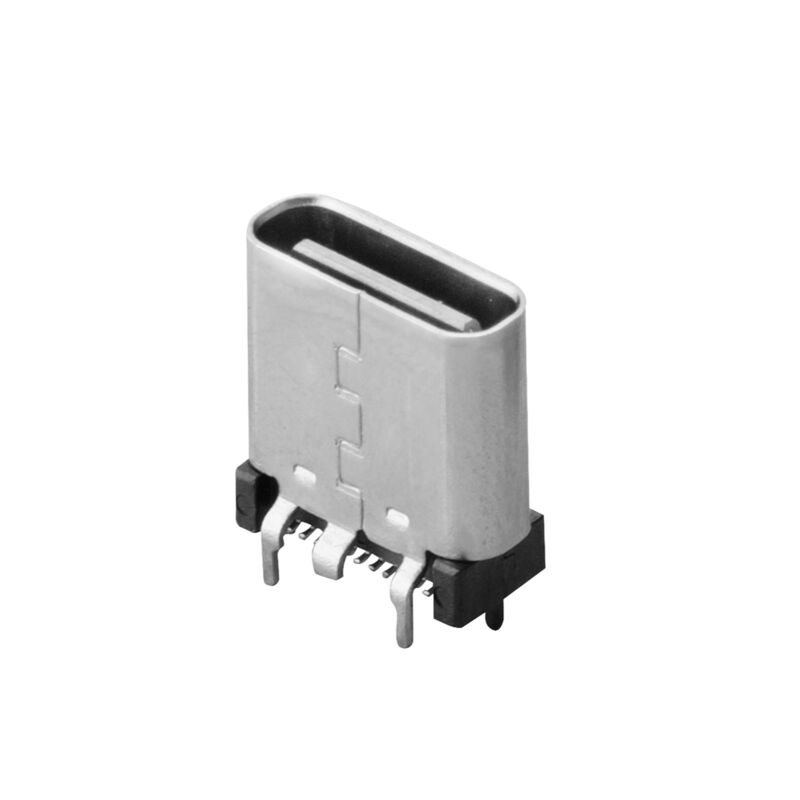

| Version | OMNIMATE Data - USB jack, PCB plug-in connector, USB jacks, Type C, SMD solder connection, 180°, Plugging cycles: ≥ 10000, Pitch in mm (P): 0.50, Number of poles: 24, LCP, Reel |
| Order No. | 2987540000 |
| Type | USB3.1C S1V DN1 RL |
| GTIN (EAN) | 4099986854994 |
| Qty. | 450 adet |
| Packaging | Reel |
| Depth | 4,3 mm |
| Depth (inches) | 0,169 inch |
| Height | 9,25 mm |
| Height (inches) | 0,364 inch |
| Width | 8,94 mm |
| Width (inches) | 0,352 inch |
| Net weight | 10 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Mounting onto the PCB | SMD solder connection |
| Number of poles | 24 |
| Number of solder pins per pole | 1 |
| Outgoing elbow | 180° |
| Pitch in mm (P) | 0,5 mm |
| Plugging cycles | ≥ 10000 |
| Product family | OMNIMATE Data - USB jack |
| Protection degree | IP20 |
| Shield surface | nickel-plated |
| Shield tabs | none |
| Shielding | 360° shield contact |
| Shielding material |
Stainless steel
Brass |
| Side termination, characteristic | None |
| Solder pin length (l) | 1,15 mm |
| Soldering process |
Reflow soldering
Manual soldering |
| Dielectric strength, contact / contact | 750 V AC |
| Insulation strength | ≥ 100 MΩ |
| Rated voltage | 5 V |
| Insulating material | LCP |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Insulation strength | ≥ 100 MΩ |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
| Contact base material | Copper alloy |
| Contact material | Phosphor bronze alloy |
| Contact surface | Gold over nickel |
| Operating temperature, min. | -30 °C |
| Operating temperature, max. | 80 °C |
| Packaging | Reel |
| VPE length | 0 |
| VPE width | 0 |
| VPE height | 0 |

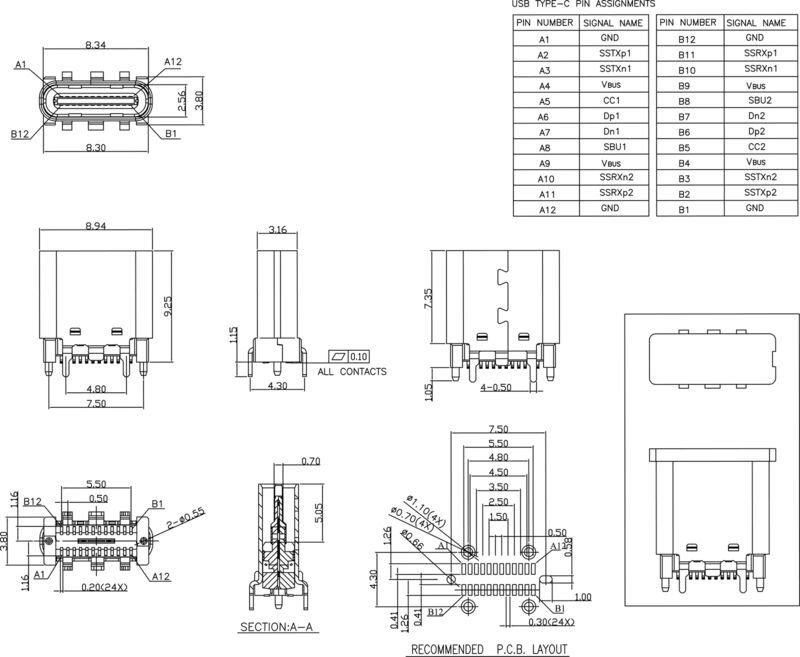

| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_314866) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2987540000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| ETIM 8.0 | EC002637 |
| ETIM 9.0 | EC002637 |
| ECLASS 9.1 | 27-44-04-02 |
| ECLASS 10.0 | 27-44-04-02 |
| ECLASS 11.0 | 27-46-02-01 |
| ECLASS 12.0 | 27-46-02-01 |
| ECLASS 13.0 | 27-46-02-01 |
| ECLASS 14.0 | 27-46-02-01 |
| ROHS | Conform |
