Surge protection for instrumentation and control, Surge protection for measurement and control

Produkt ID 1064350000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 4 Anvendte produkter 6
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Rated data UL Protección de datos CSA General data Insulation coordination acc. to EN 50178 Rated data IEC / EN A jóváhagyások további részletei Connection data Electrical data General data Ratings IECEx/ATEX/cUL Important note Classifications Tender specification sheets

Approvals

Сертификаты
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fe64228-e403-4415-b85f-44f3a8f8bb2c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/c809b3ab-e765-499c-852e-d528779da9f7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/f2570d3e-3e62-4056-9c95-fe925a1a2b86/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a5387a11-3584-42f1-9c6a-815af76ec080/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E311081

General ordering data

Версия
Surge protection for instrumentation and control, Surge protection for measurement and control
Заказ №
1064350000
Тип
VSSC6SL LD24VAC/DC0.5A
GTIN (EAN)
4032248829712
Qty.
10 Styk

Dimensions and weights

Глубина
81 mm
Depth (inches)
3,189 inch
Высота
88,5 mm
Height (inches)
3,484 inch
Ширина
6,2 mm
Width (inches)
0,244 inch
Net weight
41,6 g

Temperatures

Lagertemperatur
-40 °C...80 °C
Omgivningstemperatur
-40 °C…70 °C
Drifttemperatur
-40 °C...70 °C
Humidity
5...96 %

Probability of failure

SIL in compliance with IEC 61508
3
MTTF
2.114 a
SFF
96,67 %
λges
54
PFH in 1*10-9 per hour
1.8

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant with exemption
RoHS-undantag (om tillämpligt/känt)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
71e97bb7-979f-4330-94c0-20c629bb05e3

Rated data UL

Certificate No. (UL)
E311081
UL certificate
[UL Zertifikat](PDF/E311081VOL1SEC3.pdf)

Protección de datos CSA

Gas group C
IIB
Gas groups A, B
IIC
Gasgrupp D
IIA
Input voltage, max. Ui
42 V
Input-current, max. II
500 mA
Internal capacity, max. CI
2 nF
Internal inductance, max. LI
0 µH

General data

Colour
black
Design
Terminal
Isolating function
No
Mounting rail
TS 35
Optical function display
Yes
Protection degree
IP20
Segment
Measurement - Monitoring - Setting
UL 94 flammability rating
V-0
Version
Surge protection for measurement and control

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Corrente di scarica In (8/20 µs) filo-PE
2.5 kA
Corriente de prueba de iluminación, Iimp (10/350 µs) Hilo-PE
1 kA
Discharge current Imax (8/20µs) wire-PE
10 kA
Discharge current, max. (8/20 µs)
20 kA
Frequency range, max.
3,2 MHz
Fuse protection
0.5 A
Impuls-Rücksetzvermögen
≤ 20 ms
Insertion loss
3.12 Mhz
Leakage current at Un
2,8 mA
Lightning test current Iimp (10/350 µs)
1 kA
Max. continuous voltage, Uc (AC)
30 V
Max. continuous voltage, Uc (DC)
42 V
Mode défaut en surcharge
Modus 2
Number of poles
1
Névleges terhelőáram, IL
500 mA
odporność na prąd udarowy C2
2.5 kA 8/20 µs
Protection level, UP wire - PE
150 V
Protection level, UP wire - wire
150 V
Proudová zatížitelnost při rázovém proudu C3
10 A 10/1000 µs
Rated current IN
500 mA
Rated voltage (AC)
24 V
Rated voltage (DC)
34 V
Requirements category acc. to IEC 61643-21
C2
C3
D1
Signal transmission properties (-3 dB)
3.2 MHz
Signalling contact
No
Standards
IEC 61643-21
Surge current-carrying capacity D1
1 kA 10/350 μs
Voltage type
AC/DC
Volume resistance
1.8 Ω 10 %

A jóváhagyások további részletei

GOST certificate
[GOST-Zertifikat](PDF/7950_n1-n4.pdf)

Connection data

Stripping length
10 mm
Type of connection
Screw connection
Tightening torque, min.
0,5 Nm
Tightening torque, max.
0,8 Nm
Clamping range, min.
0,5 mm²
Clamping range, max.
4 mm²
Wire cross-section, solid, min.
0,5 mm²
Wire cross-section, solid, max.
6 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
4 mm²
Connection cross-section, stranded, min.
0,5 mm²
Connection cross-section, stranded, max.
4 mm²

Electrical data

Voltage type
AC/DC

General data

Number of poles
1
Protection degree
IP20
Colour
black

Ratings IECEx/ATEX/cUL

cUL certificate
[cUL Certificate](pdf/VSSC.PDF)

Important note

Produktinformation
Mode 2: State where the voltage-limiting part of the SPD was short-circuited due to a very low impedance within the SPD. The line is inoperable, but the measuring equipment is still protected by means of a short-circuit.

Classifications

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-01
ECLASS 15.0
27-17-15-01

Tender specification sheets

Long specification

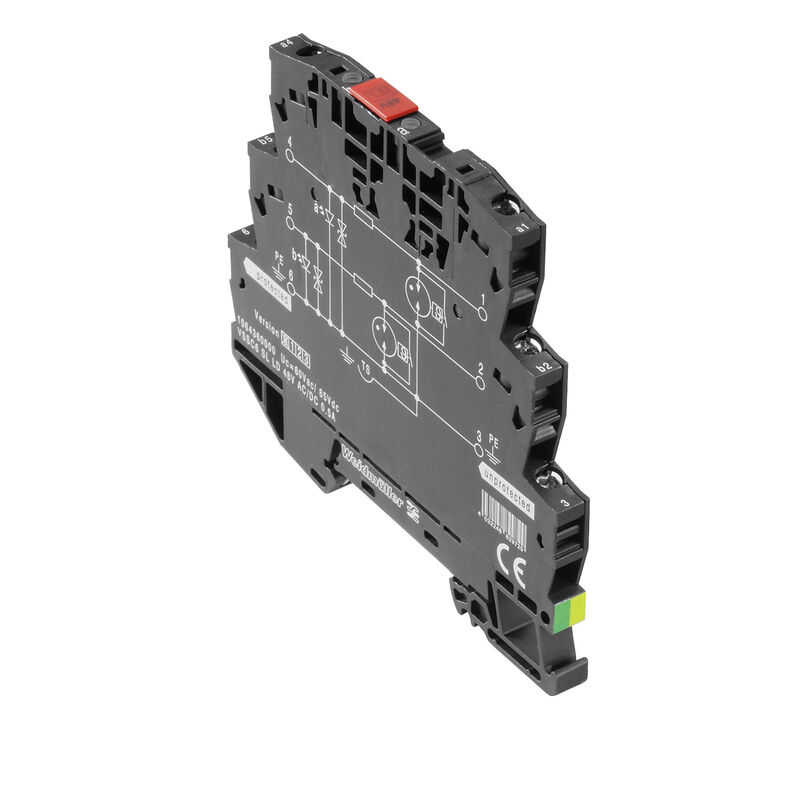

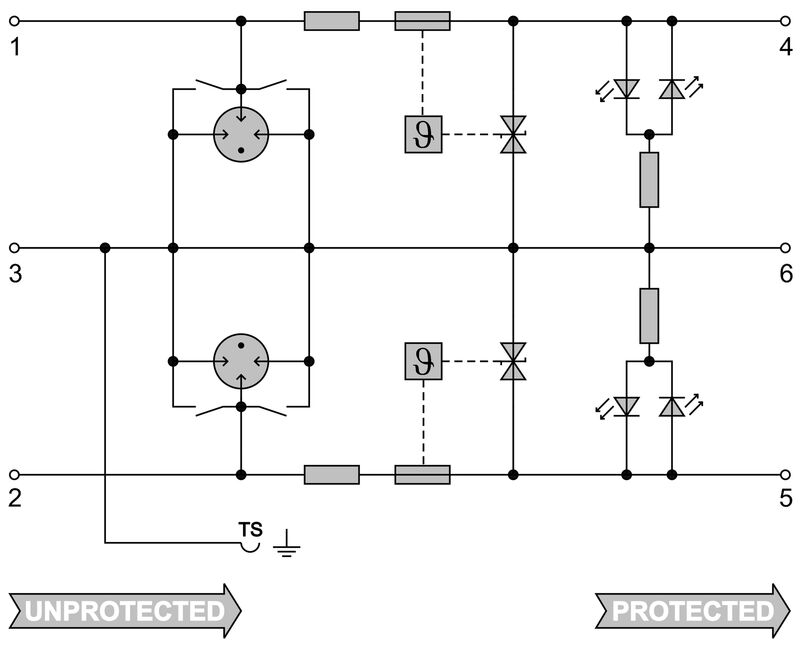

Surge protection in a one piece, 6.2 mm wide DIN rail module for two binary, potential-free signal circuits with 24 V UC. Signal indication via a green LED. When the terminal is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the terminal. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked.
Short specification
Surge protection in a one piece, 6.2 mm wide DIN rail module for two binary, potential-free signal circuits. Signal indication via a green LED. Version: 24V UC
