VT-TM 4/18 HF-V0

VT-TM 4/18 HF-V0

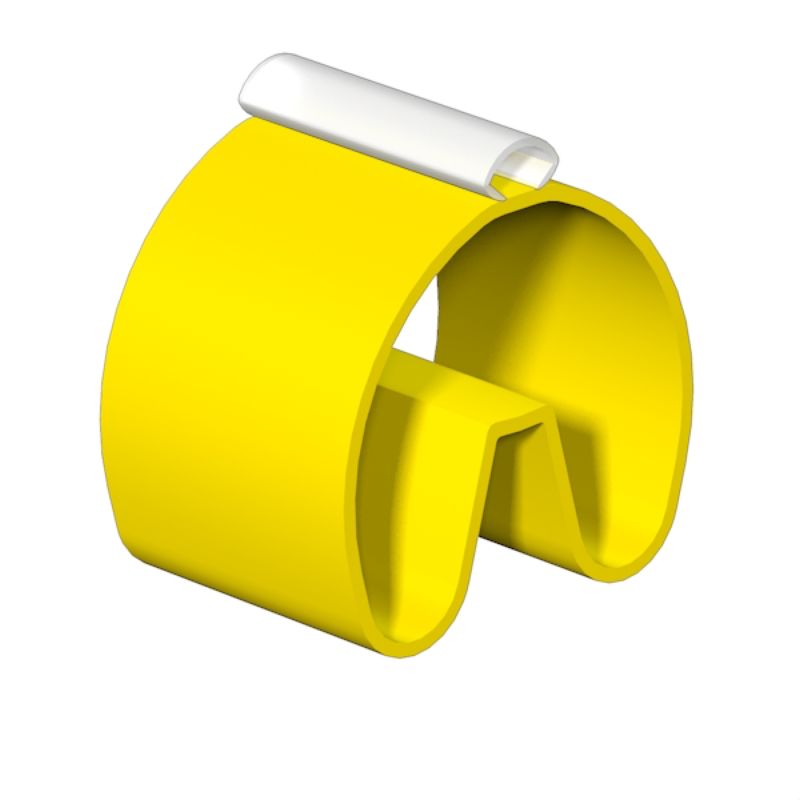

, Socket x 5.3 mm, Polyester, TPU, Colour: yellow, Transparent, Conductor O.D.: 14 - 26 mm

Item No. 2633070000
Download data sheet Product Downloads Engineering Support
Accessories 13 Related products 16
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
, Socket x 5.3 mm, Polyester, TPU, Colour: yellow, Transparent, Conductor O.D.: 14 - 26 mm
Číslo objednávky
2633070000
Tipo
VT-TM 4/18 HF-V0
GTIN (EAN)
4050118695137
Qty.
50 items

Dimensions and weights

Tiefe
23,95 mm
Depth (inches)
0,943 inch
Height
18 mm
Height (inches)
0,709 inch
Anchura
5,3 mm
Width (inches)
0,209 inch
Net weight
1,395 g

Temperatures

plage de température d'utilisation
-30...90 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyester
TPU
Colour
yellow
Transparent
Halogen
No
Operating temperature range
-30...90 °C
Operating temperature range, max.
90 °C
Operating temperature range, min.
-30 °C
Printed characters
without
Recommended industries
Transportation
Machinery
Type of printing
neutral
UL 94 flammability rating
V-0
Width
5,3 mm

Conductor and cable markers

Alogeni
No
Conductor O.D.
14 - 26 mm
Conductor O.D., max.
26 mm
Cross-section for connected wire
10 - 35 mm²
Vezeték-keresztmetszet, max.
35 mm²
Наружный диаметр провода, мин.
14 mm
전선 굵기, 최소
10 mm²

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
