Özellikler

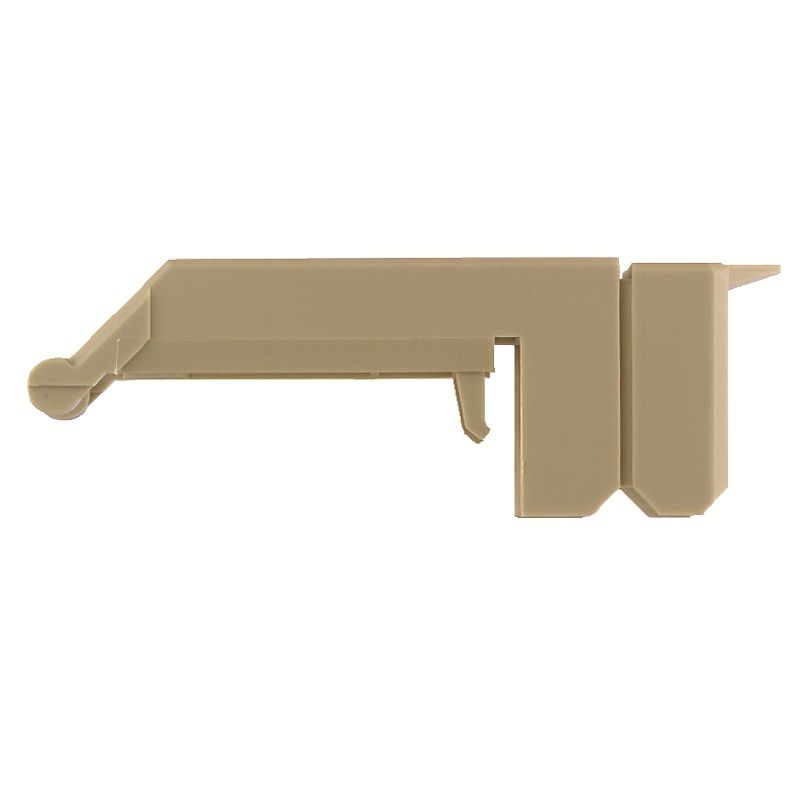

| Version | Bolt-type screw terminals, Hood, beige, 41 mm |
| Order No. | 1064660000 |
| Type | WAH 120 |
| GTIN (EAN) | 4008190100797 |
| Qty. | 20 adet |
| Depth | 34,5 mm |
| Depth (inches) | 1,358 inch |
| Height | 110,25 mm |
| Height (inches) | 4,341 inch |
| Width | 41 mm |
| Width (inches) | 1,614 inch |
| Net weight | 15,66 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | Polyamide 66 |
| Colour | beige |
| UL 94 flammability rating | V-2 |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | Snap-on |
| Pitch in mm (P) | 42 mm |
| Installation advice | Direct mounting |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60148) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1064660000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1064660000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
