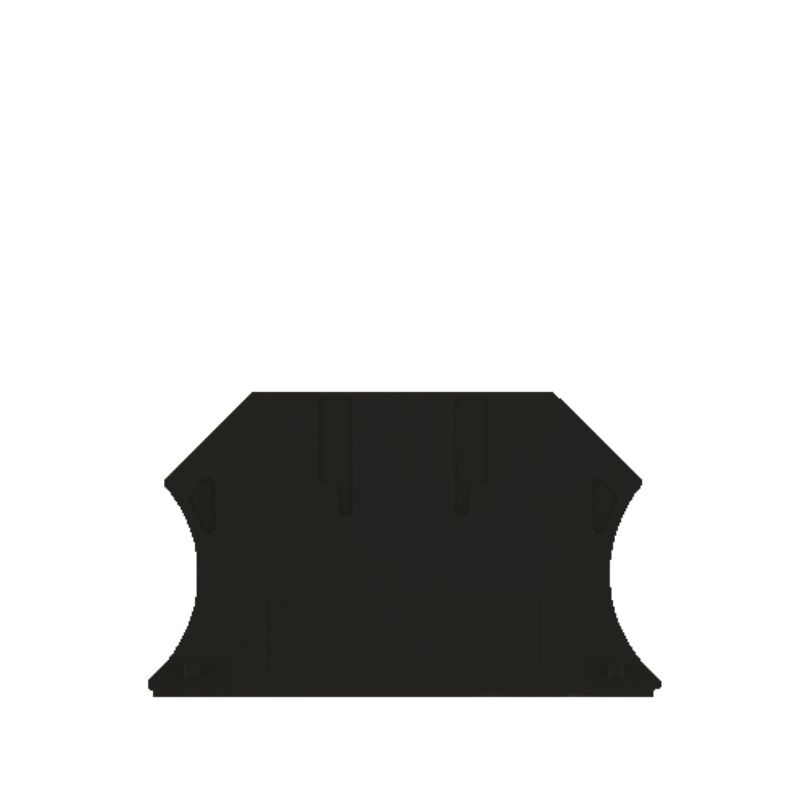

WAP 2.5-10 SW

End plate (terminals), black, Height: 56 mm, Width: 1.5 mm, V-0, Wemid

Ürün No. 1050010000

Özellikler

General ordering data

Version	End plate (terminals), black, Height: 56 mm, Width: 1.5 mm, V-0, Wemid
Order No.	1050010000
Type	WAP 2.5-10 SW
GTIN (EAN)	4008190406806
Qty.	50 adet

Dimensions and weights

Depth	33,5 mm
Depth (inches)	1,319 inch
Height	56 mm
Height (inches)	2,205 inch
Width	1,5 mm
Width (inches)	0,059 inch
Net weight	2,555 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	black
UL 94 flammability rating	V-0

System specifications

Version

End plate

Additional technical data

Installation advice	Direct mounting
Snap-on	No

General

Installation advice

Direct mounting

Downloads

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_223796)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1050010000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1050010000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000886
ETIM 7.0	EC000886
ETIM 8.0	EC000886
ETIM 9.0	EC000886
ECLASS 9.1	27-14-11-33
ECLASS 10.0	27-14-11-33
ECLASS 11.0	27-14-11-33
ECLASS 12.0	27-14-11-33
ECLASS 13.0	27-25-03-01
ECLASS 14.0	27-25-03-01

Approvals

ROHS

Conform

aksesuarıdır
