Özellikler
| Version | Accessories, Cross-connection slider, x 14.1 |
| Order No. | 1936140000 |

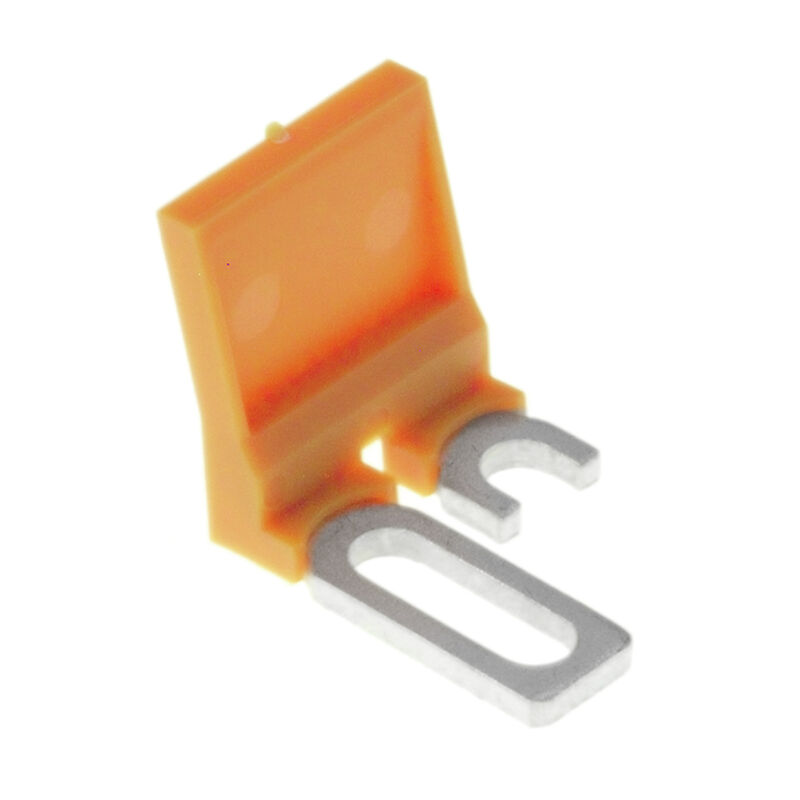

| Type | WKS 2/2 |
| GTIN (EAN) | 4032248605866 |
| Qty. | 50 adet |
| Depth | 16,1 mm |
| Depth (inches) | 0,634 inch |
| Height | 18,86 mm |
| Height (inches) | 0,743 inch |
| Width | 14,1 mm |
| Width (inches) | 0,555 inch |
| Net weight | 2,12 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| REACH SVHC | / |
| Material | Polyamide 66 |
| Colour | orange |
| UL 94 flammability rating | V-2 |
| Version | Cross-connector |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Pitch in mm (P) | 7,9 mm |
| Installation advice | Direct mounting |
| Number of poles | 2 |
| Operating temperature range, max. | 100 °C |
| Rated current | 41 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65034) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1936140000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1936140000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1936140000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ROHS | Conform |
