Özellikler

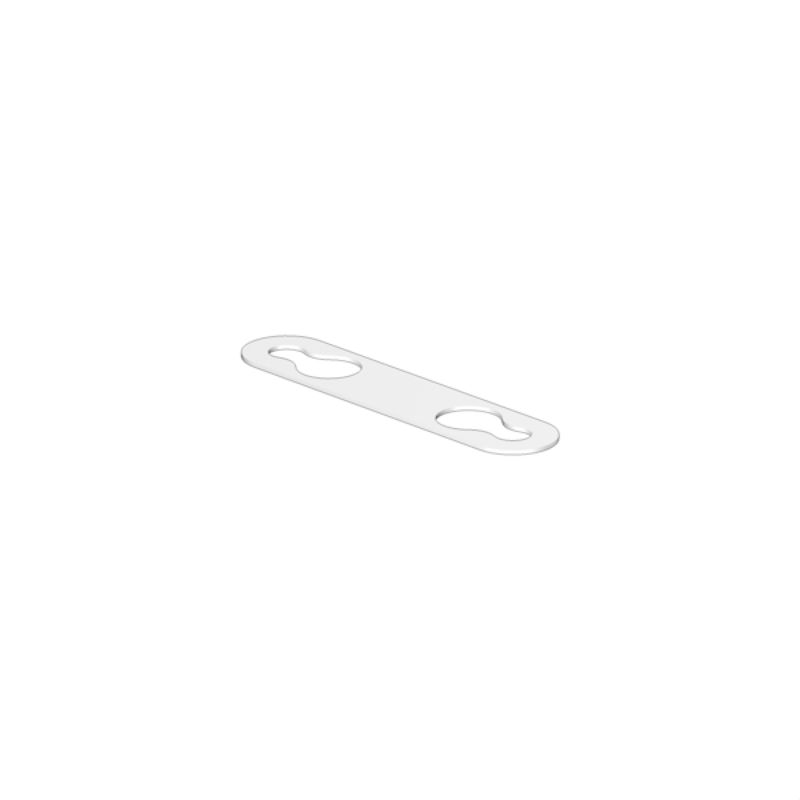

| Version | WM, Conductor and cable markers, 2 - 3.5 mm, 17 x 4.8 mm, white |
| Order No. | 2006350000 |
| Type | WM 1/6 2.0-3.5 MM WS |
| GTIN (EAN) | 4050118390711 |
| Qty. | 2.000 adet |
| Depth | 0,5 mm |
| Depth (inches) | 0,02 inch |
| Height | 17 mm |
| Height (inches) | 0,669 inch |
| Width | 4,8 mm |
| Width (inches) | 0,189 inch |
| Net weight | 0,081 g |
| Operating temperature range | -40...150 °C |
| Continuous operating temp., min. | -40 |
| Continuous operating temp., max. | 150 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | white |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polyester |
| Operating temperature range | -40...150 °C |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -40 °C |
| Size of labelling field | 7 x 4.8 mm |
| UL 94 flammability rating | HB |
| Version | halogen-free |
| Width | 4,8 mm |
| Conductor cross-section, max. | 2,5 mm² |
| Conductor cross-section, min. | 0,75 mm² |
| Conductor O.D. | 2 - 3.5 mm |
| Conductor O.D., max. | 3,5 mm |
| Conductor O.D., min. | 2 mm |
| Cross-section for connected wire | 0.75 - 2.5 mm² |
| Halogen | No |
| Text field height | 4,8 mm |
| Text field width | 7 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65757) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2006350000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2006350000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
