Özellikler

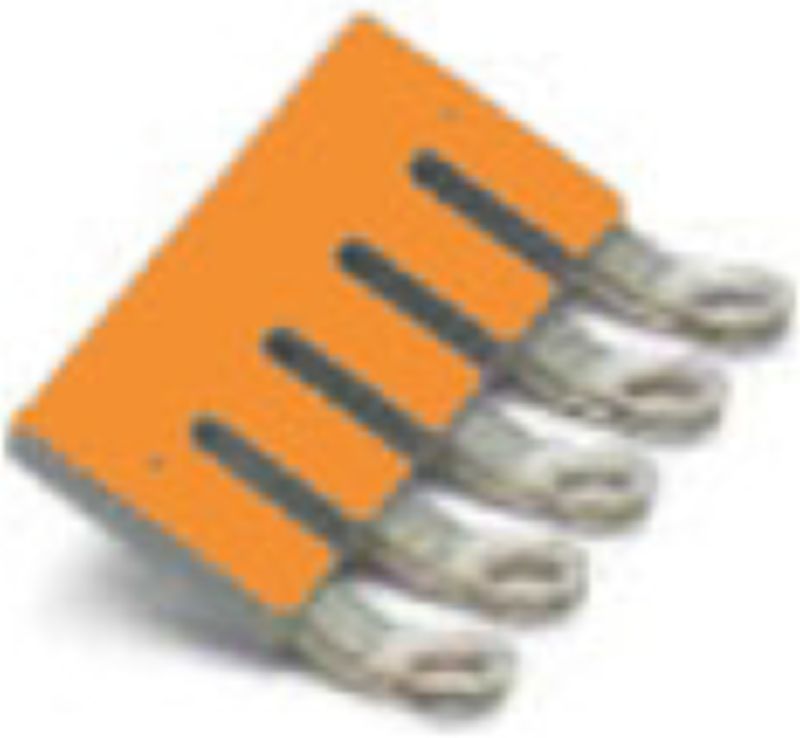

| Version | Cross-connector (terminal), when screwed in, Number of poles: 5, Pitch in mm (P): 11.10, Insulated: Yes, 41 A, orange |
| Order No. | 2550760000 |
| Type | WQB 5 WTL 6/4 FF |
| GTIN (EAN) | 4050118560626 |
| Qty. | 10 adet |
| Depth | 5 mm |
| Depth (inches) | 0,197 inch |
| Height | 29,32 mm |
| Height (inches) | 1,154 inch |
| Width | 51,5 mm |
| Width (inches) | 2,028 inch |
| Net weight | 11,1 g |
| Storage temperature | -25 °C...55 °C |
| REACH SVHC | / |
| Material | Wemid |
| Colour | orange |
| Version | Cross-connector |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Pitch in mm (P) | 11,1 mm |
| Installation advice | Direct mounting |
| Number of poles | 5 |
| Rated current | 41 A |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ROHS | Conform |
