Özellikler

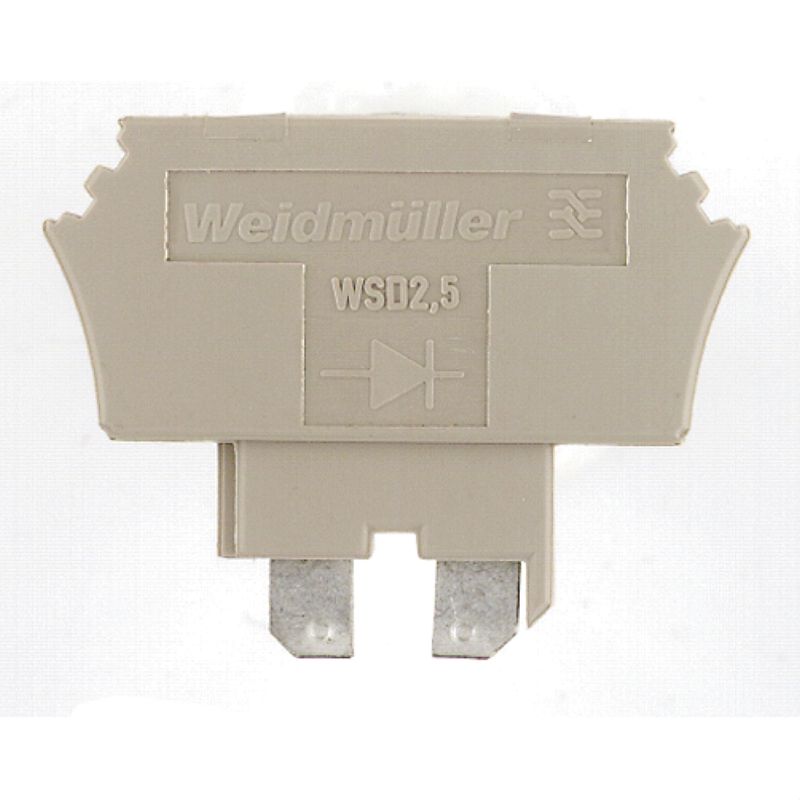

| Version | Component plug (terminal), Plug-in connection, Plugged, dark beige |
| Order No. | 1058460000 |
| Type | WSD 2.5/D+/- WTR2.5 |
| GTIN (EAN) | 4008190025021 |
| Qty. | 25 adet |
| Depth | 29,58 mm |
| Depth (inches) | 1,165 inch |
| Height | 38,4 mm |
| Height (inches) | 1,512 inch |
| Width | 5 mm |
| Width (inches) | 0,197 inch |
| Net weight | 3,43 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | c6099607-b1cd-4fc8-8f5b-8c2defa73093 |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | Diode module |
| End cover plate required | No |
| Number of levels | 1 |
| PE connection | No |
| Explosion-tested version | No |
| Type of fixing | Plugged |
| Type of mounting | Plugged |
| Connection direction | top |
| Type of connection | Plug-in connection |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_52397) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1058460000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1058460000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002018 |
| ETIM 7.0 | EC002018 |
| ETIM 8.0 | EC002018 |
| ETIM 9.0 | EC002018 |
| ECLASS 9.0 | 27-14-11-49 |
| ECLASS 9.1 | 27-14-11-49 |
| ECLASS 10.0 | 27-14-11-49 |
| ECLASS 11.0 | 27-14-11-49 |
| ECLASS 12.0 | 27-14-11-49 |
| ECLASS 13.0 | 27-25-03-05 |
| ECLASS 14.0 | 27-25-03-05 |
| ROHS | Conform |
Aksesuarlar
MarkersTerminal markersRelated markersTag holderMarker holder
aksesuarıdır
-
Ürün No.:1774670000Ambalaj birimi:50 adet
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 16 A, 400 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Ürün No.:1039980000Ambalaj birimi:50 adet
Test-disconnect terminal, Screw connection, blue, 2.5 mm², 16 A, 400 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Ürün No.:1039900000Ambalaj birimi:50 adet
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 16 A, 400 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
