Özellikler
| Version | Bolt-type screw terminals, Partition plate, grey, 2 mm |
| Order No. | 1067300000 |

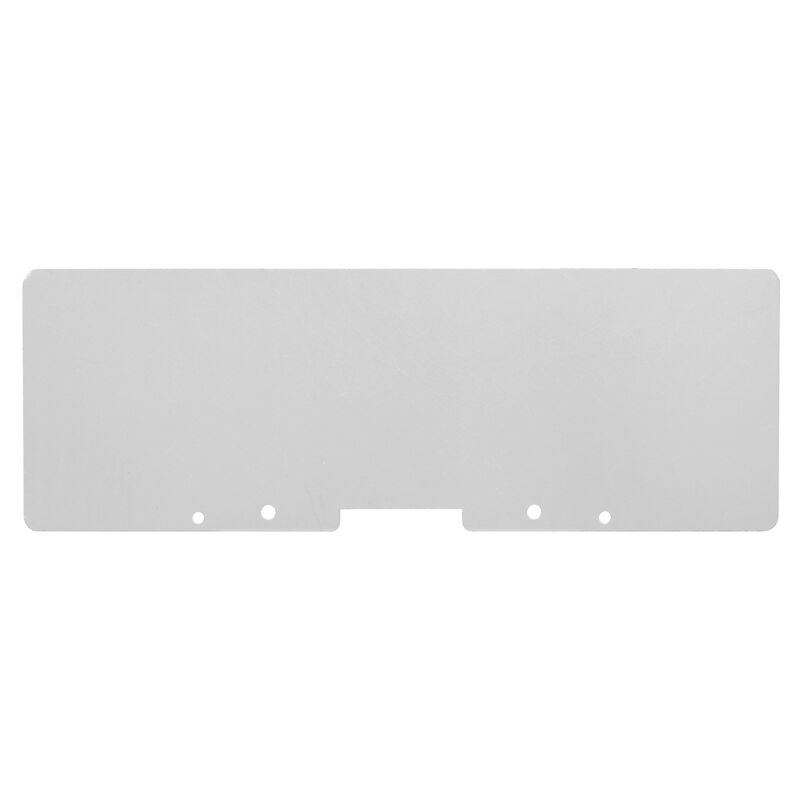

| Type | WTW WFF120 |
| GTIN (EAN) | 4008190093037 |
| Qty. | 10 adet |
| Depth | 80 mm |
| Depth (inches) | 3,15 inch |
| Height | 230 mm |
| Height (inches) | 9,055 inch |
| Width | 2 mm |
| Width (inches) | 0,079 inch |
| Mounting dimension - width | 2 mm |
| Net weight | 64,3 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | grey |
| UL 94 flammability rating | V-0 |
| Version | End and intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | No |
| Installation advice | Direct mounting |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60189) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1067300000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1067300000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
aksesuarıdır
-
Ürün No.:1028500000Ambalaj birimi:5 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection, Direct mounting
-
Ürün No.:1857540000Ambalaj birimi:4 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
-
Ürün No.:1049240000Ambalaj birimi:4 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection, Direct mounting, TS 35
-
Ürün No.:1028580000Ambalaj birimi:5 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
-
Ürün No.:1029500000Ambalaj birimi:4 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
Terminal BlocksUniversal rangeStud technologyWF/WFF-Series2 Studs120 mm²
