Özellikler

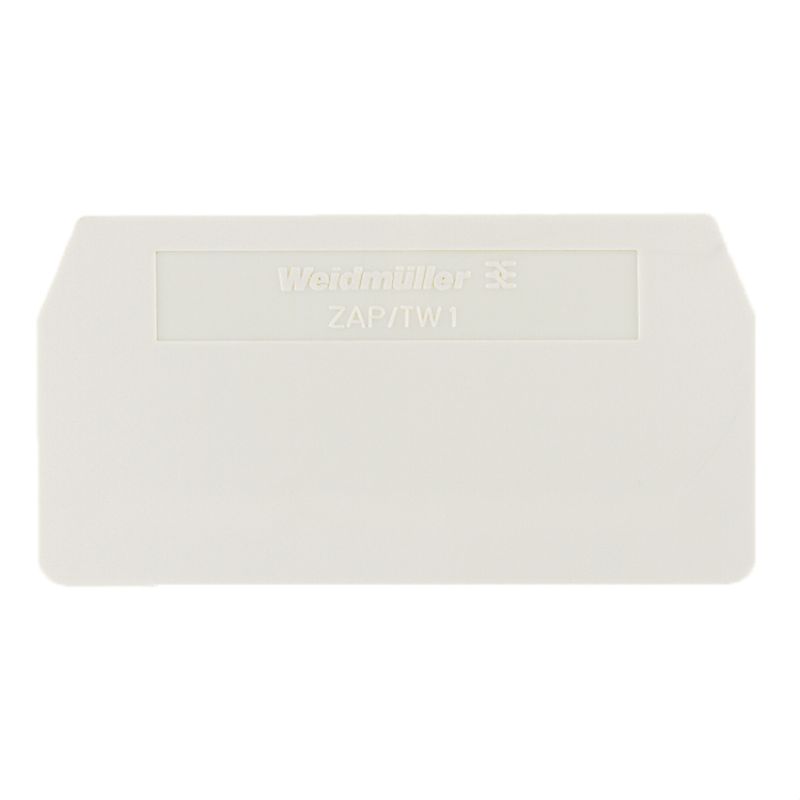

| Version | Z-series, End plate, Partition plate |
| Order No. | 1683710000 |
| Type | ZAP/TW 1 GR |
| GTIN (EAN) | 4008190476793 |
| Qty. | 50 adet |
| Depth | 30,5 mm |
| Depth (inches) | 1,201 inch |
| Height | 59,5 mm |
| Height (inches) | 2,343 inch |
| Width | 2 mm |
| Width (inches) | 0,079 inch |
| Net weight | 2,85 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 |
| Continuous operating temp., max. | 120 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | grey |
| UL 94 flammability rating | V-0 |
| Version | End and intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | Yes |
| Installation advice | Direct mounting |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62747) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1683710000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1683710000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
aksesuarıdır
-
Ürün No.:8731680000Ambalaj birimi:50 adet
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, orange
-
Ürün No.:1831130000Ambalaj birimi:50 adet
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, without, dark beige
-
Ürün No.:8731710000Ambalaj birimi:50 adet
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, blue
-
Ürün No.:1831280000Ambalaj birimi:50 adet
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, dark beige
-
Ürün No.:1608520000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
-
Ürün No.:1683260000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, red
-
Ürün No.:1683290000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, violet
-
Ürün No.:1683270000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, yellow
-
Ürün No.:1636780000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, orange
-
Ürün No.:1683280000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, green
-
Ürün No.:1608510000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1683300000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, brown
-
Ürün No.:1683330000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, black
-
Ürün No.:1683320000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, white
-
Ürün No.:1683310000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, grey
-
Ürün No.:1608640000Ambalaj birimi:50 adet
PE terminal, Tension-clamp connection, 2.5 mm², 300 A (2.5 mm²), Green/yellow
-
Ürün No.:1754970000Ambalaj birimi:50 adet
Measuring transformer disconnect terminal, Screw connection, 32, 2
-
Ürün No.:1754960000Ambalaj birimi:50 adet
Measuring transformer disconnect terminal, Screw connection, 32, 2
