Özellikler
| Version | Z-series, Reducing sleeve |
| Order No. | 1678810000 |

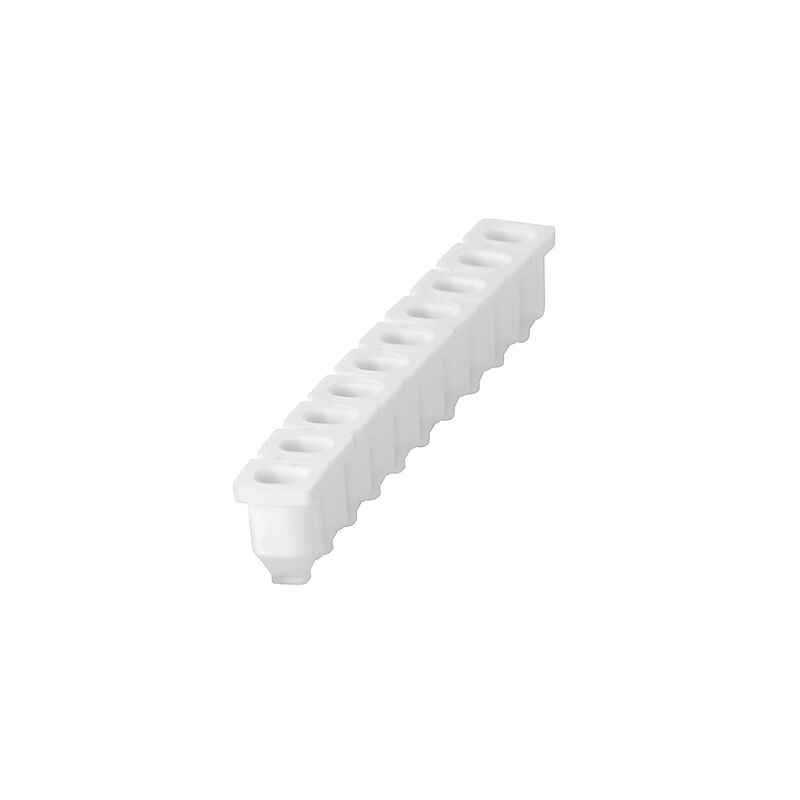

| Type | ZRH 1.5H/1 |
| GTIN (EAN) | 4008190487324 |
| Qty. | 1.000 adet |
| Depth | 7,45 mm |
| Depth (inches) | 0,293 inch |
| Height | 49,3 mm |
| Height (inches) | 1,941 inch |
| Width | 4,85 mm |
| Width (inches) | 0,191 inch |
| Net weight | 0,07 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 |
| Continuous operating temp., max. | 120 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | grey |
| UL 94 flammability rating | V-0 |
| Version | For the terminals |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | Plugged |
| Installation advice | Direct mounting |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_46535) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1678810000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1678810000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
aksesuarıdır
-
Ürün No.:1676630000Ambalaj birimi:100 adet
Potential distributor, Miscellaneous, 1.5 mm², Flange-mounted housing, Potential distributor
-
Ürün No.:1690000000Ambalaj birimi:50 adet
Double-tier terminal, PE terminal, Tension-clamp connection, 2.5 mm², 300 A (2.5 mm²), Green/yellow
-
Ürün No.:1791010000Ambalaj birimi:50 adet
Z-series, PE terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Green/yellow
-
Ürün No.:1905310000Ambalaj birimi:50 adet
Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
-
Ürün No.:1058670000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, red
-
Ürün No.:1689980000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, dark beige
-
Ürün No.:1103830000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, yellow
-
Ürün No.:1745880000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, blue
-
Ürün No.:1674300000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, beige
-
Ürün No.:1678630000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, blue
-
Ürün No.:1694140000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, orange
-
Ürün No.:1058680000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, white
-
Ürün No.:1689970000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, dark beige
-
Ürün No.:1799790000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, brown
-
Ürün No.:1689960000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, dark beige
-
Ürün No.:1689990000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, dark beige
-
Ürün No.:1058690000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, black
-
Ürün No.:1690060000Ambalaj birimi:50 adet
Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
-
Ürün No.:1690050000Ambalaj birimi:50 adet
Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
-
Ürün No.:1690020000Ambalaj birimi:50 adet
Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
-
Ürün No.:1690030000Ambalaj birimi:50 adet
Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
-
Ürün No.:1693940000Ambalaj birimi:50 adet
Z-series, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
-
Ürün No.:1690040000Ambalaj birimi:50 adet
Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
-
Ürün No.:1713290000Ambalaj birimi:50 adet
Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
-
Ürün No.:2738140000Ambalaj birimi:50 adet
Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection
-
Ürün No.:1690010000Ambalaj birimi:50 adet
Z-series, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
-
Ürün No.:1768800000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, beige
-
Ürün No.:1706010000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1946240000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, yellow
-
Ürün No.:1946220000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, red
-
Ürün No.:1772080000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, orange
-
Ürün No.:1946230000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, white
-
Ürün No.:1706040000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
-
Ürün No.:1706070000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
-
Ürün No.:1706080000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, orange
-
Ürün No.:1706050000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, orange
-
Ürün No.:1772060000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1706060000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1772070000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
-
Ürün No.:1946210000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, black
-
Ürün No.:1131740000Ambalaj birimi:50 adet
PE terminal, Tension-clamp connection, 2.5 mm², 500 V, 300 A (2.5 mm²), Green/yellow
-
Ürün No.:1933760000Ambalaj birimi:50 adet
PE terminal, Tension-clamp connection, 2.5 mm², 300 A (2.5 mm²), Green/yellow
-
Ürün No.:1933780000Ambalaj birimi:50 adet
PE terminal, Tension-clamp connection, 2.5 mm², 300 A (2.5 mm²), Green/yellow
-
Ürün No.:1933770000Ambalaj birimi:50 adet
PE terminal, Tension-clamp connection, 2.5 mm², 300 A (2.5 mm²), Green/yellow
-
Ürün No.:1779120000Ambalaj birimi:50 adet
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 400 V, 10 A, Pivoting, blue
-
Ürün No.:1779130000Ambalaj birimi:50 adet
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 400 V, 10 A, Pivoting, orange
-
Ürün No.:1779010000Ambalaj birimi:50 adet
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 400 V, 10 A, Pivoting, dark beige
-
Ürün No.:1779020000Ambalaj birimi:50 adet
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 400 V, 10 A, Pivoting, dark beige
-
Ürün No.:1782300000Ambalaj birimi:50 adet
Multi-tier modular terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, dark beige
-
Ürün No.:1131750000Ambalaj birimi:50 adet
Multi-tier modular terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, dark beige
-
Ürün No.:1782330000Ambalaj birimi:25 adet
Multi-tier modular terminal, Tension-clamp connection, 2.5 mm², 400 V, 20 A, blue
-
Ürün No.:1782310000Ambalaj birimi:50 adet
Multi-tier modular terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, blue
-
Ürün No.:1782320000Ambalaj birimi:25 adet
Multi-tier modular terminal, Tension-clamp connection, 2.5 mm², 400 V, 20 A, dark beige
-
Ürün No.:1131760000Ambalaj birimi:50 adet
Multi-tier modular terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, dark beige
-
Ürün No.:1924510000Ambalaj birimi:50 adet
Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1216470000Ambalaj birimi:50 adet
Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1924500000Ambalaj birimi:50 adet
Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
-
Ürün No.:1924480000Ambalaj birimi:50 adet
Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
-
Ürün No.:1924490000Ambalaj birimi:50 adet
Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1924460000Ambalaj birimi:50 adet
Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1924470000Ambalaj birimi:50 adet
Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 300 A (2.5 mm²), Green/yellow
-
Ürün No.:1768000000Ambalaj birimi:25 adet
Motor-connection terminal, Tension-clamp connection, 2.5 mm², 400 V, dark beige
-
Ürün No.:1027550000Ambalaj birimi:25 adet
Motor-connection terminal, Tension-clamp connection, 2.5 mm², 690 V, dark beige
-
Ürün No.:1933730000Ambalaj birimi:50 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
-
Ürün No.:1933720000Ambalaj birimi:50 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1316880000Ambalaj birimi:50 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, orange
-
Ürün No.:1933700000Ambalaj birimi:50 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1933750000Ambalaj birimi:50 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
-
Ürün No.:1316890000Ambalaj birimi:50 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, orange
-
Ürün No.:1933740000Ambalaj birimi:50 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1933710000Ambalaj birimi:50 adet
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
-
Ürün No.:1779000000Ambalaj birimi:20 adet
Z-series, Component terminal, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
-
Ürün No.:1779110000Ambalaj birimi:20 adet
Z-series, Component terminal, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
-
Ürün No.:1706100000Ambalaj birimi:50 adet
Z-series, PE terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Green/yellow
-
Ürün No.:1706090000Ambalaj birimi:50 adet
Z-series, PE terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Green/yellow
-
Ürün No.:1772090000Ambalaj birimi:50 adet
Z-series, PE terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Green/yellow
-
Ürün No.:1938030000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1805940000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:2755880000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, yellow
-
Ürün No.:1895700000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1791030000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1791470000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1394040000Ambalaj birimi:50 adet
Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 22 A, beige
-
Ürün No.:1480270000Ambalaj birimi:50 adet
Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 22 A, blue
-
Ürün No.:1831260000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, orange
-
Ürün No.:1791000000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
-
Ürün No.:1938330000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, brown, dark beige
-
Ürün No.:1790990000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
-
Ürün No.:1938340000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, brown, dark beige
-
Ürün No.:1791040000Ambalaj birimi:50 adet
Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, blue
