Özellikler

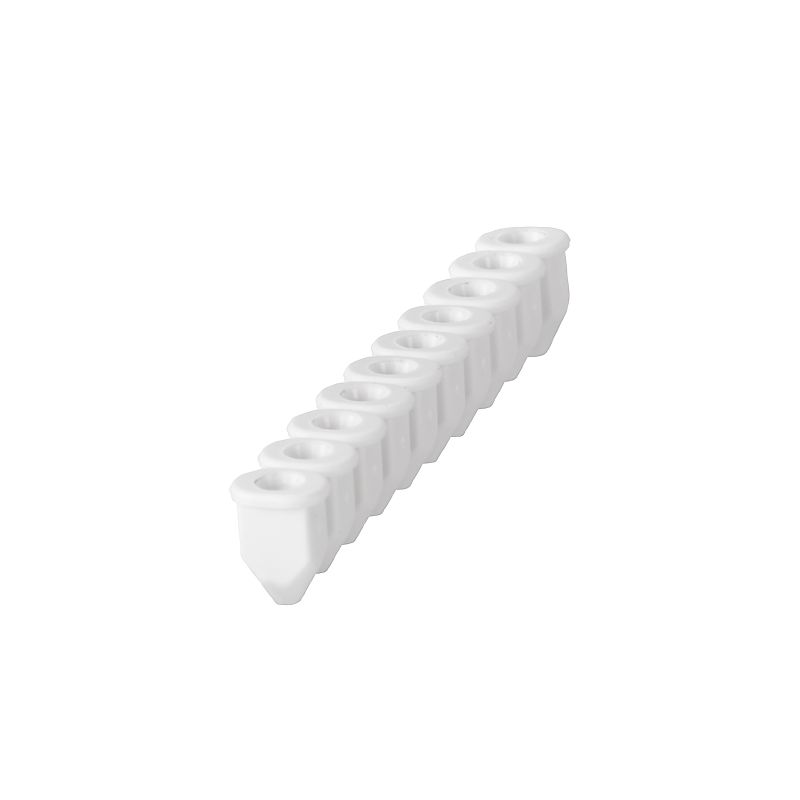

Version | Z-series, Reducing sleeve |
Order No. | 1636640000 |
Type | ZRH 4/1 WS |
GTIN (EAN) | 4008190272937 |
Qty. | 1.000 adet |
Depth | 9,4 mm |
Depth (inches) | 0,37 inch |
Height | 60,05 mm |
Height (inches) | 2,364 inch |
Width | 7,4 mm |
Width (inches) | 0,291 inch |
Net weight | 0,2 g |
Storage temperature | -25 °C...55 °C |
Continuous operating temp., min. | -50 |
Continuous operating temp., max. | 120 |
RoHS Compliance Status | Compliant without exemption |
REACH SVHC | No SVHC above 0.1 wt% |
Material | Wemid |
Colour | white |
UL 94 flammability rating | V-0 |
Version | For the terminals |
Explosion-tested version | No |
Installation advice | Direct mounting |
Type of fixing | Plugged |
Installation advice | Direct mounting |
Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_46541) |
Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1636640000) |
CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1636640000) |
User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
ETIM 6.0 | EC002848 |
ETIM 7.0 | EC002848 |
ETIM 8.0 | EC002848 |
ETIM 9.0 | EC002848 |
ECLASS 9.0 | 27-14-11-92 |
ECLASS 9.1 | 27-14-11-92 |
ECLASS 10.0 | 27-14-11-92 |
ECLASS 11.0 | 27-14-11-92 |
ECLASS 12.0 | 27-14-11-92 |
ECLASS 13.0 | 27-25-03-90 |
ECLASS 14.0 | 27-25-03-90 |
ROHS | Conform |
aksesuarıdır
-
Ürün No.:7904280000Ambalaj birimi:50 adet
PE terminal, Tension-clamp connection, 4 mm², 480 A (4 mm²), Green/yellow
-
Ürün No.:1632080000Ambalaj birimi:50 adet
PE terminal, Tension-clamp connection, 4 mm², 480 A (4 mm²), Green/yellow
-
Ürün No.:7904170000Ambalaj birimi:50 adet
PE terminal, Tension-clamp connection, 4 mm², 480 A (4 mm²), Green/yellow
-
Ürün No.:7904300000Ambalaj birimi:50 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, blue
-
Ürün No.:1683590000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, yellow
-
Ürün No.:1683620000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, brown
-
Ürün No.:7904290000Ambalaj birimi:50 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, dark beige
-
Ürün No.:1683630000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, grey
-
Ürün No.:1683650000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, black
-
Ürün No.:7904190000Ambalaj birimi:50 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, blue
-
Ürün No.:7904180000Ambalaj birimi:50 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, dark beige
-
Ürün No.:1683640000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, white
-
Ürün No.:1632050000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, dark beige
-
Ürün No.:1636830000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, orange
-
Ürün No.:1683580000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, red
-
Ürün No.:1632060000Ambalaj birimi:100 adet
Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, blue
-
Ürün No.:1770380000Ambalaj birimi:50 adet
Z-series, PE terminal, Rated cross-section: 4 mm², Tension-clamp connection, Green/yellow
-
Ürün No.:1770390000Ambalaj birimi:50 adet
Z-series, PE terminal, Rated cross-section: 4 mm², Tension-clamp connection, green
-
Ürün No.:1807090000Ambalaj birimi:50 adet
Z-series, PE terminal, Rated cross-section: 4 mm², Tension-clamp connection, Green/yellow
