KWN-M8/-4 90
KWN-M8/-4 90

KWN-M8/-4 90

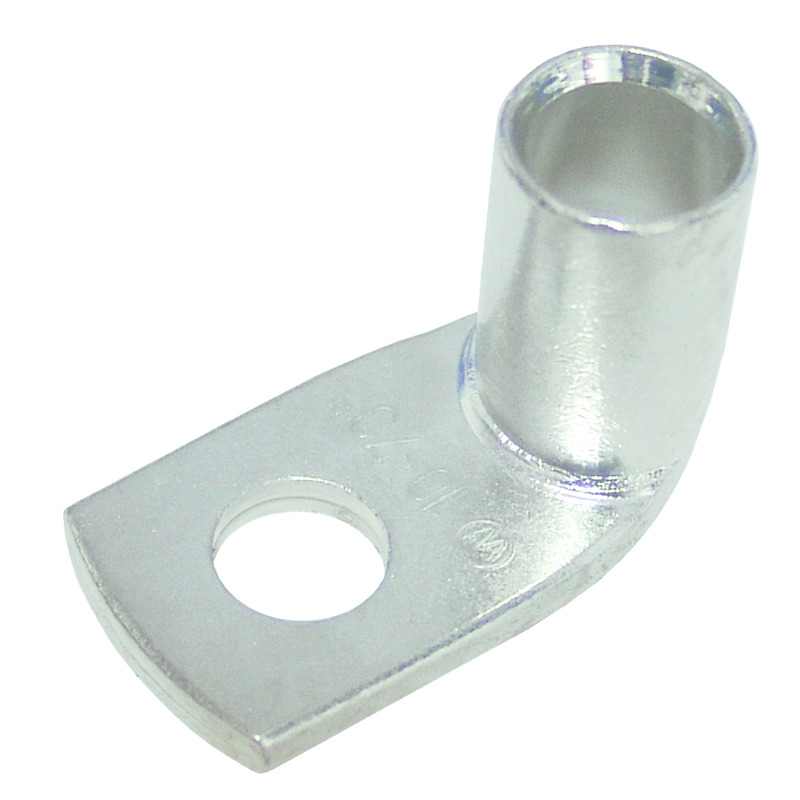

cable lug, terminal end,4 mm²,4 mm² - 4 mm²

Produkt ID 1495330000
Download datablad Product Downloads Engineering Support
Tilbehør 1 Er tilbehør til 1 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data Connectors Classifications

Approvals

ROHS
Conform

General ordering data

Version
cable lug, terminal end,4 mm²,4 mm² - 4 mm²
Order No.
1495330000
Type
KWN-M8/-4 90
GTIN (EAN)
4050118305128
Qty.
100  Styk

Dimensions and weights

Net weight
3  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data

Version
Euro series 90°

Connectors

Conductor cross-section
4  mm²
Conductor cross-section, max.
4  mm²
Conductor cross-section, min.
4  mm²
Connection length (I)
14,5  mm
Flange width (b)
14  mm
Hole
M8
Identification colour
None
Inside diameter of flange (d2)
8,4  mm
Inside diameter of shaft (d1)
3  mm
Insulation
not available
Outside diameter of shaft (d3)
5  mm
Shaft length (a)
7  mm

Classifications

ETIM 6.0
EC001051
ETIM 7.0
EC001051
ETIM 8.0
EC001051
ETIM 9.0
EC001051
ETIM 10.0
EC001051
ECLASS 9.0
27-40-02-05
ECLASS 9.1
27-40-02-05
ECLASS 10.0
27-40-02-05
ECLASS 11.0
27-40-02-05
ECLASS 12.0
27-40-02-05
ECLASS 13.0
27-40-02-05
ECLASS 14.0
27-40-02-05
ECLASS 15.0
27-40-02-05
