HDC HQM ALU   Item No. 1003050000

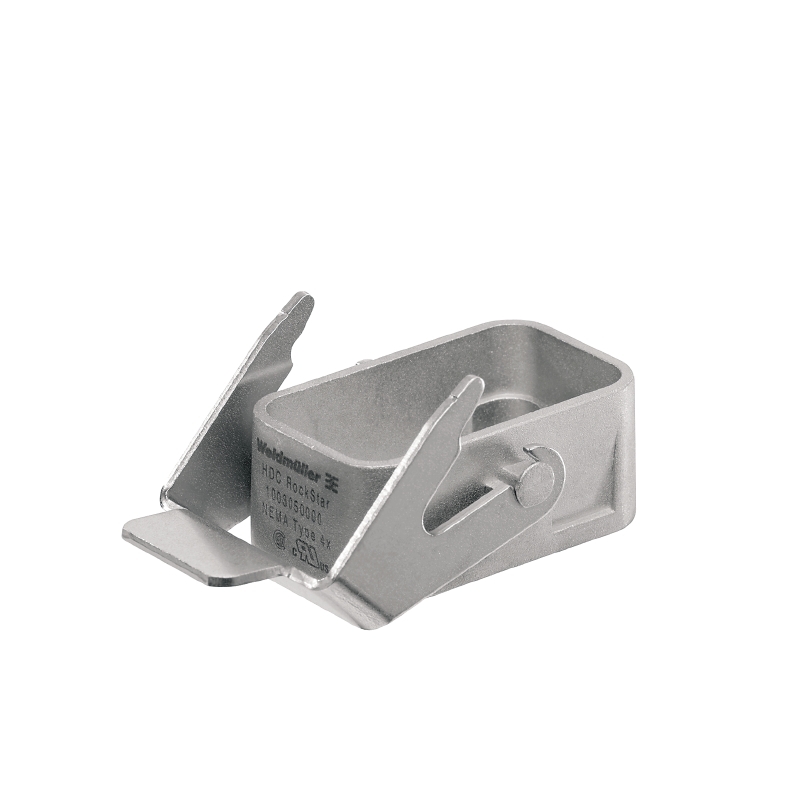

HDC enclosures, Size: HQ, Protection degree: IP65, Open base, Side-locking clamp on lower side, Standard

Please note that any possible discounts or additional costs are not yet applied here. The definitive payment amounts will be shown in the cart.

HDC HQM ALU HDC HQM ALU

Properties

Type HDC HQM ALU
Order No. 1003050000
Version HDC enclosures, Size: HQ, Protection degree: IP65, Open base, Side-locking clamp on lower side, Standard
GTIN (EAN) 4032248697984
Qty. 1 ST
Length 67.1 mm
Length (inches) 2.641727 inch
Width 35 mm
Width (inches) 1.37795 inch
Height 41.6 mm
Height (inches) 1.637792 inch
Mounting dimension - width 32.2 mm
Mounting dimension - height 13.4 mm
Net weight 62 g
Limit temperature -40 °C ... 125 °C
REACH SVHC DIBP 84-69-5
Height of housing B 20.5 mm
Hole pitch length A2 32.2 mm
Total length housing 46.3 mm
Width housing C 28.8 mm
EMC housings Yes
Housing main material Zinc diecast
Material of locking element Stainless steel, rust-proof
Protection degree IP65
Series HQ
Surface finish nickel-plated
Clamp version Side-locking clamp
Design Standard
Design of housing Open base
Design of locking system Side-locking clamp on lower side
Sealing NBR
Size HQ
Suitable for ModuPlug® No
Top part/bottom part/lid lower part
Type Bulkhead (feed-through)
Product family HDC enclosures
Product type Enclosures
Type Bulkhead (feed-through)
Size HQ
Protection degree IP65
Colour Silver grey
Descriptive text ordering data CS: with locking bow
Brochure/Catalogue [CAT 3 HDC 17/18 EN](http://download.weidmueller.com/asset/download/file/39468)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
Engineering Data [EPLAN, WSCAD](LINK/CAE_EN.html)
Engineering Data [STEP](http://download.weidmueller.com/asset/download/file/72745)
eClass 5.1 27-14-34-19
eClass 6.2 27-14-34-19
eClass 7.1 27-44-02-05
eClass 8.1 27-44-02-05
eClass 9.0 27-44-02-02
eClass 9.1 27-44-02-02
ETIM 3.0 EC000437
ETIM 4.0 EC000437
ETIM 5.0 EC000437
ETIM 6.0 EC000437
UNSPSC 30-21-18-01
Approvals ![EAC](/picture/EAC.gif)
ROHS Conform
UL File Number Search [E316369](LINK/UL_search.html)
