ACT20D-LCD-CI-ILP
Product image
ACT20D-LCD-CI-ILP
ACT20D-LCD-CI-ILP
Dimensioned drawing
ACT20D-LCD-CI-ILP

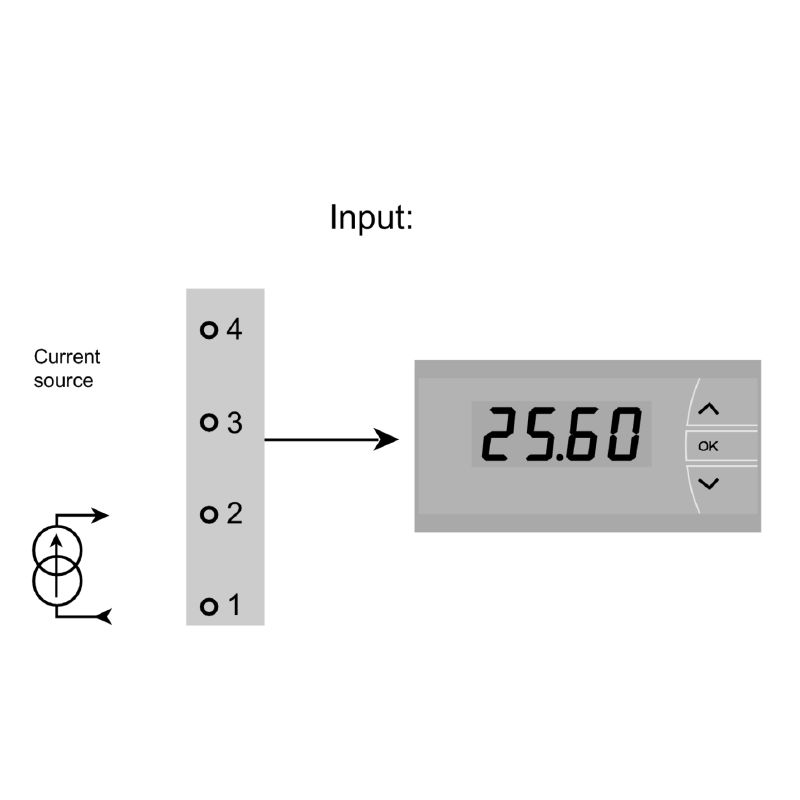

Wiring diagram
ACT20D-LCD-CI-ILP

ACT20D-LCD-CI-ILP

Display, Input : 4-20 mA, (loop powered), HART® transparency, Output : Display

Produkt ID 2920000000
Download datablad Mühendislik desteği Ürün İndirmleri
Tilbehør 1 Anvendte produkter 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Display General data Input Output Output (digital) Output (analogue) Insulation coordination Connection data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Display, Input : 4-20 mA, (loop powered), HART® transparency, Output : Display
Order No.
2920000000
Type
ACT20D-LCD-CI-ILP
GTIN (EAN)
4099986580336
Qty.
1 Styk

Dimensions and weights

Depth
120 mm
Depth (inches)
4,724 inch
Height
48 mm
Height (inches)
1,89 inch
Width
96 mm
Width (inches)
3,78 inch
Length
120 mm
Length (inches)
4,724 inch
Net weight
262 g

Temperatures

Storage temperature
-20 °C...60 °C
Operating temperature
-20 °C...60 °C
Humidity
0 ~ 95 %(응결 없음)

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
f4905d12-f516-4eb5-90a8-8c87685bc956

Display

Adjustment of display backlighting
0%
50%
100%
Decimal point
18888, 1.8888, 18.888, 188.88, 1888.8
Dimmable
Yes
Display range
-9999...9999
Display value
Current
Scaling
Variable
Type
4-character, LCD display, 16 mm

General data

IP65
Accuracy
<0.1 % of measuring range
Configuration
Front push-button
DIP switch to lock / unlock the front push-button
DIN Rail compatibility
No
HART® transparency supported
Yes
Step response time
≤1s
Supply voltage
Loop powered, via 4…20 mA input
Temperature coefficient
≤ 0.01 °C of measuring range / °C
Tolerance class
0.1
Type of connection
Tension clamp connection with actuator
Type of mounting
Frontpanel mounting
Front mounting

Input

HART® transparency supported
Yes
Input current
4…20mA
Input current, max.
23 mA
Input measurement range
3.6 … 23 mA (NAMUR NE43 conform)
Number inputs
1
Response time
≤ 1 s
Sensor
Current source
4- wire sensor (with own power supply)
Type of signal forwarding according to HART®
unchanged
Voltage drop, current input
without backlight <1.5 V @ 20 mA
half backlight <6.5 V @ 20 mA
full backlight <10.5 V @ 20 mA

Output

Number of channels
1
Type
active

Output (digital)

Number of digital outputs
0

Output (analogue)

Number analogue outputs
1

Insulation coordination

Tolerance class
0.1

Connection data

Wire connection method
Screw connection
Type of connection
Tension clamp connection with actuator
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross section, finely stranded, max.
2,08 mm²

Classifications

ETIM 8.0
EC002301
ETIM 9.0
EC002301
ETIM 10.0
EC002301
ECLASS 14.0
27-21-03-01
ECLASS 15.0
27-21-03-01
