ACT20D-LED-UI-AO-4RC-AC-DC
Product image
ACT20D-LED-UI-AO-4RC-AC-DC
ACT20D-LED-UI-AO-4RC-AC-DC
Dimensioned drawing
ACT20D-LED-UI-AO-4RC-AC-DC

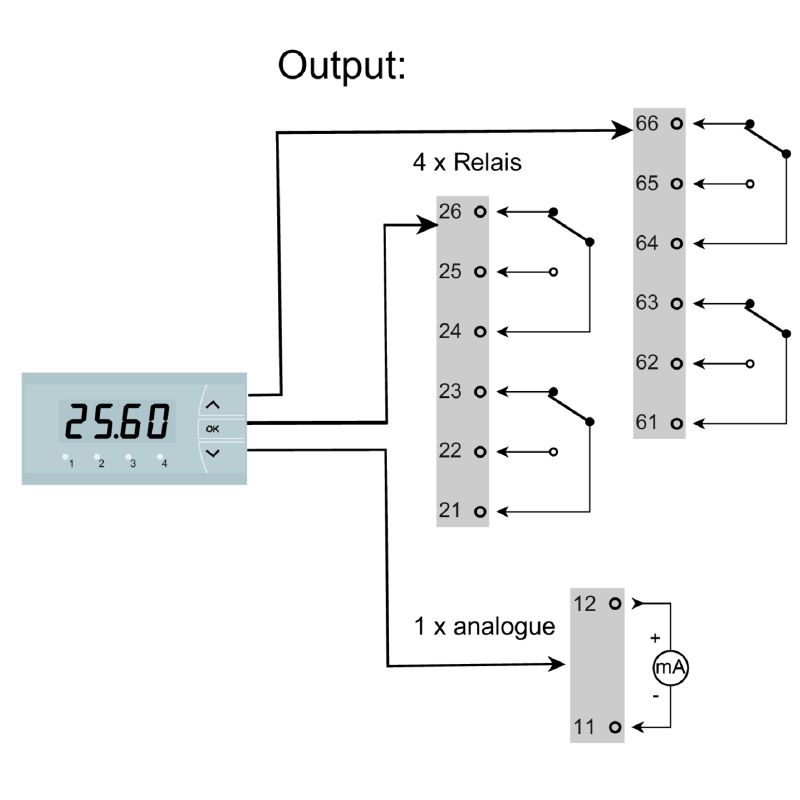

Wiring diagram
ACT20D-LED-UI-AO-4RC-AC-DC
Wiring diagram
ACT20D-LED-UI-AO-4RC-AC-DC
ACT20D-LED-UI-AO-4RC-AC-DC

ACT20D-LED-UI-AO-4RC-AC-DC

Display, Input : I/U universal, Temperature, Output : Display, analogue V / mA, 4 x Relay

Produkt ID 2920060000
Download datablad Engineering-support Produktdownloads
Tilbehør 1 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Display General data Input Output (digital) Output (analogue) Insulation coordination Connection data Part description Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Display, Input : I/U universal, Temperature, Output : Display, analogue V / mA, 4 x Relay
Order No.
2920060000
Type
ACT20D-LED-UI-AO-4RC-AC-DC
GTIN (EAN)
4099986580350
Qty.
1 Styk

Dimensions and weights

Depth
120 mm
Depth (inches)
4,724 inch
Height
48 mm
Height (inches)
1,89 inch
Width
96 mm
Width (inches)
3,78 inch
Length
120 mm
Length (inches)
4,724 inch
Net weight
315 g

Temperatures

Operating temperature
-20 °C...60 °C
Humidity
5…95 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
Výjimka ze směrnice RoHS (je-li použitelné/známo)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
f4905d12-f516-4eb5-90a8-8c87685bc956

Display

Cycle time
2.2 times / s
Dimmable
Yes
Formátum
14 segment (numbers + letters)
Scrolling text in 8 languages in case of error (e.g. sensor wire breakage, input overrange…)
Gama de indicación
-1999...9999
Skalning
Variable
Tipo
red LED
4-character display
Digit size: 13.8 mm
Valeur d'affichage
current measured value
Percentage or real value display
Switching status
Десятичные точки
18888, 1.8888, 18.888, 188.88, 1888.8

General data

DIN Rail compatibility
No
Power consumption
≤ 3.5 W
Protection degree
IP65
Supply voltage
21.6...253 VAC, (50...60 Hz) or 19.2...300 VDC
Temperature coefficient
≤0,01% of measurement range⁄°C
Tolerance class
0.1
Type of connection
Tension clamp connection with actuator
Type of mounting
Frontpanel mounting
Front mounting
配置
Front push-button

Input

Input current
0...20 mA
4...20 mA
Input current, max.
20 mA
Input resistance
20 Ω
Input resistance, voltage
> 10 MΩ
Input voltage
0…1 V DC
0,2…1 V DC
0...10 V DC
2…10 V DC
Line resistance in measuring circuit
50 Ω
Number inputs
1
Potentiometer
10 Ω…10 kΩ
Response time
configurable 0.4...60 s (mA / V input)
configurable 1...60 s (temperature input)
Sensor supply
> 15 V DC at 20 mA
Temperature input range
E: (-100…+1000 °C)
J: (-100…+1200 °C)
W5: (0…+2300 °C)
LR: (-200…+800 °C)
PT100 / 200 / 1000: -200 °C…+850 °C
K: (-180…+1372 °C)
L: (-200…+900 °C)
N: -180…+1300 °C
R: (-50…+1760 °C)
S: (-50…+1760 °C)
T: (-200…+400 °C)
U: (-200…+600 °C)
W3: (0…+2300 °C)
Type
'active','connected control must be passive'
传感器
2-wire transmitter (without own power supply)
4- wire sensor (with own power supply)
RTD (2,3-wire): Pt100, Pt200, Pt1000, Ni120, Cu10
Thermocouples: B / C / E / J / K / L / N / R / S / T / W3 / W5
Resistance measurement
Potentiometer: 10 Ω…10 kΩ
冷端补偿
internal

Output (digital)

Funkce alarmu
Under voltage
Over voltage
Under-current
Surge current
Surge voltage
Under-temperature
Over-temperature
Sensor error
Hysteresis
0...100 %
Max. spínací napětí, AC
250 V
Max. spínací napětí, DC
30 V
Odložení vypnutí
0...3600 s
Odložení zapnutí
0...3600 s
Počet digitálních výstupů
4
Rated switching current
2 A
Rated switching voltage
24...250 V AC
Schaltschwellen
10...100% of %*UN
Spínací výkon
500 VA
Typ
4 x 1 CO contact (hard gold-plated)
Typ spínací funkce
direct or inverted

Output (analogue)

Load resistance current
≤ 800 Ω
Number analogue outputs
1
Output behaviour on failure downscale
3,5 mA
Output behaviour on failure upscale
23 mA
Signal output
direct or inverted
Type (analogue output)
'active','connected control must be passive'

Insulation coordination

EMC standards
EN 61326-1
Galvanic isolation
between input ⁄ output ⁄ supply ⁄ relay
Insulation voltage
2.3 kVAC (Test) / 250 VAC (operating state)
Pollution severity
2
Tolerance class
0.1

Connection data

Wire connection method
Clamping yoke
pluggable
Type of connection
Tension clamp connection with actuator
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross section, finely stranded, max.
2,8 mm²

Part description

Descripción del producto
The device is a built-in device used to digitally display process values such as current, voltage, resistance, temperature and potentiometer signals in real-time. The device is designed for switch panel installation in a visible area. The device may only be used indoors.

Classifications

ETIM 8.0
EC002301
ETIM 9.0
EC002301
ETIM 10.0
EC002301
ECLASS 14.0
27-21-03-01
ECLASS 15.0
27-21-03-01
