BL 3.50/16/90 SN OR BX

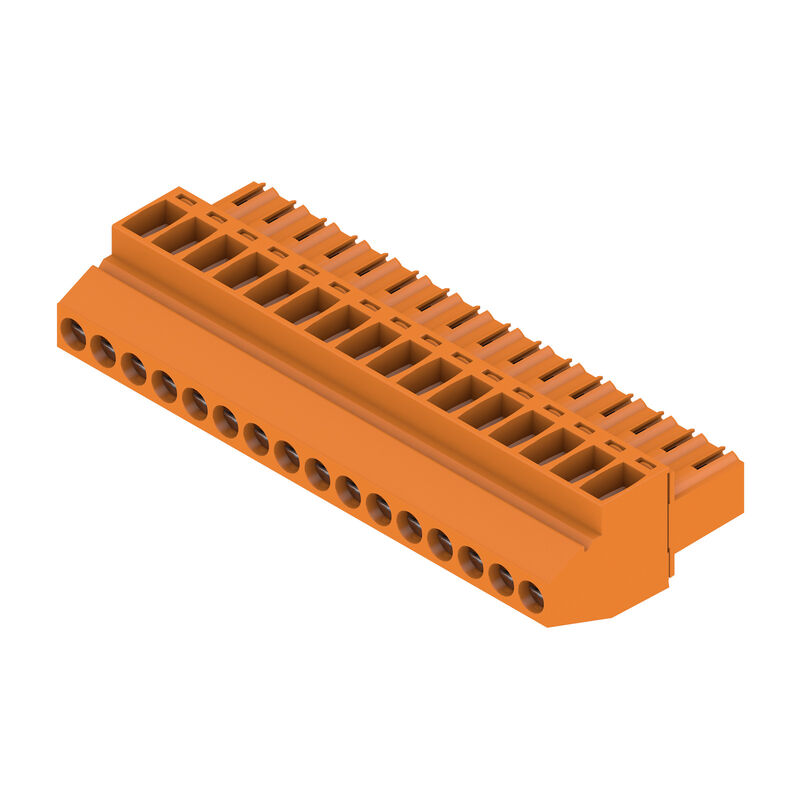

Product image
BL 3.50/16/90 SN OR BX
Product image
BL 3.50/16/90 SN OR BX
Dimensional drawing
BL 3.50/16/90 SN OR BX
Graph
BL 3.50/16/90 SN OR BX
Graph

BL 3.50/16/90 SN OR BX

PCB 플러그인 커넥터, 암형 플러그, 3.50 mm, 극 수: 16, 90°, 클램프 요크 결선, 클램프 범위, 최대 : 1.5 mm², 박스

Produkt ID 1638690000
Download datablad Engineering Support Product Downloads
Tilbehør 2 Modstykker 10 Anvendte produkter 38
Homologaciones 일반 주문 데이터 Dimensions and weights Conformité environnementale du produit System Parameters Dati del materiale Conductores aptos para conexión Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Embalaje Type tests Important note Classifications

Homologaciones

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Сертификат № (UR)
E60693

일반 주문 데이터

버전
PCB 플러그인 커넥터, 암형 플러그, 3.50 mm, 극 수: 16, 90°, 클램프 요크 결선, 클램프 범위, 최대 : 1.5 mm², 박스
Заказ №
1638690000
유형
BL 3.50/16/90 SN OR BX
GTIN (EAN)
4008190276249
Förp.
30 Styk
Product data
IEC: 320 V / 12 A / 0.2 - 1.5 mm²
UL: 300 V / 8 A / AWG 28 - AWG 14
Packaging
Box

Dimensions and weights

Profondità
22,45 mm
Hloubka (v palcích)
0,884 inch
Wysokość
12 mm
Height (inches)
0,472 inch
너비
56 mm
Width (inches)
2,205 inch
Čistá hmotnost
15,6 g

Conformité environnementale du produit

RoHS 준수 상태
Megfelel, kivétel nélkül
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,649 kg CO2 eq.

System Parameters

Product family
OMNIMATE Signal - series BL/SL 3.50
Type of connection
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
3,5 mm
Rozteč v palcích (P)
0,138 "
Conductor outlet direction
90°
Number of poles
16
L1 en mm
52,5 mm
L1 in inches
2,067 "
Número de series
1
Pin series quantity
1
Rated cross-section
1,5 mm²
Ochrana bezpečná proti dotyku dle normy DIN VDE 57 106
Safe from finger touch
Ochrana bezpečná proti dotyku dle normy DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
when fully mounted
Objemový odpor
≤5 mΩ
Can be coded
Yes
Délka odizolování
6 mm
Clamping screw
M 2
Screwdriver blade
0.4 x 2.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
7 N
Pulling force/pole, max.
5 N
Tightening torque
  • Torque type:
    Wire connection
  • Usage information:
    • Tightening torque:
      • min.:
        0,2 Nm
      • max.:
        0,25 Nm

Dati del materiale

绝缘材料
PBT
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of plug contact
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Conductores aptos para conexión

Clamping range, min.
0,08 mm²
Clamping range, max.
1,5 mm²
Wire connection cross section AWG, min.
AWG 28
Поперечное сечение подключаемого провода AWG, макс.
AWG 14
Solid, min. H05(07) V-U
0,2 mm²
rigido, max. H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1,5 mm²
s vodičem a dutinkou, DIN 46228 pt 1, min.
0,2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5 mm²
Zasuňte měřič v souladu s EN 60999 a x b; ø
2.4 mm x 1.5 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409500000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409600000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409700000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025740000
    • Stripping length:
      • nominal:
        5 mm
    • Recommended wire-end ferrule:
      9018910000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025750000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
12 A
Rated current, max. number of poles (Tu=20°C)
10 A
Rated current, min. number of poles (Tu=40°C)
10 A
Rated current, max. number of poles (Tu=40°C)
8 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5 kV
Jmenovité impulzní napětí pro třídu přepětí / stupeň znečištění III/2
2,5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2,5 kV
Short-time withstand current resistance
3 x 1s with 100 A

Rated data acc. to CSA

Institut (CSA)
CSA
Č. osvědčení (CSA)
154685-1318353
Jmenovité napětí (aplikační skupina B / CSA)
300 V
Jmenovité napětí (aplikační skupina D / CSA)
300 V
Jmenovitý proud (aplikační skupina B / CSA)
10 A
Rated current (Use group D / CSA)
10 A
Průřez vodiče AWG, min.
AWG 28
Průřez vodiče AWG, max.
AWG 14
Referencia para valores de homologación
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
8 A
Jmenovitý proud (aplikační skupina D / UL 1059)
8 A
Průřez vodiče, AWG, min.
AWG 28
Wire cross-section, AWG, max.
AWG 14
Referencia para valores de homologación
Specifications are maximum values, details - see approval certificate.

Embalaje

Balení
Caja
Délka VPE
348 mm
Šířka VPE
139 mm
Výška VPE
31 mm

Type tests

Test: Trvanlivost značení
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, approval marking SEV, approval marking CSA
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Nezapojení (není vyměnitelnost)
  • Standard:
    DIN EN 61984 section 6.3 and 6.9.1 / 09.02, DIN IEC 60512 part 7 section 5 / 05.94
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
Test: průřez připojitelný svorkami
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.99
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.2 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.2 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test poškození a náhodného uvolnění vodičů
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      2 × AWG 24/1
    • Type of conductor and conductor cross-section:
      2 × AWG 24/19 with wire end ferrule
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/7
  • Evaluation:
    passed
Test vytažení
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥5 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      2 × AWG 24/1
    • Type of conductor and conductor cross-section:
      2 × AWG 24/19 with wire end ferrule
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U1.5
    • Type of conductor and conductor cross-section:
      H05V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/7
  • Evaluation:
    passed

Important note

Zgodność IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Max. outer diameter of the conductor: 2.9 mm
  • Max. outer diameter of the conductor: 2.9 mm
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
