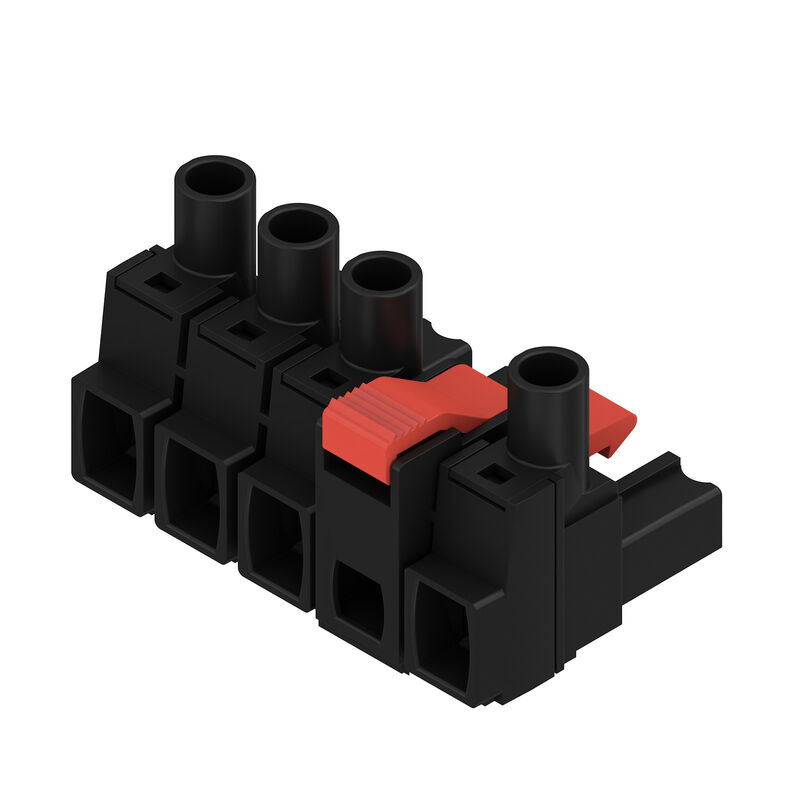

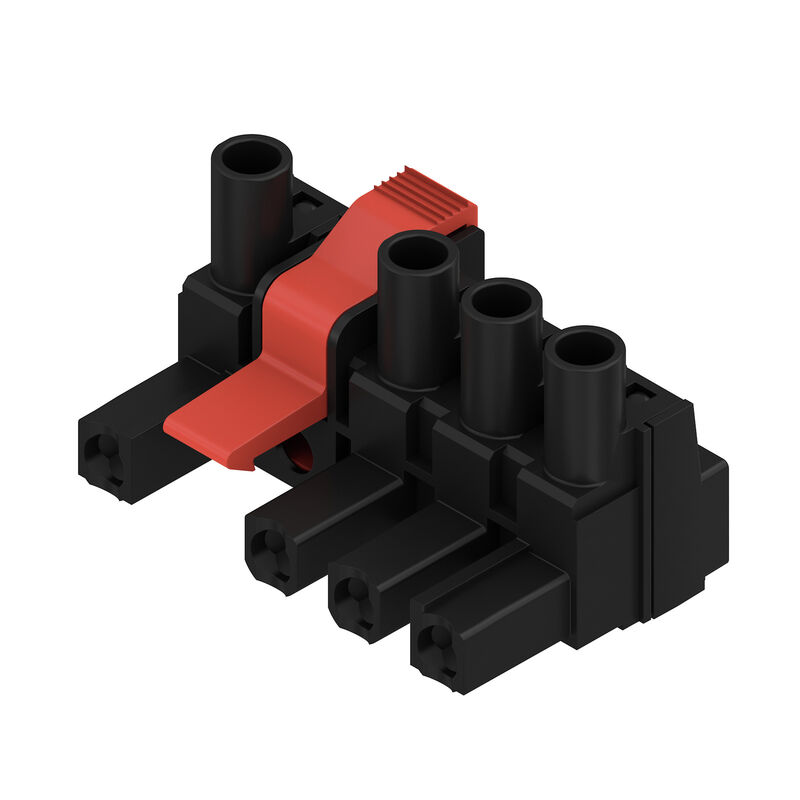

PCB plug-in connector, female plug, 7.62 mm, Number of poles: 4, 180°, Clamping yoke connection, Clamping range, max. : 4 mm², Box

Ürün No. 1173530000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 3 Karşı parçalar 1 İlgili ürünler 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Utförande
PCB plug-in connector, female plug, 7.62 mm, Number of poles: 4, 180°, Clamping yoke connection, Clamping range, max. : 4 mm², Box
Art.nr.
1173530000
Typ
BLZ 7.62IT/04/180MF4 SN BK BX
GTIN (EAN)
4032248966066
Qty.
40 adet
Product data
IEC: 630 V / 29 A / 0.08 - 4 mm²
UL: 600 V / 20 A / AWG 20 - AWG 12
Packaging
Box

Dimensions and weights

Djup
23,4 mm
Depth (inches)
0,921 inch
Höjd
21,2 mm
Height (inches)
0,835 inch
Bredd
38,1 mm
Width (inches)
1,5 inch
Net weight
9,197 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.199 kg CO2 eq.

System Parameters

Produktfamilj
OMNIMATE Power - series BL/SL 7.62IT
Anslutningstyp
Field connection
Ledaranslutningsteknik
Clamping yoke connection
Delning i mm (P)
7,62 mm
Delning i tum (P)
0,3 "
Ledarutgångsriktning
180°
Antal poler
4
L1 в мм
30,48 mm
L1 в дюймах
1,2 "
Antal rader
1
Polradstal
1
Märkarea
2,5 mm²
Beröringsskydd enligt DIN VDE 57
Safe from finger touch
Beröringsskydd enligt DIN VDE 0470
IP 20
Protection degree
IP20
when fully mounted
Genomgångsmotstånd (6)
5.00 mΩ
Кодируемый
Yes
Stripping length
7 mm
Tightening torque, min.
0,4 Nm
Tightening torque, max.
0,5 Nm
Clamping screw
M 2.5
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
9,5 N
Pulling force/pole, max.
8,5 N

Material data

Insulating material
PBT
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
Insulation resistance
≥ 10⁸ Ω
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of plug contact
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Clamping range, min.
0,08 mm²
Clamping range, max.
4 mm²
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section AWG, max.
AWG 12
Solid, min. H05(07) V-U
0,08 mm²
Solid, max. H05(07) V-U
4 mm²
Flexible, min. H05(07) V-K
0,08 mm²
Flexible, max. H05(07) V-K
4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
Plug gauge in accordance with EN 60999 a x b; ø
2.8 mm x 2.4 mm
Clampable conductor
  • Cross-section for conductor connection:
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025760000
  • Cross-section for conductor connection:
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025770000
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
  • Cross-section for conductor connection:
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0372700000
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0373000000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
29 A
Rated current, max. number of poles (Tu=20°C)
26,5 A
Rated current, min. number of poles (Tu=40°C)
25 A
Rated current, max. number of poles (Tu=40°C)
23 A
Rated voltage for surge voltage class / pollution degree II/2
630 V
Rated voltage for surge voltage class / pollution degree III/2
500 V
Rated voltage for surge voltage class / pollution degree III/3
400 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV
Short-time withstand current resistance
3 x 1s with 180 A
Clearance, min.
9,8 mm
Creepage distance, min.
11,3 mm

Rated data acc. to CSA

Institut (CSA)
CSA
Certifikat nr. (CSA)
200039-1121690
Märkspänning (användargrupp B / CSA)
600 V
Märkspänning (användargrupp C / CSA)
600 V
Märkspänning (användargrupp D / CSA)
600 V
Märkström (användargrupp B / CSA)
20 A
Märkström (användargrupp C / CSA)
20 A
Märkström (användargrupp D / CSA)
5 A
Ledardiameter AWG, min.
AWG 20
Ledardiameter AWG, max.
AWG 12
Hänvisning till godkännandevärden
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Сертификат № (cURus)
E60693
Номинальное напряжение (группа использования B/UL 1059)
600 V
Märkspänning (användargrupp C / UL 1059)
600 V
Märkspänning (användargrupp D / UL 1059)
600 V
Märkström (användargrupp B / UL 1059)
20 A
Märkström (användargrupp C / UL 1059)
20 A
Märkström (användargrupp D / UL 1059)
5 A
Ledardiameter AWG, min.
AWG 20
Поперечное сечение подключаемого провода AWG, макс.
AWG 12
Hänvisning till godkännandevärden
Specifications are maximum values, details - see approval certificate.

Packing

Förpackning
Box
VPE-längd
348 mm
VPE-bredd
139 mm
VPE-höjd
31 mm

Type tests

Test: Hållfasthet för märkningar
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, pitch, type of material, date clock
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Felaktig inkoppling (ingen utbytbarhet)
  • Standard:
    DIN EN 61984 section 6.3 and 6.9.1 / 09.02, DIN EN 60512-13-5 / 11.06
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    180° turned without coding elements
  • Evaluation:
    passed
Test: Klämbar area
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
    • Type of conductor and conductor cross-section:
      solid 2.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 2.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 20/1
    • Type of conductor and conductor cross-section:
      AWG 20/19
    • Type of conductor and conductor cross-section:
      AWG 12/1
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed
Test beträffande ledare som skadats och lossnat oavsiktligt
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    0.7 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
  • Requirement:
    0.9 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U4.0
    • Type of conductor and conductor cross-section:
      H07V-K4.0
  • Evaluation:
    passed
Frånslagstest
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥5 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥50 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
    • Type of conductor and conductor cross-section:
      H07V-K4.0
  • Evaluation:
    passed
  • Requirement:
    ≥60 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U4.0
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
