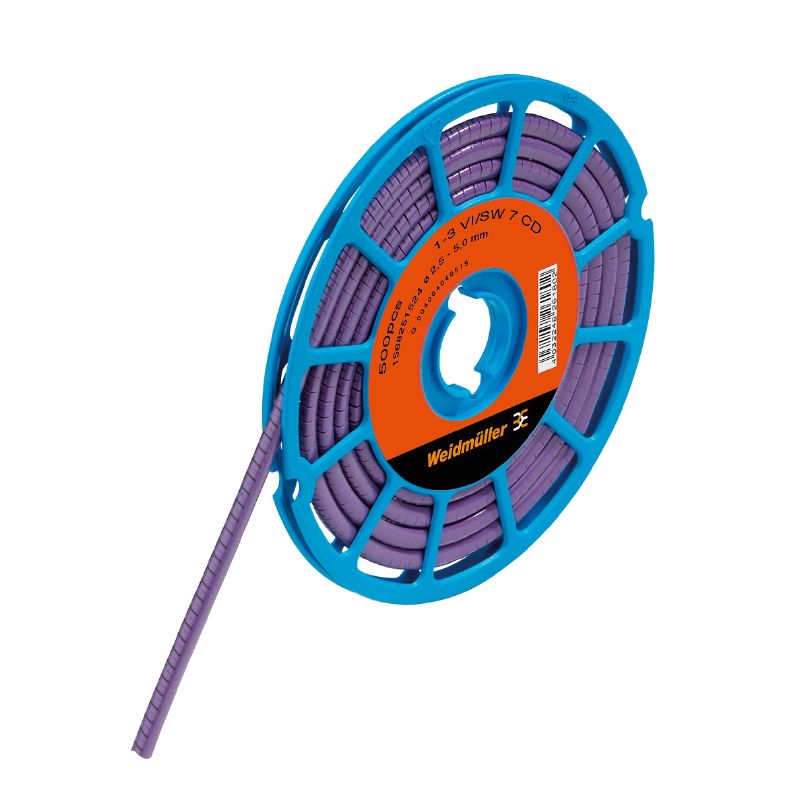

CableLine, Conductor and cable markers, 2.5 - 5 mm, 3 x 4.2 mm, violet

Item No. 1568251524
Download data sheet Product Downloads Engineering Support
Related products 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
CableLine, Conductor and cable markers, 2.5 - 5 mm, 3 x 4.2 mm, violet
Order No.
1568251524
Type
CLI C 1-3 VI/WS 7 CD
GTIN (EAN)
4032248261963
Qty.
500  items

Dimensions and weights

Depth
5  mm
Depth (inches)
0.197  inch
Height
3  mm
Height (inches)
0.118  inch
Width
4.2  mm
Width (inches)
0.165  inch
Net weight
0.076  g

Temperatures

Operating temperature range
-30...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
PVC, soft, without Cadmium
Colour
violet
Colour of printing
white
Halogen
Yes
Imprint
7
Material colour according to resistance code
7
Number of markers per combination
1 Reel = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    Reel
Operating temperature range
-30...80 °C
Operating temperature range, max.
80  °C
Operating temperature range, min.
-30  °C
Orientation of print
horizontal
Printed characters
Numbers
Printing method
hot-embossing
Recommended industries
Process
Machinery
Type of printing
Standard
UL 94 flammability rating
V-0
Version
CD
Width
4.2  mm

Conductor and cable markers

Conductor cross-section, max.
4  mm²
Conductor cross-section, min.
1.5  mm²
Conductor O.D.
2.5 - 5 mm
Conductor O.D., max.
5  mm
Conductor O.D., min.
2.5  mm
Cross-section for connected wire
1.5 - 4 mm²
Halogen
Yes

Classifications

ETIM 6.0
EC001530
ETIM 7.0
EC001530
ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 9.0
27-40-04-01
ECLASS 9.1
27-40-04-01
ECLASS 10.0
27-40-04-01
ECLASS 11.0
27-28-11-02
ECLASS 12.0
27-28-11-02
ECLASS 13.0
27-28-11-02
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
