DRMKIT 24VAC 2CO LD/PB
Product image
Similar to illustration
DRMKIT 24VAC 2CO LD/PB

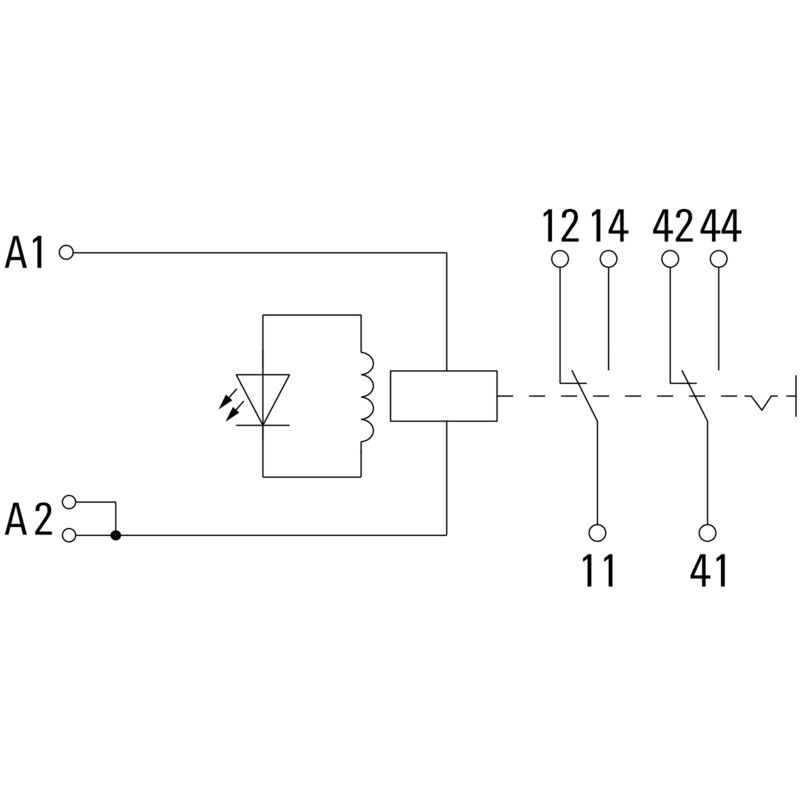

Wiring diagram
DRMKIT 24VAC 2CO LD/PB
Graph
DC load limit curve
Resistive load
DRMKIT 24VAC 2CO LD/PB
Graph
Electrical service life
DRMKIT 24VAC 2CO LD/PB
Graph
Derating curve
DRMKIT 24VAC 2CO LD/PB
Graph
AC operational voltage range
DRMKIT 24VAC 2CO LD/PB
Dimensional drawing
DRMKIT 24VAC 2CO LD/PB
Miscellaneous
Type codes

DRMKIT 24VAC 2CO LD/PB

D-SERIES DRM, Relay module, Number of contacts: 2, CO contact AgNi flash gold-plated, Rated control voltage: 24 V AC, Continuous current: 10 A, Screw connection, Test button available: Yes

Produkt ID 1542480000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 13 Enkeltdele 3 Anvendte produkter 8
Omologazioni 일반 주문 데이터 Dimensioni e pesi 온도 Conformità ambientale del prodotto 제어 측 Belastningssida Dane ogólne Isolationskoordinater Further details of approvals / standards 결선 데이터 Classifications

Omologazioni

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

일반 주문 데이터

Versión
D-SERIES DRM, Relay module, Number of contacts: 2, CO contact AgNi flash gold-plated, Rated control voltage: 24 V AC, Continuous current: 10 A, Screw connection, Test button available: Yes
Código
1542480000
Tipo
DRMKIT 24VAC 2CO LD/PB
GTIN (EAN)
4050118347418
Qty.
10 Styk

Dimensioni e pesi

Profundidad
66,8 mm
Depth (inches)
2,63 inch
Altura
79,9 mm
Bygghöjd (tum)
3,146 inch
Anchura
27,2 mm
Width (inches)
1,071 inch
Net weight
80,08 g

온도

Temperatura de almacenamiento
-40 °C...70 °C
Temperatura ambiente
-40 °C…55 °C

Conformità ambientale del prodotto

Estado de cumplimiento de la directiva RoHS
Conforme senza esenzione
REACH SVHC
No SVHC above 0.1 wt%

제어 측

Rated control voltage
24 V AC
Rated current AC
62.4 mA (50 Hz)
52.2 mA (60 Hz)
Power rating
1.0...1.2VA (60HZ)
Coil resistance
160 Ω ± 10 %
Status indicator
red LED

Belastningssida

Rated switching voltage
250 V AC
Continuous current
10 A
Max. switching frequency at rated load
0,1 Hz
Max. switching voltage, AC
250 V
Min. switching power
10 mA @ 12 V
100 mA @ 5 V
Inrush current
20 A / 50 ms
AC switching capacity (resistive), max.
2500 VA
DC switching capacity (resistive), max.
240 W @ 24 V
Switch-on delay
<20 ms
Switch-off delay
<20 ms
Contact type
2 CO contact (AgNi flash gold-plated)
Mechanical service life
20 x 106 switching cycles

Dane ogólne

Mounting rail
TS 35
Test button available
Yes
Version of test button
Lockable test button
Momentary test button
Mechanical switch position indicator
Yes
Colour
black
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-2
  • Component:
    Mounting foot
  • UL94 flammability rating:
    HB
  • Component:
    Retaining clip
  • UL94 flammability rating:
    HB
  • Component:
    Relay cover
  • UL94 flammability rating:
    V-2
  • Component:
    Relay baseplate
  • UL94 flammability rating:
    V-0
  • Component:
    Relay status indicator
  • UL94 flammability rating:
    HB
  • Component:
    Relay test button
  • UL94 flammability rating:
    HB

Isolationskoordinater

Tensión nominal
250 V
Grado de polución
2
Surge voltage category
III
Insulating material group
C
Clearance and creepage distances for control side - load side
≥ 5.5 mm
Dielectric strength for control side - load side
1.8 kVeff /1 min.
Dielectric strength of neighbouring contacts
1 kVeff / 1 min
Dielectric strength of open contact
1 kVeff / 1 min
Impulse withstand voltage
4.8 kV (1.2/50 µs)
Protection degree
IP20

Further details of approvals / standards

Certificate no. (cURus) relay
E312083
Certificate no. (cURus) base
E312083

결선 데이터

Técnica de conexión de conductores
스크류 결선
Longitud de desaislado, conexión nominal
7 mm
Par de apriete, min.
0,5 Nm
Tightening torque, max.
0,7 Nm
Clamping range, min.
0,5 mm²
Clamping range, max.
2,5 mm²
Wire cross-section, solid, min.
0,5 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
2,5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.
0,5 mm²
Wire cross-section, finely stranded, two clampable wires, max.
1 mm²
Blade size
size PH1

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
