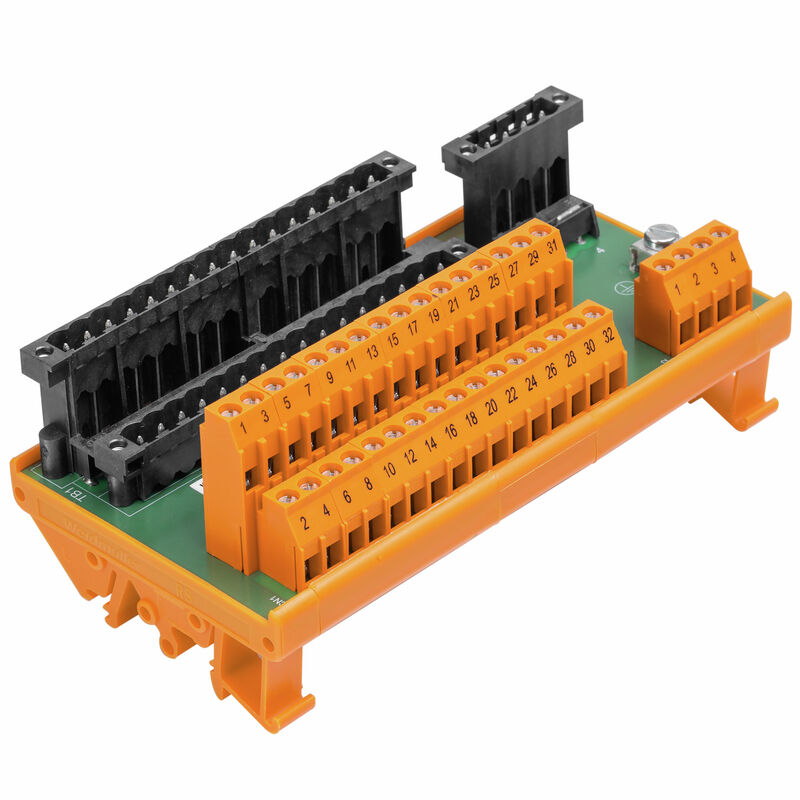

FTA-C300-16AI-SH-S
FTA-C300-16AI-SH-S

FTA-C300-16AI-SH-S

Interface, RS, 1-wire, Screw connection

Ürün No. 1247120000
Veri sayfasını indir Product Downloads
İlgili ürünler 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL General data Connection data Ratings data Insulation coordination (EN50178) Connection field Supply connection Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E141197

General ordering data

Version
Interface, RS, 1-wire, Screw connection
Order No.
1247120000
Type
FTA-C300-16AI-SH-S
GTIN (EAN)
4050118035377
Qty.
1  adet

Dimensions and weights

Depth
56  mm
Depth (inches)
2,205  inch
Height
70  mm
Height (inches)
2,756  inch
Width
135  mm
Width (inches)
5,315  inch
Net weight
194  g

Temperatures

Storage temperature
-40...60 °C
Operating temperature
-25...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
2e4a427f-c282-4ebf-8ee2-8af7c9348f4e

Rated data UL

Operating temperature UL, max.
50  °C
Operating temperature UL, min.
-25  °C
Rated current IN
1  A
Rated voltage UN
250V AC / 350 V DC

General data

LED status display per channel
No
Disconnection per channel
No
Voltage point of measurement
No
Current-measuring testpoint
No
Type of test point
No
Contactor
No
Fuse per channel
No
LED status of the supply voltage
No
Power supply fuse
No

Connection data

Connection (field side)
LP2N 5.08mm
Connection on control side
SLDV-THR 5.08
Number of poles (control side)
32-pole female
Protective earth connection
M4 round terminal
Wiring system
1-wire

Ratings data

Operating voltage
250 V AC / 350 V DC
Max. current per channel
1  A

Insulation coordination (EN50178)

According to
DIN EN 50178
Rated insulation voltage
<250 V AC
Surge voltage category
II
Pollution severity level
2
Pulse voltage test (1,2/50μs)
2  kV
Insulation test voltage AC
1,2  kV

Connection field

Clamping range, max.
6  mm²
Clamping range, min.
0,13  mm²
Flexible with sleeve, max.
2,5  mm²
Flexible with sleeve, min.
0,5  mm²
Flexible, max. H05(07) V-K
4  mm²
Flexible, min. H05(07) V-K
0,5  mm²
Max. wire cross-section, AWG
AWG 12
Min. wire cross-section, AWG
AWG 26
Sleeve with plastic collar, max.
2,5  mm²
Solid, max. H05(07) V-U
6  mm²
Solid, min. H05(07) V-U
0,5  mm²
Stripping length
6  mm
Tightening torque, max.
0,6  Nm
Tightening torque, min.
0,5  Nm
Type of connection
Screw connection

Supply connection

Type of connection
Screw connection
Clamping range, min.
0,13  mm²
Clamping range, max.
6  mm²
Solid, min. H05(07) V-U
0,5  mm²
Solid, max. H05(07) V-U
6  mm²
Flexible, min. H05(07) V-K
0,5  mm²
Flexible, max. H05(07) V-K
4  mm²
Flexible with sleeve, max.
2,5  mm²
Flexible with sleeve, min.
2,5  mm²
Ferrule with plastic collar, max.
0,5  mm²
Wire cross-section, min. AWG
AWG 12
Wire cross-section, max. AWG
AWG 26
Tightening torque, min.
0,5  Nm
Tightening torque, max.
0,6  Nm
Stripping length
6  mm

Classifications

ETIM 6.0
EC002780
ETIM 7.0
EC002780
ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 9.0
27-14-11-52
ECLASS 9.1
27-14-11-52
ECLASS 10.0
27-14-11-52
ECLASS 11.0
27-14-11-52
ECLASS 12.0
27-14-11-52
ECLASS 13.0
27-14-11-52
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
