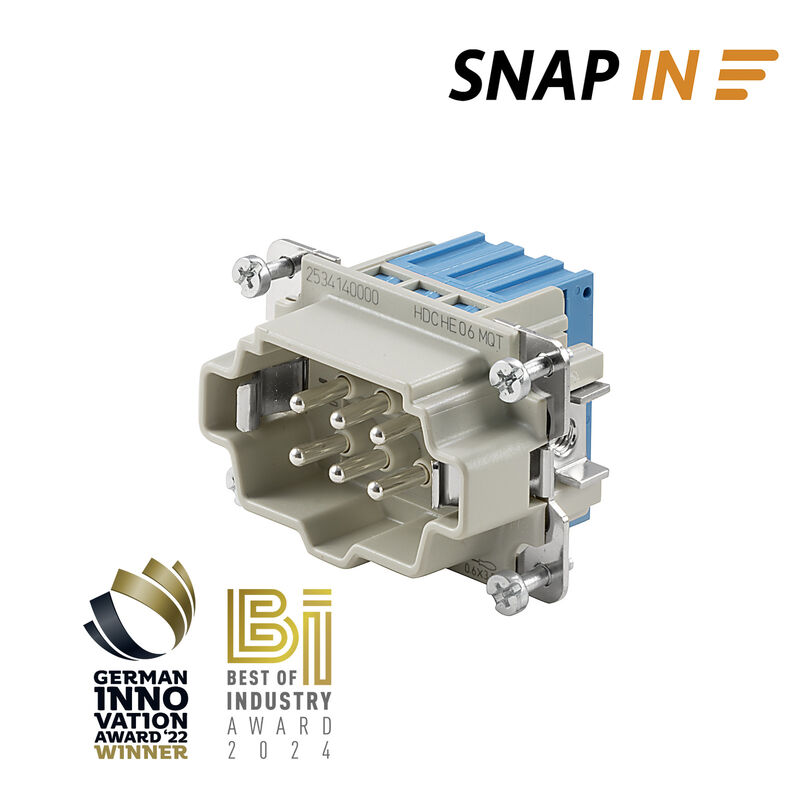

HDC HE 06 N MQT BL
HDC HE 06 N MQT BL

HDC HE 06 N MQT BL

HDC insert, Male, 500 V, 24 A, Number of poles: 6, SNAP IN, Installation size: 3

Ürün No. 2534140000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 2 İlgili ürünler 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Version Classifications

Approvals

Dopuszczenia
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Wersja
HDC insert, Male, 500 V, 24 A, Number of poles: 6, SNAP IN, Installation size: 3
Nr zam.
2534140000
Type
HDC HE 06 N MQT BL
GTIN (EAN)
4050118577785
Qty.
1 adet

Dimensions and weights

Głębokość
51 mm
Depth (inches)
2,008 inch
Height
36,9 mm
Height (inches)
1,453 inch
Bredd
34 mm
Width (inches)
1,339 inch
Net weight
44 g

Temperatures

Gränsvärde, temperatur
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
b67daa31-7dca-434d-8290-da7fb52f83a2

Dimensions

Width
34 mm

General data

Basic material
Copper alloy
BG
3
Installation size
3
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
PA 66/6
Insulating material group
IIIa
Insulation resistance
1010 Ω
Low smoke acc. DIN EN 45545-2
Yes
Number of poles
6
Number of power contacts
6
Number of signal contacts
0
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Rated current (cUR)
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    12,5 A
Rated current (DIN EN 61984)
24 A
Rated current (UR)
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    15 A
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage (DIN EN 61984)
500 V
Rated voltage according to UL/CSA
600 V AC/DC
Series
HE
Surface finish
Silver passivated
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Type
Male
Type of connection
SNAP IN
UL 94 flammability rating
V-0
Volume resistance
≤2 mΩ

Connection data PE

Connection type PE
Screw connection
Coppia di serraggio max. collegamento PE
1,5 Nm
Kés mérete, hornyos (PE-csatlakozás)
SD 0.8 x 4.0
Lunghezza di spellatura, collegamento PE
10 mm
przekrój przewodu AWG (PE), maks.
AWG 12
przekrój przewodu AWG (PE), min.
AWG 20
Rated cross-section
4 mm²
Śruba mocująca
M 4
조임 토크, 최소 PE 결선
1,2 Nm

Version

BG
3
Blade size
SD 0.6 x 3.5
Conductor cross-section, max.
2,5 mm²
Conductor cross-section, min.
1 mm²
Installation size
3
Stripping length, rated connection
10 mm
Surface finish
Silver passivated
Type of connection
SNAP IN
Volume resistance
≤2 mΩ
Werkstoff
Copper alloy
Wire connection cross section AWG, max.
AWG 16
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,34 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire cross-section, solid, min.
0,5 mm²

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
