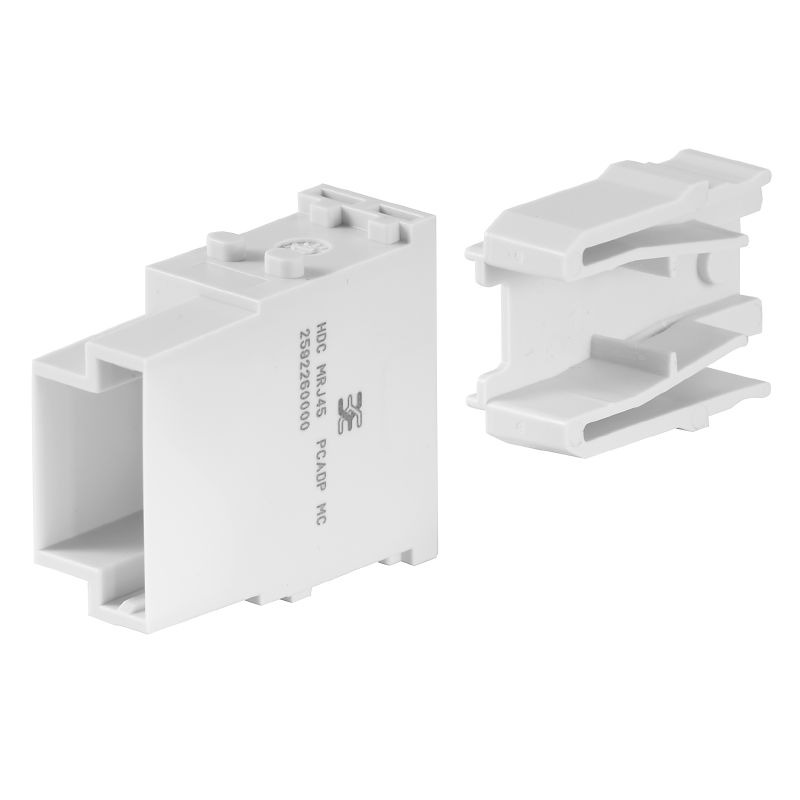

RJ45 module, 0 V, 0 A, Number of poles: 1, RJ45, Male, Required plug-in slots: 1

Ürün No. 2592260000
Veri sayfasını indir Engineering Support
Aksesuarlar 23 aksesuarıdır 23 Karşı parçalar 1 Şunun karşı parçasıdır 1 İlgili ürünler 105
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Allgemeine Daten Versión Classifications

Approvals

Schválení
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Č. osvědčení (cURus)
E92202

General ordering data

Version
RJ45 module, 0 V, 0 A, Number of poles: 1, RJ45, Male, Required plug-in slots: 1
Order No.
2592260000
Type
HDC MRJ45 PCADP MC
GTIN (EAN)
4050118602364
Qty.
1 adet

Dimensions and weights

Depth
34 mm
Depth (inches)
1,339 inch
Height
54,85 mm
Height (inches)
2,159 inch
Width
14,5 mm
Width (inches)
0,571 inch
Net weight
5,7 g

Temperatures

Mezní teplota
-40 °C ... 70 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
1609748e-c278-4c9b-b3d1-e6215d2988cd

Allgemeine Daten

Basic material
Policarbonato de fibra de vidrio duro
Insulation resistance
1012 Ω
Number of poles
1
Plugging cycles
750 (RJ45)
Pollution severity
3
Rated current (DIN EN 61984)
0 A
Rated impulse voltage (DIN EN 61984)
0 kV
Rated voltage (DIN EN 61984)
0 V
Required plug-in slots
1
Series
ModuPlug
Type
Male
UL 94 flammability rating
V-0

Versión

Conductor cross-section, max.
0 mm²
Conductor cross-section, min.
0 mm²
Type of connection
RJ45

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-18
ECLASS 15.0
27-44-02-18
