特性
| 版本 | 空接线箱, 法兰外壳, 类型 1 符合 IEC 61076-3-106, IP67 |
| 订货号 | 1963540000 |

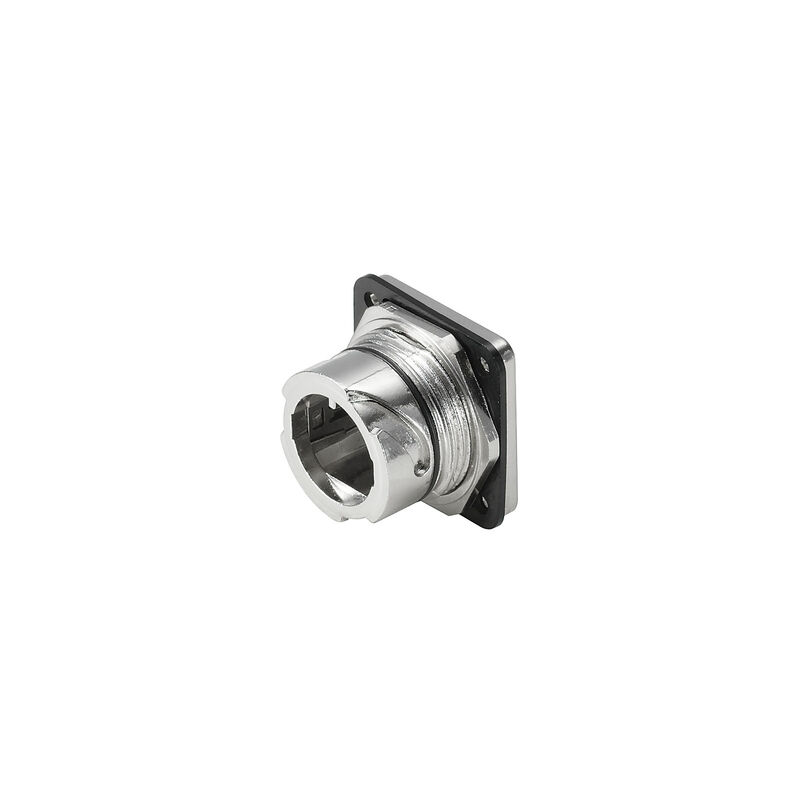

| 类型 | IE-BH-V01M |
| GTIN (EAN) | 4032248645633 |
| 数量 | 10 PC |
| 深 | 23.5 mm |
| 深度 (英寸) | 0.925 inch |
| 高度 | 32 mm |
| 高度 (英寸) | 1.26 inch |
| 宽度 | 32 mm |
| 宽度 (英寸) | 1.26 inch |
| 净重 | 46.6 g |
| 工作温度 | -40 °C...70 °C |
| REACH SVHC |
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1 |
| SCIP | c1a8d9e9-fd0c-4258-8c31-7317a7b4ce18 |
| RoHS 合规状态 | 合规，有例外 |
| RoHS 豁免（如适用/已知） | 6c |
| 外壳基本材料 | 铸锌 |
| 安装方式 |
4 螺丝
中央螺母 |
| 插拔次数 | 750 |
| 防护等级 | IP67 |
| 颜色编码 | 其他 |
| 连接器标准 | IEC 61076-3-106 型号1 |
| 认证/证书/一致性声明 |
[GOST Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58423)
[DUXR.E316369](https://mdcop.weidmueller.com/mediadelivery/asset/900_58418) |
| 工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_167092) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1963540000) |
| 产品更改通知 |
[93599](https://mdcop.weidmueller.com/mediadelivery/asset/900_93599)
[95594](https://mdcop.weidmueller.com/mediadelivery/asset/900_95594) [166915](https://mdcop.weidmueller.com/mediadelivery/asset/900_166915) [166916](https://mdcop.weidmueller.com/mediadelivery/asset/900_166916) [166918](https://mdcop.weidmueller.com/mediadelivery/asset/900_166918) |
| 用户文档 |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90841) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_96751) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| 样本 |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001031 |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 9.0 | 27-18-27-02 |
| ECLASS 9.1 | 27-18-27-02 |
| ECLASS 10.0 | 27-18-27-02 |
| ECLASS 11.0 | 27-18-27-02 |
| ECLASS 12.0 | 27-18-27-02 |
| ECLASS 13.0 | 27-19-01-04 |
| ECLASS 14.0 | 27-19-01-04 |
| ROHS | 一致 |
