特性

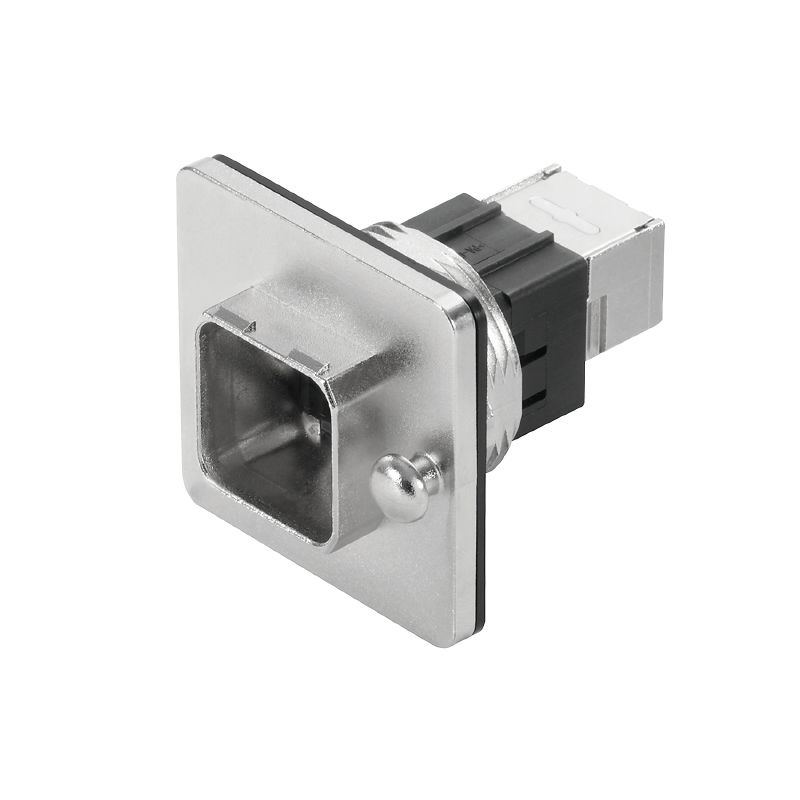

版本 | 法兰 RJ45, IP67, 类别14的金属, 耦合 RJ45 - RJ45, 中央锁定法兰,带 RJ45-转换头, Cat.6A / Class EA (ISO/IEC 11801 2010) |
订货号 | 1058250000 |
类型 | IE-BSC-V14M-RJ45-C |
GTIN (EAN) | 4032248799350 |
数量 | 10 PC |
净重 | 73.535 g |
工作温度 | -40 °C...70 °C |
RoHS 合规状态 | 合规,有例外 |
RoHS 豁免(如适用/已知) | 6c |
REACH SVHC | Lead 7439-92-1 |
SCIP | 4f3aae94-c2bc-4010-b63b-5b114ba6bd55 |
端口1 | RJ45 |
端口 2 | RJ45 |
物品描述 |
类别14的金属
耦合 RJ45 - RJ45 中央锁定法兰,带 RJ45-转换头 |
密封圈材料 | NBR |
外壳基本材料 | 铸锌 |
目录册 | Cat.6A / Class EA (ISO/IEC 11801 2010) |
插针镀层 | 镍,镀金 |
最小护套直径 | 5 mm |
最大护套直径 | 10 mm |
安装方式 | 中央格兰板 |
屏蔽 | 360度;全封闭外壳 |
防护等级 | IP67 |
插拔次数 | 750 |
介电强度,触点-触点 | ≥ 1000 V AC/DC |
电源联接器耐压强度,触点-触点,最小 | ≥ 1500 V AC/DC |
证书号 (cULus) | E316369 |
连接器标准 |
IEC 61076-3-117 型号14
IEC 60603-7-51 |
认证/证书/一致性声明 |
[ISO/IEC and TIA/EIA DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_58438)
[ISO/IEC EN and TIA/EIA Screened Class E Category 6, 3 connector permanent link](https://mdcop.weidmueller.com/mediadelivery/asset/900_67334) [ISO/IEC EN and TIA/EIA Screened Class E Category 6, 4 connector channel](https://mdcop.weidmueller.com/mediadelivery/asset/900_67335) [ISO/IEC EN and TIA/EIA Screened Class EA Category 6A, 2 connector channel](https://mdcop.weidmueller.com/mediadelivery/asset/900_67336) [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_166415) |
CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1058250000) |
用户文档 |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90842) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_96751) |
产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
样本 |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
ETIM 6.0 | EC001121 |
ETIM 7.0 | EC001121 |
ETIM 8.0 | EC001121 |
ETIM 9.0 | EC001121 |
ECLASS 9.0 | 27-44-03-90 |
ECLASS 9.1 | 27-44-03-90 |
ECLASS 10.0 | 27-44-03-90 |
ECLASS 11.0 | 27-44-03-90 |
ECLASS 12.0 | 27-44-03-90 |
ECLASS 13.0 | 27-44-03-90 |
ECLASS 14.0 | 27-44-03-90 |
认证 | ![CULUS](/picture/CULUS.gif) |
ROHS | 一致 |
UL File Number Search | [UL 网站](LINK/UL_search.html) |
证书号 (cULus) | E316369 |
