IE-C5DD4UG0100MCSMCS-E

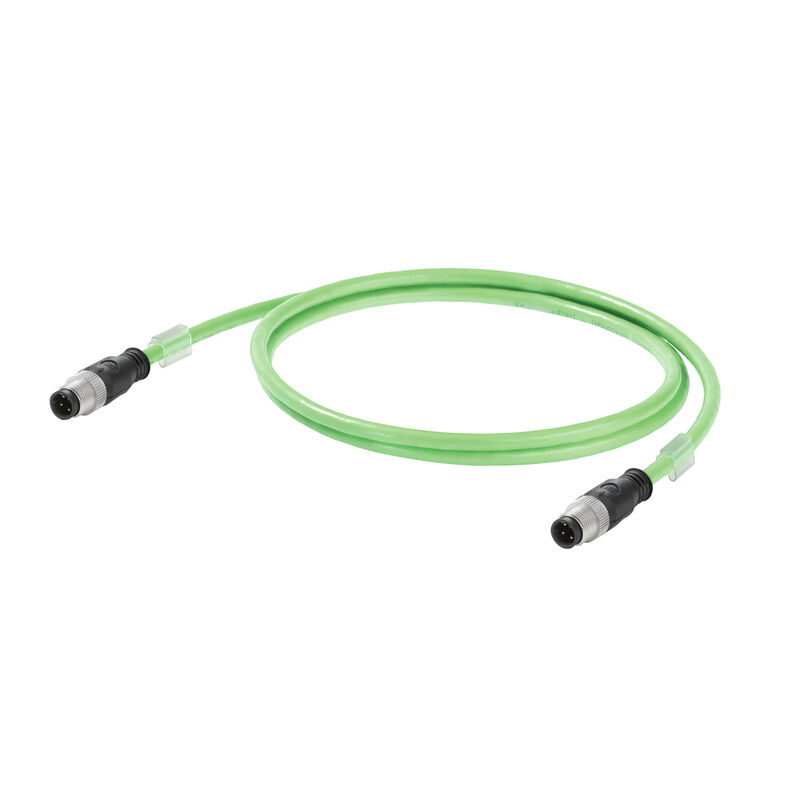

Dragline cable, PROFINET, M12 D-code – IP 67 straight pin, M12 D-code – IP 67 straight pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 10 m

Product ID 1025950100
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 6 Verwante producten 24
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Változat
Dragline cable, PROFINET, M12 D-code – IP 67 straight pin, M12 D-code – IP 67 straight pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 10 m
주문 번호
1025950100
Type
IE-C5DD4UG0100MCSMCS-E
GTIN (EAN)
4032248776078
CPZ
1 items

Dimensions and weights

Length
10 m
Length (inches)
393,701 inch
Net weight
652 g

Temperatures

Tárolási hőmérséklet
-50 °C...70 °C
Temperatura d'esercizio
-40 °C...70 °C
Temperatura di posa
-20 °C...60 °C

Environmental Product Compliance

Состояние соответствия RoHS
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A
Стандарт, материал изоляции
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)

General standards

Certificate no. (cULus)
E316369
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Cable structure

PE
Arrangement of wire cores
Star-quad
Colour sequence or wires - wire pairs
white, yellow, blue, orange
Complete shielding
Aluminium foil
Shielding braid made from copper wiring
Cross-section
4*AWG 22/7 - 0.32 mm²
Diameter of inner sheathing
3,9 mm
Filler
As central element
Insulation cross-section
1,5 mm
Material sheath
PUR
Number of wires
4
Overlap of shielding braid
85 %
Sheath diameter, max.
6,7 mm
Sheath diameter, min.
6,3 mm
Sheathing colour
green (RAL 6018)
Sheathing material thickness
0,9 mm
Shielding
SF/UTP
Shielding braid thickness
0,13 mm
Standard designations
2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
Strands
7
Wire core insulation thickness
0,38 mm
Wire material
Stranded tin-plated copper wire

Electrical properties of cable

Category
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Delay skew
40 ns/100m
Kapacita při 1 kHz
52 nF/km
Loop resistance
120 Ω/km
Operating voltage (UL rating)
600 V
Operating voltage, UL
600 V
Rychlost
180 m/min
Signallaufzeit
5,3 ns/m
Testspannung Ader-Ader-Schirm
2000 Veff, 50 Hz, 1 min
Transfer impedance
20 mΩ/m at 10 MHz
Widerstandsdifferenz
3 %

Mechanical and material properties of cable

Abrasion resistance
very good
Acceleration
4 m/s²
Bending cycles
3 Mio
Fire propagation
No
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
7.5 x cable diameter
Pulling force
≤ 150 N
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1
Silicone-free
Yes
Speed
180 m/min
UV-resistant
Yes

Plug, left

Plug left
M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Stickkontakt höger
M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
