特性

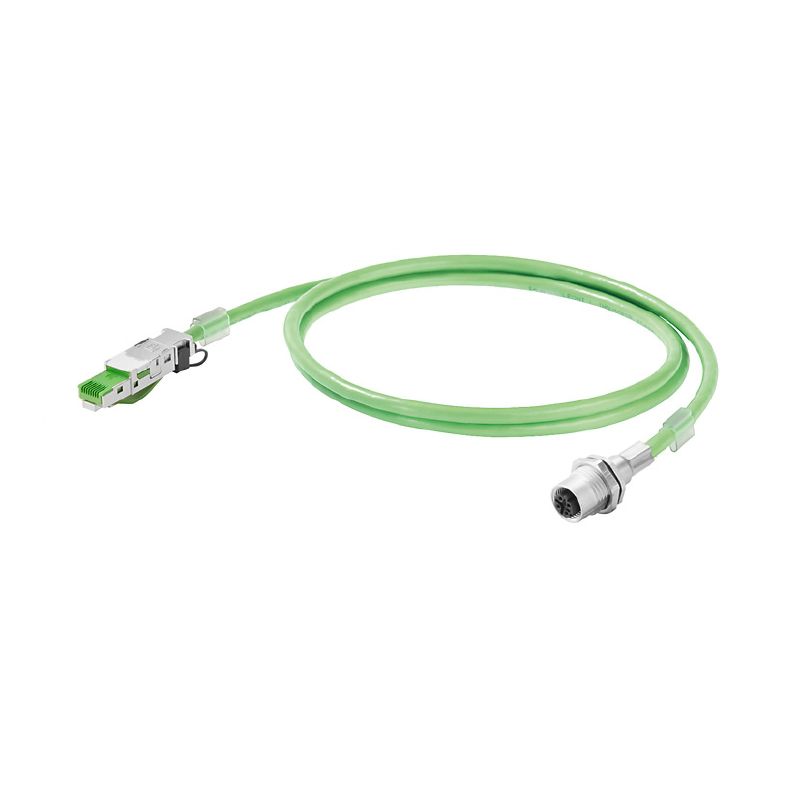

| 版本 | 系统电缆, M12 D 编码 – 法兰, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), 3 m |
| 订货号 | 1234750030 |
| 类型 | IE-C5DS4UG0030MBSA70-E |
| GTIN (EAN) | 4050118629835 |
| 数量 | 1 PC |
| 长度 | 3 m |
| 长度 (英寸) | 118.11 inch |
| 净重 | 100 g |
| RoHS 合规状态 | 合规，有例外 |
| RoHS 豁免（如适用/已知） | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| 屏蔽 | 360度；屏蔽触点 |
| 截面积 | 4*AWG 22/7 - 0.32 mm² |
| 护套颜色 | 绿(RAL 6018) |
| 目录册 | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
| 卤素 | 无卤, 符合IEC 60754-2标准 |
| 阻燃性 | 是 |
| 插头，左 | M12, D-编码, IP67, 孔式端头, 笔直, 法兰, 塑料, 带屏蔽 |
| 插头，右 | RJ45, IP20, 针式端头, 笔直, 插头, 塑料, 带屏蔽 |
| 工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_204280) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1234750030) |
| 产品更改通知 |
[PCN-PB47-20230322-A-EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_296362)
[PCN-PB47-20230322-A-DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_296363) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| ECLASS 14.0 | 27-06-03-08 |
| ROHS | 一致 |
