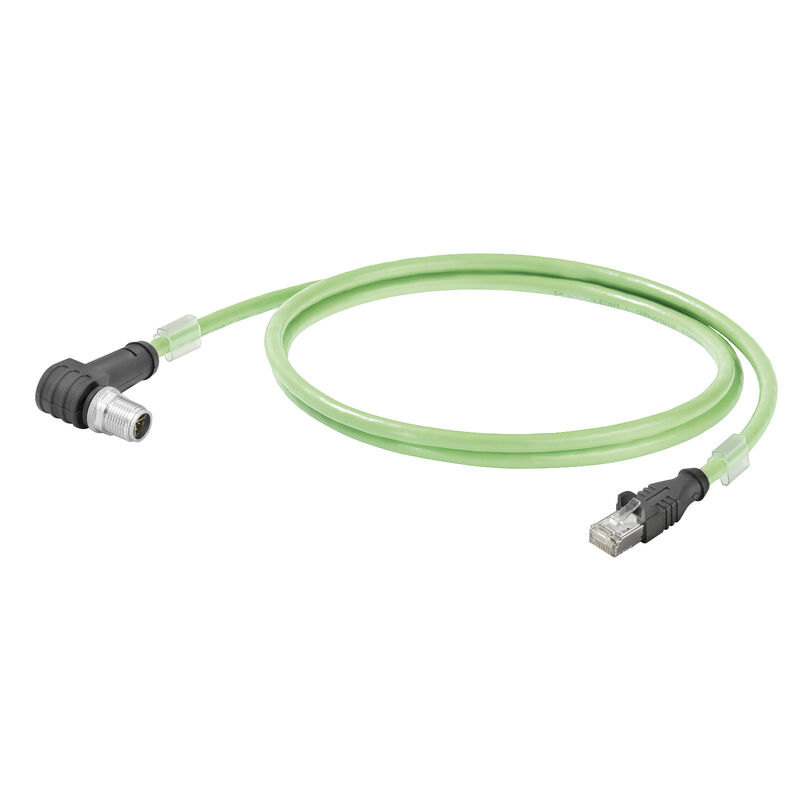

System cable, RJ45 IP 20, M12 x-type IP67 male, angled 0°, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 30 m

N.º de artículo 2485600300
Descargar hoja de datos Tekninen tuki
Lisävarusteet 2 Samankaltaiset tuotteet 44
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
System cable, RJ45 IP 20, M12 x-type IP67 male, angled 0°, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 30 m
Order No.
2485600300
Type
IE-C6EL8UG0300XCAU40-E
GTIN (EAN)
4050118649307
Qty.
1 items

Dimensions and weights

Length
30 m
Length (inches)
1 181,102 inch
Net weight
1 281,28 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...80 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Impervious to smoke
According to IEC 61034
Standard, assembly
UL Style 20963

Standards

Impervious to smoke
According to IEC 61034
Standard, assembly
UL Style 20963

Cable structure

Complete shielding
Shielding braid made from copper wiring
Copper diameter
0,48 µm
Insulation
PE
Manteldiameter, min.
6,1 mm
Mantelfarbe
green (RAL 6018)
Material del conductor
Stranded tin-plated copper wire
Material sheath
PUR
Section
4*2*AWG 26/7 - 4*2*0.128 mm²
Standard designations
S/FTP
LIO2YSC11Y 4x2x0.15 PIMF FRNC GN
Strands
7
Séquence des couleurs des fils –paires de fils
white - blue, white - orange, white - green, white - brown
Uspořádání jader vodiče
Twisted pair
Wire pair shielding
Aluminium foil
Wiring
EIA/TIA T568 B
Árnyékolás
S/FTP
Árnyékoló fonat vastagsága
0,1 mm
Диаметр оболочки, макс.
6,7 mm
와이어 개수
8
절연재 단면적
0,98 mm

Electrical properties of cable

Categoria
Cat.6A / Class EA (ISO/IEC 11801 2010)
Characteristic impedance
100 ± 5 Ω at 100MHz
Czas przebiegu sygnału
5,2 ns/m
Transferimpedans
15 mΩ/m at 1 MHz
10 mΩ/m at 10 MHz
30 mΩ/m at 30 MHz
Испытательное напряжение: провод–провод–экран
700 Vrms, 50 Hz, 1 min
루프 저항
290 Ω/km

Mechanical and material properties of cable

Abrasion resistance
very good
Halogen
halogen-free, according to IEC 60754-1
Impervious to smoke
According to IEC 61034
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
10 x cable diameter
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1-2

Plug, left

Plug left
M12, X-coded, IP67, male contact, angled 0°, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
