IE-FC-DSP-PWB/2ST/FILS
IE-FC-DSP-PWB/2ST/FILS
Dimensioned drawing
IE-FC-DSP-PWB/2ST/FILS

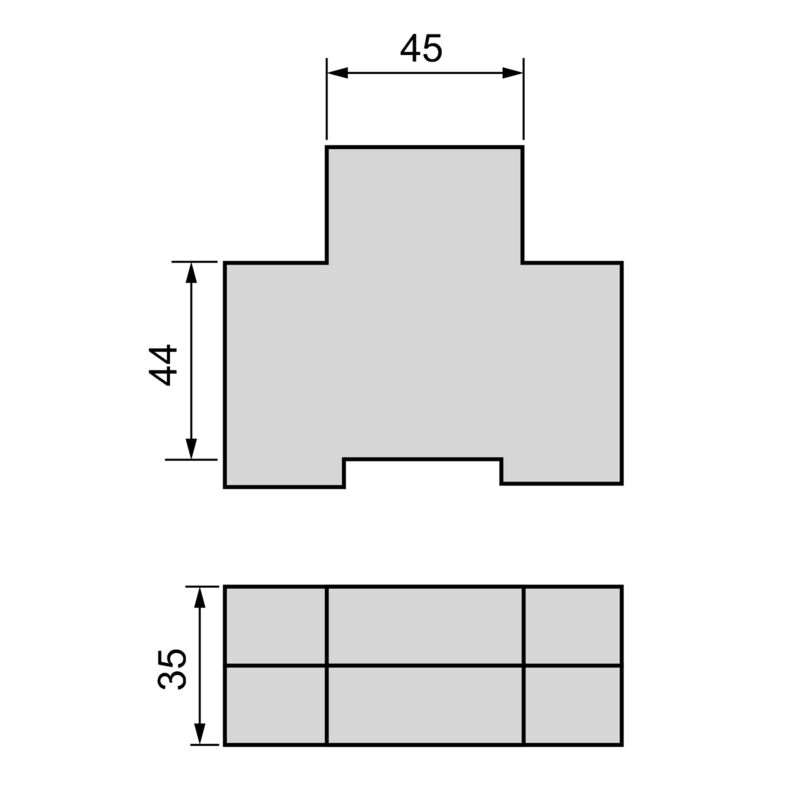

Detailed drawing
Suitable RCBO for the RCBO cut-out has the dimensions in the drawing (acc. to DIN 43880). Every RCBO with this dimension will fit.

IE-FC-DSP-PWB/2ST/FILS

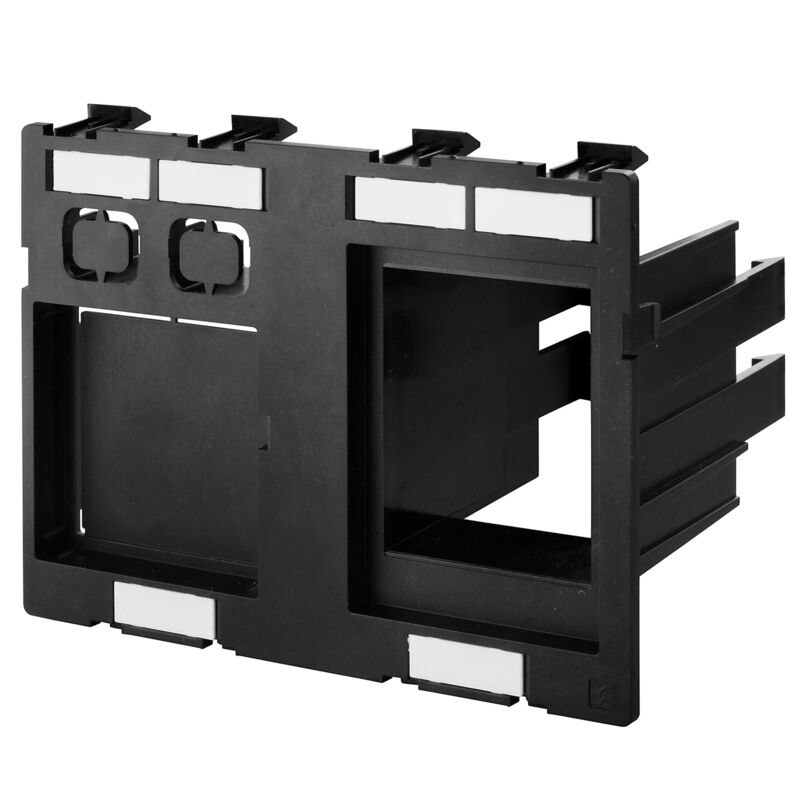

FrontCom, Insert plate, shielded

Ürün No. 2067080000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 8 aksesuarıdır 4 İlgili ürünler 9
Godkännanden General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dane ogólne Einsätze General standards Classifications

Godkännanden

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223801

General ordering data

Version
FrontCom, Insert plate, shielded
Order No.
2067080000
Type
IE-FC-DSP-PWB/2ST/FILS
GTIN (EAN)
4050118415612
Qty.
1 adet

Dimensions and weights

Height
74 mm
Height (inches)
2,913 inch
Width
116,5 mm
Width (inches)
4,587 inch
Length
90,5 mm
Length (inches)
3,563 inch
Net weight
54,37 g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
8a473a8a-33d4-4318-8088-c28f019e7f77

Dane ogólne

Material
Polykarbonat PC
Product type
Insatsplatta
skärmad

Einsätze

Insert Power large
1
Insert RCBO (2 modular width units)
1
Insert suitable for RCBO according to standard
DIN43880
Insert, data
2

General standards

Certificate No. (CSA)
2000039-80039714
Certificate No. (cURus)
E223801

Classifications

ETIM 8.0
EC000456
ETIM 9.0
EC000456
ETIM 10.0
EC000456
ECLASS 14.0
27-18-28-92
ECLASS 15.0
27-18-28-92
