IE-M12-PCBCE

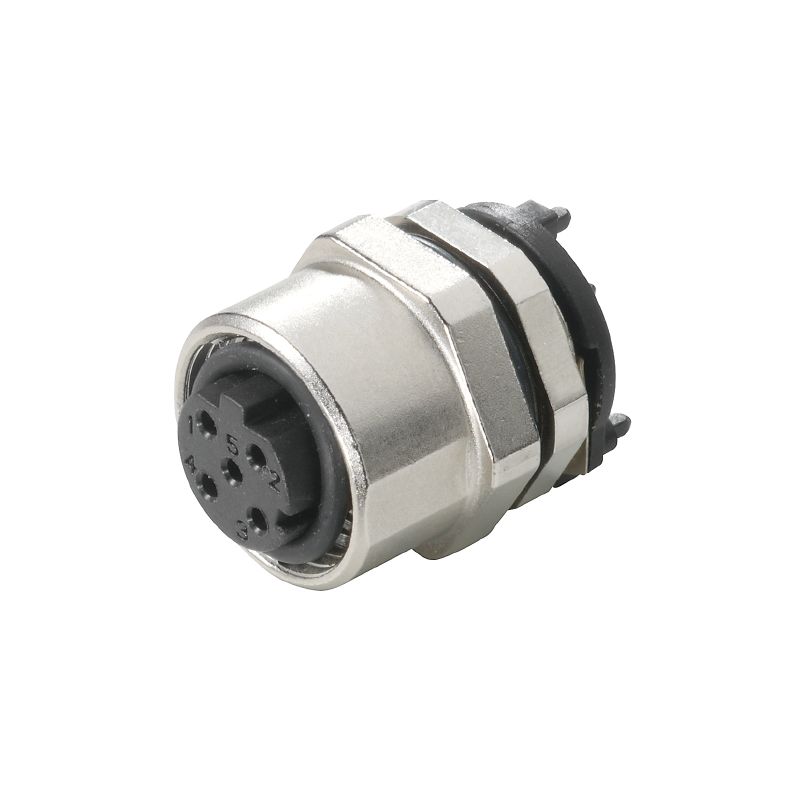

PCB connection element M12, Solder connection, Cat.5 (ISO/IEC 11801), IP65 in acc. with DIN EN 60529

Ürün No. 8902810000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Технические данные вставного разъема печатной платы General Info Classifications

Approvals

ROHS
Conform

General ordering data

Versione
PCB connection element M12, Solder connection, Cat.5 (ISO/IEC 11801), IP65 in acc. with DIN EN 60529
Référence
8902810000
Type
IE-M12-PCBCE
GTIN (EAN)
4032248658190
Qty.
60 adet

Dimensions and weights

Net weight
10,62 g

Temperatures

Température de fonctionnement
-25 °C...85 °C

Environmental Product Compliance

Statut de conformité RoHS
Compliant with exemption
Exemption RoHS (le cas échéant/connue)
6c
REACH SVHC
Lead 7439-92-1
SCIP
3e8ceb07-2a6e-42e7-9cfb-aa443d2916b3

Технические данные вставного разъема печатной платы

Coding
D-coded
Number of poles
4
Stopień ochrony
IP65 in acc. with DIN EN 60529
Housing main material
CuZn
Polyamide
nickel-plated
Anschlussgewinde
M12

General Info

Number of poles
4
Anschluss 1
M12
Anschluss 2
Solder connection
Descrizione articolo
Connection element
구성
Reflow compatible
Gehäusebasismaterial
CuZn
Polyamide
nickel-plated
Category
Cat.5 (ISO/IEC 11801)
Connection thread
M12
Shielding
360° shield contact
Protection degree
IP65 in acc. with DIN EN 60529

Classifications

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
