IE-PS-RJ45-TH-BK
IE-PS-RJ45-TH-BK

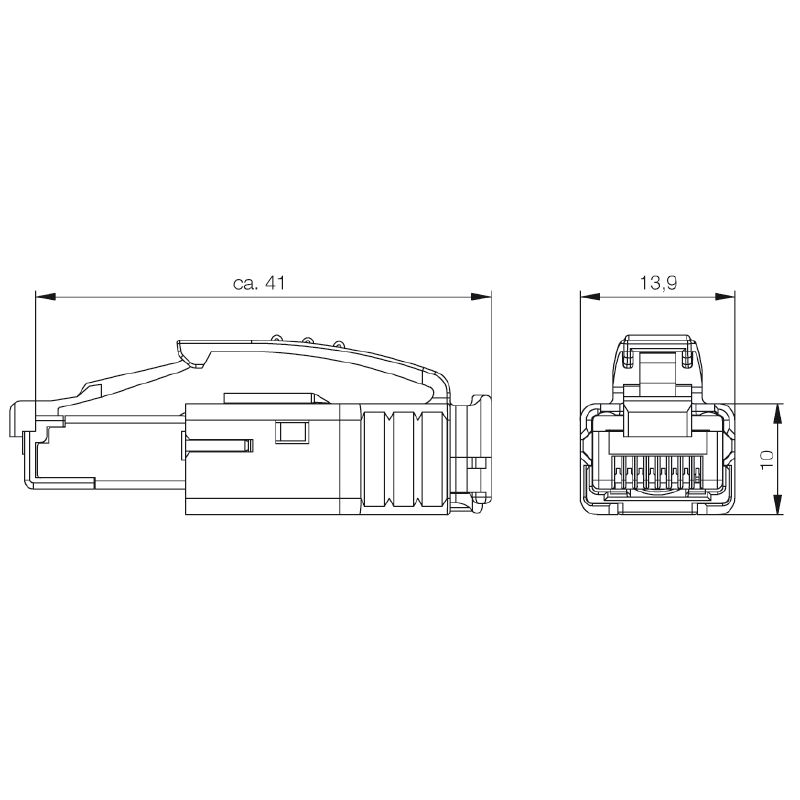

Dimensioned drawing

IE-PS-RJ45-TH-BK

RJ45 crimp plug, Plug with bending protection sleeve in black, Cat.6A / Class EA (ISO/IEC 11801 2010)

Produkt-ID 1963590000
Ladda ner datablad Teknisk support Nedladdningar av produkter
Tillbehör 9 Är en motdel till 53 Använda produkter 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Electrical properties General standards Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/c4bf74a6-04a5-4e4b-82e5-d75bdf1b56fe/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E316369

General ordering data

Version
RJ45 crimp plug, Plug with bending protection sleeve in black, Cat.6A / Class EA (ISO/IEC 11801 2010)
Order No.
1963590000
Type
IE-PS-RJ45-TH-BK
GTIN (EAN)
4032248645695
Qty.
10 items

Dimensions and weights

Net weight
10,2 g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Connection 1
RJ45
Connection 2
Crimp
Description of article
Plug with bending protection sleeve in black
Composition
Connects piercing contacts and shielded connections in one step, retro-fit for kink-prevention sleeves, Multi-port compatible
Colour
Miscellaneous
Insulation cross-section, min.
0,85 mm
Insulation cross-section, max.
1,05 mm
Kábel kihúzási erő, min.
89 N
Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Érintkező anyaga
Foszfor-bronz
접점 표면
금도금
Connection diameter, solid
0.36...0.51 mm
Ledarens anslutningsarea, entrådig (AWG)
AWG 27...AWG 24
Anslutningsdiameter, fintrådig
0.46...0.61 mm
Ledarens anslutningsarea, fintrådig (AWG)
AWG 27...AWG 24
MICE-Klassificering M
M1
MICE-Klassificering I
I1
MICE-Klassificering C
C1
MICE-Klassificering E
E3
Manteldiameter, min.
5 mm
Manteldiameter, max.
7,3 mm
Material Böjskyddshylsa
Polykarbonat PC, UL 94 V-0
Skärmmaterial
0,5 mm mässing, 2 µm nickel
Avskärmning
360° heltäckande kapsling
Skyddsklass
IP20
Stickcykler
750
Material isolerdel
Polykarbonat PC, UL 94 V-0

Electrical properties

Contact resistance
≤ 20 mΩ
Current-carrying capacity at 50 °C
1 A
Dielectric strength, contact / contact
≥ 1000 V AC/DC
Dielectric strength, contact / shield
≥ 1500 V AC/DC
Insulation resistance
500 MΩ
PoE / PoE+
zgodne z IEEE 802.3af

General standards

Certificate No. (cURus)
E316369
Connector standard
IEC 60603-7-51

Classifications

ETIM 8.0
EC001121
ETIM 9.0
EC001121
ETIM 10.0
EC001121
ECLASS 14.0
27-44-03-90
ECLASS 15.0
27-44-03-90
