IE-TO-LCD-MM
IE-TO-LCD-MM

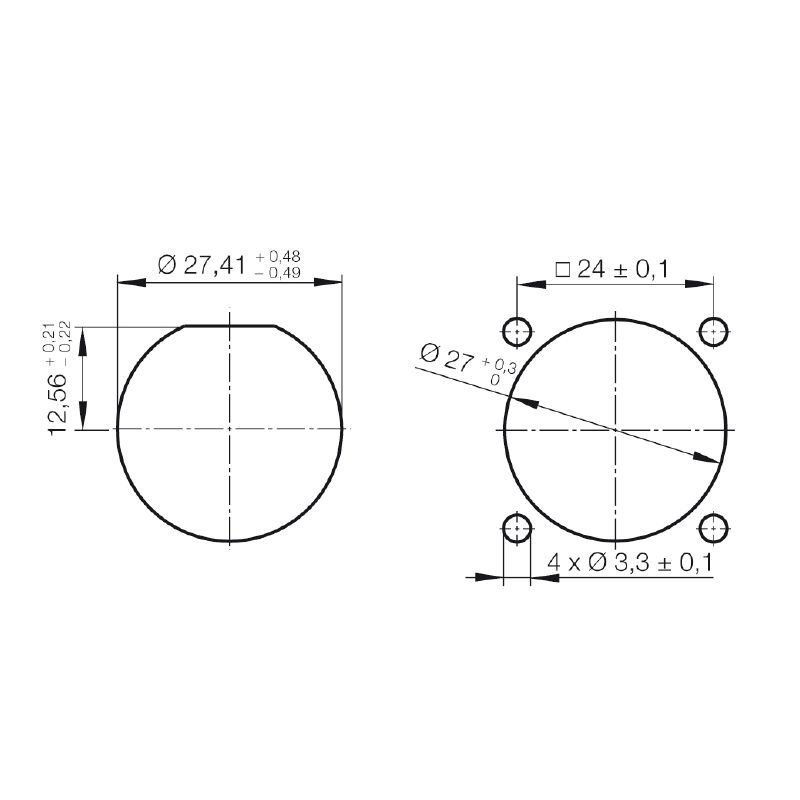

Dimensioned drawing

IE-TO-LCD-MM

Mounting rail outlet, fibre-optic, LC Duplex, Multimode, GOF, POF, IP20

Item No. 8947010000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 1 Is accessory of 7 Related products 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Általános adatok 일반 표준 Classifications

Approvals

ROHS
Conform

General ordering data

Version
Mounting rail outlet, fibre-optic, LC Duplex, Multimode, GOF, POF, IP20
Référence
8947010000
Type
IE-TO-LCD-MM
GTIN (EAN)
4032248735020
Qty.
10 items

Dimensions and weights

Net weight
32,5 g

Temperatures

Température de fonctionnement
-40 °C...70 °C

Environmental Product Compliance

Statut de conformité RoHS
Compliant with exemption
Exemption RoHS (le cas échéant/connue)
6a
REACH SVHC
Lead 7439-92-1
SCIP
d804b481-7e9c-49d7-824d-c29fa84add98

Általános adatok

Colour
Grigio chiaro
Fibre type
멀티모드
GOF
POF
Housing main material
PA UL 94 V0
Perte d’insertion
≤ 0.4 dB
Plugging cycles
1000
Protection degree
IP20
Raccordement 1
LC Duplex
Raccordement 2
LC Duplex
Type of mounting
TS 35

일반 표준

Norme de connecteur
IEC 61754-20

Classifications

ETIM 8.0
EC000313
ETIM 9.0
EC000313
ETIM 10.0
EC000313
ECLASS 14.0
27-44-03-20
ECLASS 15.0
27-44-03-20
