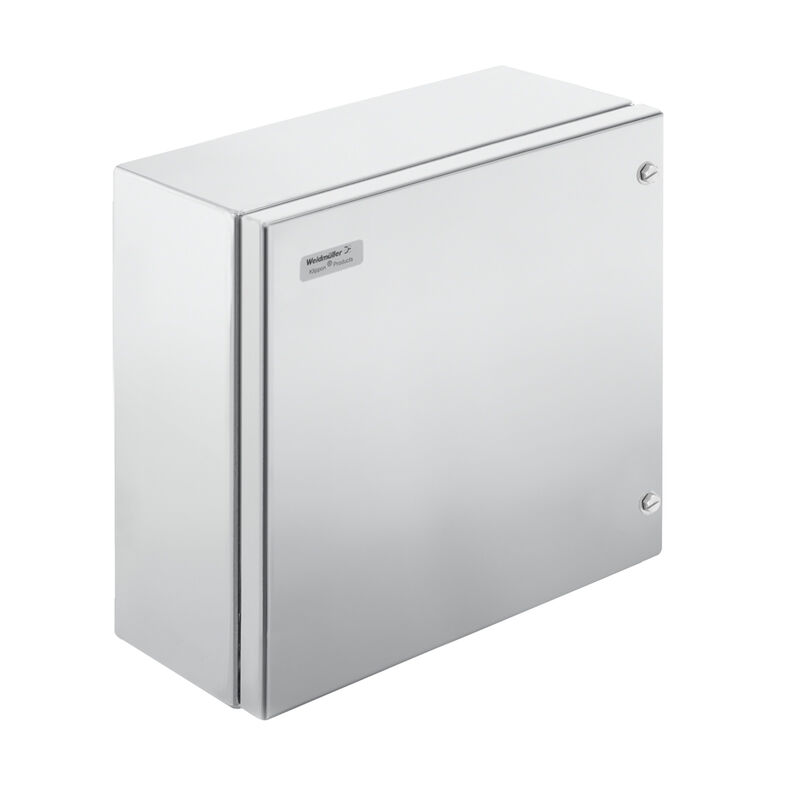

Klippon EBi HS (Essential Box industrial - Hinged Screws), Enclosures, straight, Height: 300 mm, Width: 200 mm, Depth: 150 mm, Basic material: Stainless steel 1.4301 (304), Brushed, silver

Ürün No. 8000133626
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 9 İlgili ürünler 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, right Cable glands, top/bottom Certificate numbers enclosure General information horizontal assembly Housing earth vertical assembly Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)

General ordering data

Version
Klippon EBi HS (Essential Box industrial - Hinged Screws), Enclosures, straight, Height: 300 mm, Width: 200 mm, Depth: 150 mm, Basic material: Stainless steel 1.4301 (304), Brushed, silver
Order No.
8000133626
Type
KEBIHS302015S2N0 AL
GTIN (EAN)
4099987339209
Qty.
1  adet

Dimensions and weights

Depth
150  mm
Depth (inches)
5,905  inch
Height
300  mm
Height (inches)
11,811  inch
Width
200  mm
Width (inches)
7,874  inch
Wall thickness, min.
1,5  mm
Wall thickness, max.
1,5  mm
Net weight
3.673,945  g

Temperatures

Operating temperature
-40 °C...85 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable glands, right

M12
44
M16
24
M20
16
M25
12
M32
12
M40
3
M50
6
M63
5

Cable glands, top/bottom

M12
24
M16
8
M20
8
M25
3
M32
2
M40
2
M50
3
M63
3

Certificate numbers enclosure

Declaration of Conformatiy No. (DoC LVD)
DE PS2650 220428 001ISS01

General information

Areas of use
Building systems and technology
Basic material
Stainless steel 1.4301 (304)
Flange plate
No
Flange plate mounting
TX20 screws
Impact resistance
10 J version standard
Lid
Yes
Lid attachment
M5 hexagonal screw with slot and 10mm distance across flats + hinge
Material thickness
1,5  mm
Material thickness of cover
1,5  mm
Material thickness of enclosure
1,5  mm
Material thickness of flange
3  mm
Number of lid screws
2
Opening angle lid
120  °
Operating temperature, max.
85  °C
Operating temperature, min.
-40  °C
Protection degree
IP66
Seal material
Polyurethane
Chloroprene (cover & flange)
Seal material of cover
Chloroprene
Seal material of flange plate
Chloroprene
Surface finish
Brushed

horizontal assembly

WDU 10 / ZDU 10
3x11
WDU 16 / ZDU 16
3x9
WDU 2,5 / ZDU 2,5 / IDU 2,5
3x23
WDU 35 / ZDU 35
3x7
WDU 4 / ZDU 4
3x19
WDU 6 / ZDU 6
3x14

Housing earth

Earth, enclosure, external
M6 earth tab rivet
Earth, enclosure, internal
Welded-on M6 stainless-steel earth stud in enclosure body and lid.

vertical assembly

WDU 10 / ZDU 10
1x21
WDU 16 / ZDU 16
1x18
WDU 2,5 / ZDU 2,5 / IDU 2,5
1x41
WDU 35 / ZDU 35
1x13
WDU 4 / ZDU 4
3x19
1x35
WDU 6 / ZDU 6
1x27

Classifications

ETIM 6.0
EC000261
ETIM 7.0
EC000261
ETIM 8.0
EC000261
ETIM 9.0
EC000261
ETIM 10.0
EC000261
ECLASS 9.0
27-18-01-01
ECLASS 9.1
27-18-92-90
ECLASS 10.0
27-18-01-01
ECLASS 11.0
27-18-01-01
ECLASS 12.0
27-18-01-01
ECLASS 13.0
27-18-01-01
ECLASS 14.0
27-18-01-01
ECLASS 15.0
27-18-01-01
