KISC M3X20.5/10 NI EK4

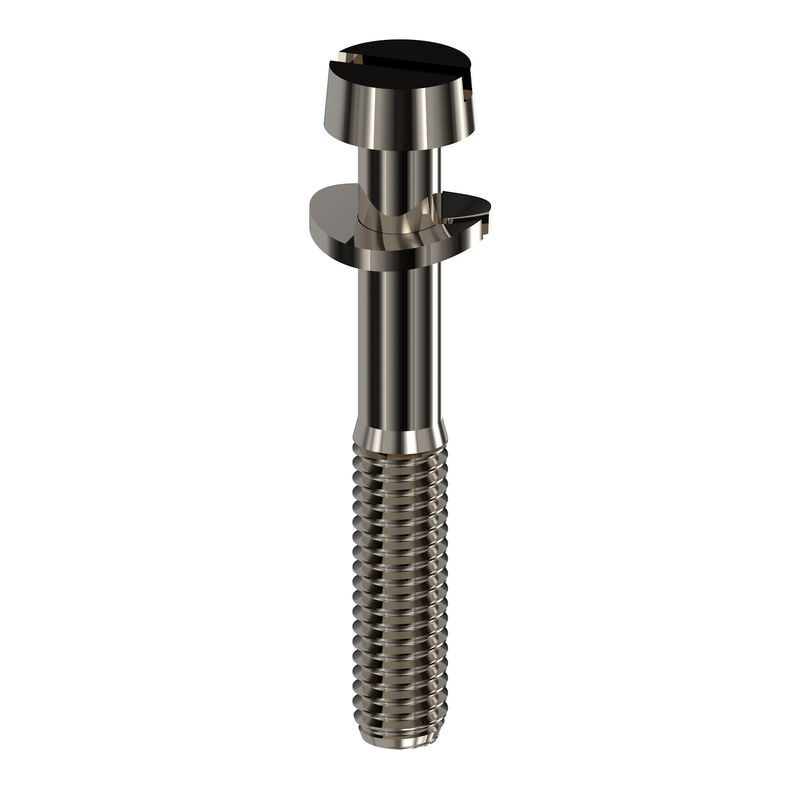

Product image
Similar to illustration

KISC M3X20.5/10 NI EK4

Clamping yoke, Mounting screw

Product ID 9503280000
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 30
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Dimensions General Classifications Approvals

General ordering data

Version
Clamping yoke, Mounting screw
Order No.
9503280000
Type
KISC M3X20.5/10 NI EK4
GTIN (EAN)
4008190550783
Qty.
100  items

Dimensions and weights

Depth
4,8  mm
Depth (inches)
0,189  inch
Height
20,5  mm
Height (inches)
0,807  inch
Width
4,8  mm
Width (inches)
0,189  inch
Net weight
1,021  g

Temperatures

Ambient temperature
-5 °C…40 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Colour
grey

System specifications

Version
Screws

Additional technical data

Installation advice
Direct mounting
Type of mounting
when screwed in

Dimensions

Metric size of the thread, external
3  mm

General

Installation advice
Direct mounting

Classifications

ETIM 6.0
EC002848
ETIM 7.0
EC002848
ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 9.0
27-14-11-92
ECLASS 9.1
27-14-11-92
ECLASS 10.0
27-14-11-92
ECLASS 11.0
27-14-11-92
ECLASS 12.0
27-14-11-92
ECLASS 13.0
27-25-03-90
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90

Approvals

ROHS
Conform
