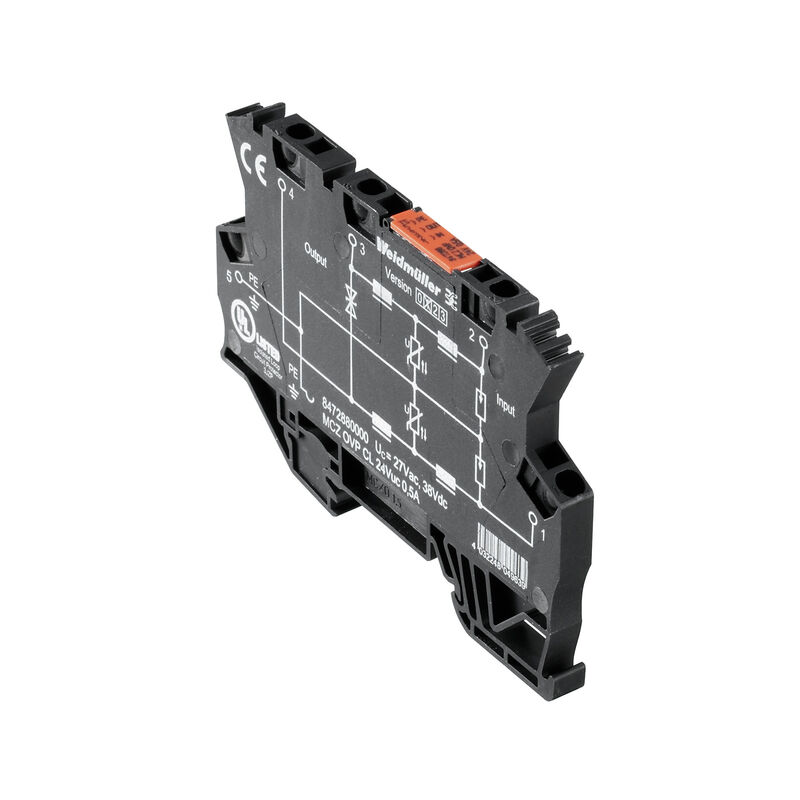

MCZ OVP CL 24VAC 0,5A
MCZ OVP CL 24VAC 0,5A
Electric symbol

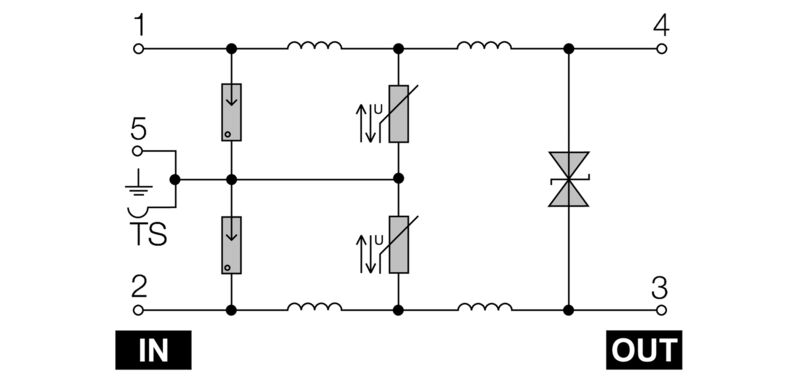

Circuit diagram

MCZ OVP CL 24VAC 0,5A

Surge protection for instrumentation and control, Surge protection for measurement and control

Product ID 8472880000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 4 Verwante producten 10
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Connection data Electrical data General data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319261/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E311081

General ordering data

Version
Surge protection for instrumentation and control, Surge protection for measurement and control
Order No.
8472880000
Type
MCZ OVP CL 24VAC 0,5A
GTIN (EAN)
4032248049639
Qty.
10  items

Dimensions and weights

Depth
63,5  mm
Depth (inches)
2,5  inch
Height
91  mm
Height (inches)
3,583  inch
Width
6  mm
Width (inches)
0,236  inch
Net weight
13,34  g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a
REACH SVHC
Lead 7439-92-1
SCIP
c9db83e7-2b25-44e1-8d26-da64d426373f

Rated data UL

Certificate No. (UL)
E311081

General data

Colour
black
Design
Terminal
Height with TS 35
63,5  mm
Protection degree
IP20
Rail
TS 35
Segment
Measurement - Monitoring - Setting
UL 94 flammability rating
V-0
Version
Surge protection for measurement and control

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Discharge current, Iimp (10/350 µs)
1  kA
Discharge current, max. (8/20 µs)
5  kA
Fuse
0.5 A
Inductance L and L1
35  µH
Lightning test current Iimp (10/350 µs)
1 kA
Limiting frequency (-3 dB) at load resistance
500 kHz 240 Ω
Load resistance (for limiting frequency)
240 Ω
Max. continuous voltage, Uc (AC)
38 V
Operating current, Imax.
0,5  A
Operating voltage
38  V
Protection level on output side Wire-PE 1kV/µs, typically
45  V
Protection level on output side Wire-PE 8/20 µs, typically
70 V
Protection level on output side Wire-wire 1 kV/µs, typically
45  V
Protection level on output side Wire-wire 8/20 µs, typically
70 V
Rated current IN
0,5  A
Rated voltage (AC)
24  V
Rated voltage (DC)
28 V
Rated voltage (DC), max.
38  V
Requirements category acc. to IEC 61643-21
D1
Response time
≤ 100 ps
Standards
HART-compatible
Voltage type
AC/DC
Volume resistance
1.00 Ω

Connection data

Cross-section
1,5  mm²
Stripping length
8  mm
Wire connection method
Spring connection
Type of connection
Tension-clamp connection
Stripping length, rated connection
8  mm
Clamping range, rated connection
1,5  mm²
Clamping range, min.
0,5  mm²
Clamping range, max.
1,5  mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 16
Wire cross-section, solid, min.
0,5  mm²
Wire cross-section, solid, max.
1,5  mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 16
Wire connection cross section, finely stranded, min.
0,5  mm²
Wire connection cross section, finely stranded, max.
1,5  mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5  mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,5  mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5  mm²
Blade size
0.6 x 3.5 mm

Electrical data

Voltage type
AC/DC

General data

Protection degree
IP20
Colour
black

Classifications

ETIM 6.0
EC000943
ETIM 7.0
EC000943
ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 9.0
27-13-08-07
ECLASS 9.1
27-13-08-07
ECLASS 10.0
27-13-08-07
ECLASS 11.0
27-13-08-07
ECLASS 12.0
27-17-90-90
ECLASS 13.0
27-17-90-90
ECLASS 14.0
27-17-90-90
ECLASS 15.0
27-17-90-90
