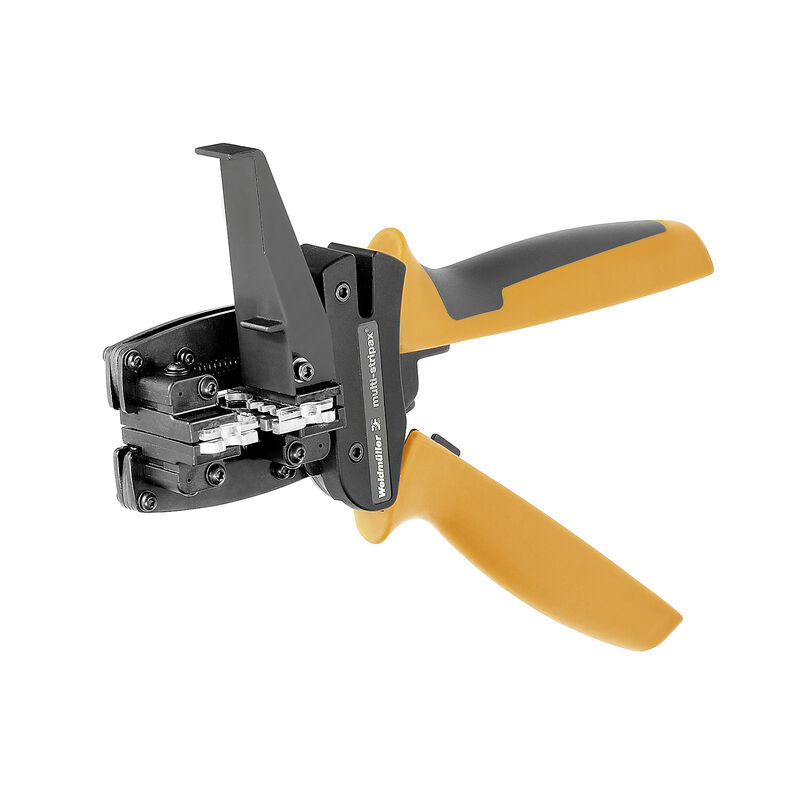

MULTI-STRIPAX IE-POF
MULTI-STRIPAX IE-POF

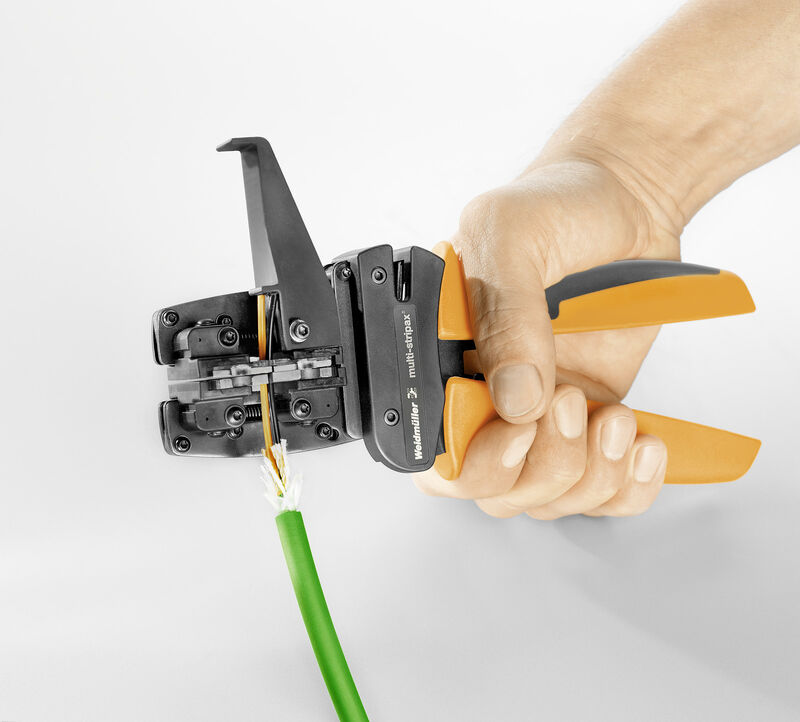

Example of use
MULTI-STRIPAX IE-POF
Example of use
MULTI-STRIPAX IE-POF

MULTI-STRIPAX IE-POF

Tools, Stripping and cutting tool

Tuotteen tunnus 1208880000
Lataa tietosivu Product Downloads
Lisävarusteet 12 On lisävaruste 4 Yksittäiset osat 3 Yksittäinen osa tuotteelle 1 Samankaltaiset tuotteet 10
General ordering data Dimensions and weights Environmental Product Compliance 기술 데이터 Csupaszoló szerszámok Classifications

General ordering data

Version
Tools, Stripping and cutting tool
Order No.
1208880000
Tipo
MULTI-STRIPAX IE-POF
GTIN (EAN)
4032248990276
Qty.
1 items

Dimensions and weights

Depth
40 mm
Depth (inches)
1,575 inch
Altura
85 mm
Height (inches)
3,346 inch
Width
250 mm
Width (inches)
9,842 inch
Net weight
482,24 g

Environmental Product Compliance

RoHS megfelelőségi állapot
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0

기술 데이터

Popis výrobku
Wire stripper unit

Csupaszoló szerszámok

Conductor cross-section (cutting capacity)
6 mm²
Průřez vodiče, max.
6 mm²
Stripping length, min.
2 mm
Stripping range AWG, max.
10 AWG

Classifications

ETIM 8.0
EC002109
ETIM 9.0
EC002109
ETIM 10.0
EC002109
ECLASS 14.0
21-04-37-06
ECLASS 15.0
21-04-37-06
