RSV1,6 LSF18 GR 3,2 AU

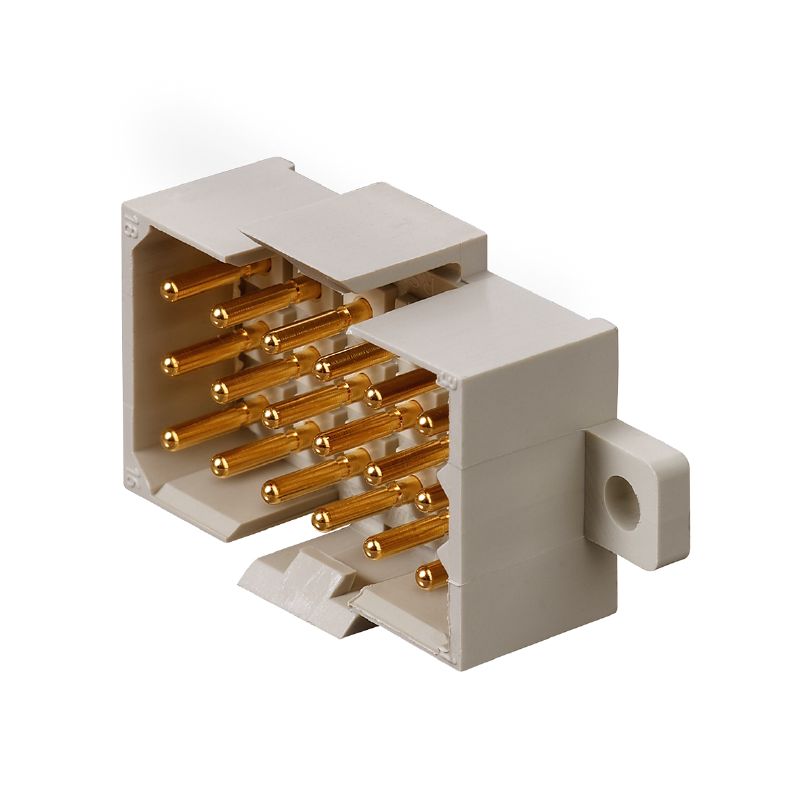

Product image
Similar to illustration
RSV1,6 LSF18 GR 3,2 AU
Product image
RSV1,6 LSF18 GR 3,2 AU
Product image
RSV1,6 LSF18 GR 3,2 AU
Dimensional drawing
RSV1,6 LSF18 GR 3,2 AU
Graph
RSV1,6 LSF18 GR 3,2 AU
Graph

RSV1,6 LSF18 GR 3,2 AU

PCB plug-in connector, male header, Flange, THT solder connection, 5.00 mm, Number of poles: 18, 180°, Solder pin length (l): 3.2 mm, Gold-plated, Pebble grey, Box

Ürün No. 1444800000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 1 İlgili ürünler 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E92202

General ordering data

Version
PCB plug-in connector, male header, Flange, THT solder connection, 5.00 mm, Number of poles: 18, 180°, Solder pin length (l): 3.2 mm, Gold-plated, Pebble grey, Box
Order No.
1444800000
Type
RSV1,6 LSF18 GR 3,2 AU
GTIN (EAN)
4008190152642
Qty.
25  adet
Product data
IEC: 500 V / 14 A
UL: 300 V / 10 A
Packaging
Box

Dimensions and weights

Depth
32,6  mm
Depth (inches)
1,283  inch
Height
11,8  mm
Height (inches)
0,465  inch
Height of lowest version
11,8  mm
Width
23,8  mm
Width (inches)
0,937  inch
Net weight
7,462  g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
68d3d3f5-e017-411e-997f-7ad2b75c9062

System specifications

Product family
OMNIMATE Signal - series RSV
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
5  mm
Pitch in inches (P)
0,197  "
Outgoing elbow
180°
Number of poles
18
Number of solder pins per pole
1
Solder pin length (l)
3,2  mm
Solder pin dimensions
d = 0.97 mm
Solder eyelet hole diameter (D)
1,3  mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
25  mm
L1 in inches
0,984  "
Number of rows
3
Pin series quantity
3
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch, plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged
Can be coded
Yes
Plugging force/pole, max.
9  N
Pulling force/pole, max.
18  N

Material data

Insulating material
PA 66/6
Colour
Pebble grey
Colour chart (similar)
RAL 7032
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
Gold-plated
Storage temperature, min.
-40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
-50  °C
Operating temperature, max.
100  °C
Temperature range, installation, min.
-25  °C
Temperature range, installation, max.
100  °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
14  A
Rated current, max. number of poles (Tu=20°C)
10  A
Rated current, min. number of poles (Tu=40°C)
12  A
Rated current, max. number of poles (Tu=40°C)
8,5  A
Rated voltage for surge voltage class / pollution degree II/2
500  V
Rated voltage for surge voltage class / pollution degree III/2
320  V
Rated voltage for surge voltage class / pollution degree III/3
250  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5  kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2,5  kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4  kV
Short-time withstand current resistance
3 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
53975-13
Rated voltage (Use group C / CSA)
300  V
Rated current (Use group C / CSA)
13  A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E92202
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
178  mm
VPE width
115  mm
VPE height
47  mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Spacing between rows: see hole layout
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 6.0
EC002637
ETIM 7.0
EC002637
ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 9.0
27-44-04-02
ECLASS 9.1
27-44-04-02
ECLASS 10.0
27-44-04-02
ECLASS 11.0
27-46-02-01
ECLASS 12.0
27-46-02-01
ECLASS 13.0
27-46-02-01
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
