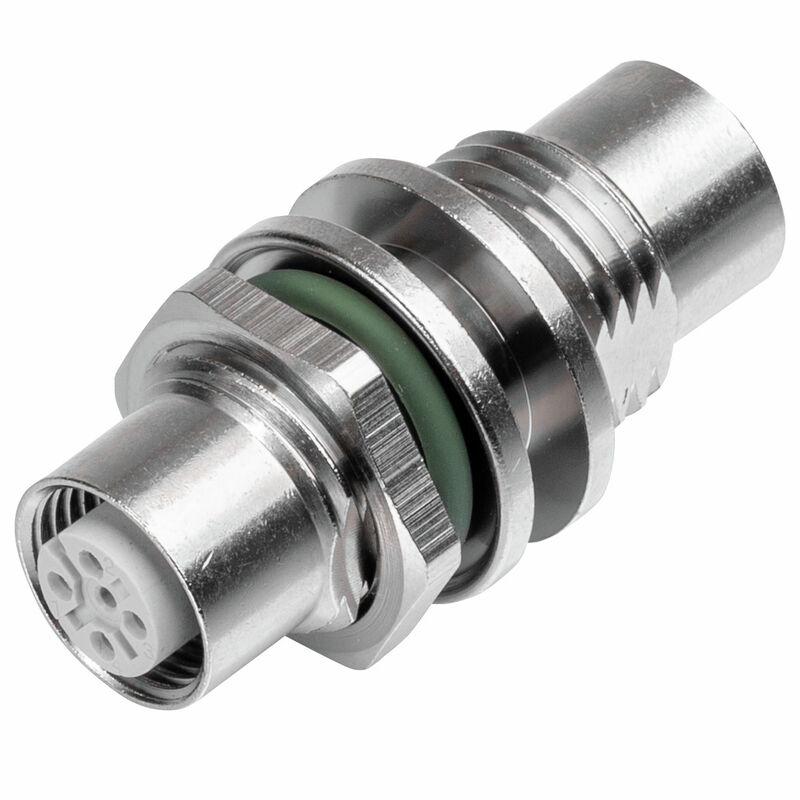

SAI-WDF-M12BB-5P-A-COD-M16
SAI-WDF-M12BB-5P-A-COD-M16

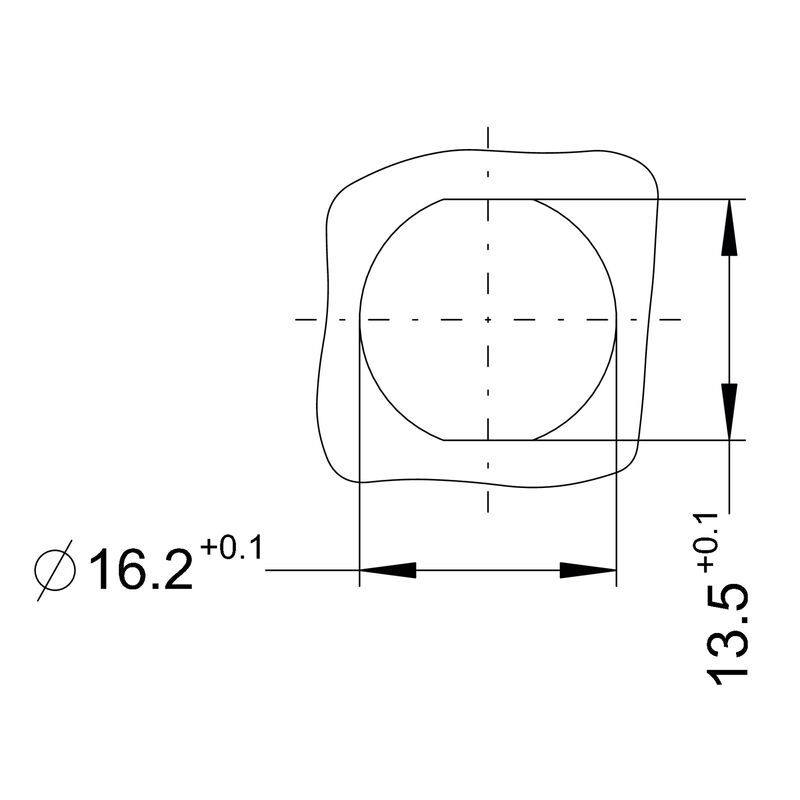

Dimensioned drawing
SAI-WDF-M12BB-5P-A-COD-M16

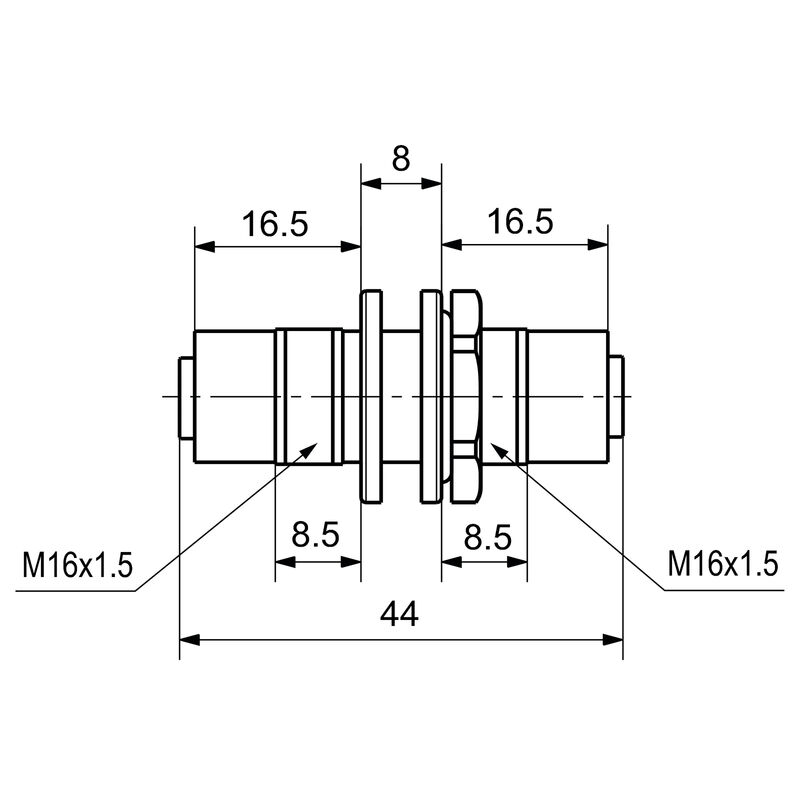

Detailed drawing
SAI-WDF-M12BB-5P-A-COD-M16
Pole scheme
M12 = A-coded
SAI-WDF-M12BB-5P-A-COD-M16

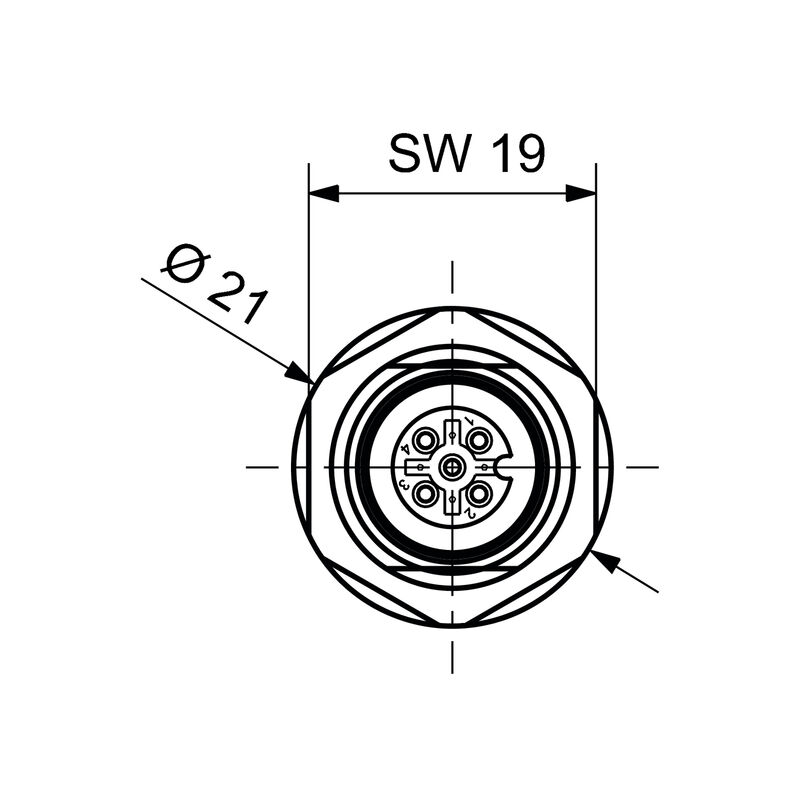

Detailed drawing

SAI-WDF-M12BB-5P-A-COD-M16

Ürün No. 2964480000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data customisable plug-in connectors Standards General technical specifications Classifications

Approvals

ROHS
Conform

General ordering data

Order No.
2964480000
Type
SAI-WDF-M12BB-5P-A-COD-M16
GTIN (EAN)
4099986768901
Qty.
1  adet

Dimensions and weights

Net weight
10  g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%

Technical data customisable plug-in connectors

Coding
A-coded
Contact material
CuZn
Contact surface
Gold-plated
Housing main material
CuZn
Insulation resistance
≥ 100 MΩ
Nominal current
4  A
Nominal voltage
50  V
Number of poles
5
Plugging cycles
≥ 200
Protection degree
IP67
when screwed in
Temperature range of housing
-40 … +85 ° C
Type of connection
Screw connection

Standards

Connector standard
IEC 61076-2-101

General technical specifications

Coding
A-coded
Connection thread
M12 / M12
Contact material
CuZn
Contact surface
Gold-plated
Housing main material
CuZn
Insulation resistance
≥ 100 MΩ
Nominal current
4  A
Nominal voltage
50  V
Number of poles
5
O-Ring
Viton
Plugging cycles
≥ 200
Protection degree
IP67
when screwed in
Temperature range of housing
-40 … +85 ° C
Type of connection
Screw connection

Classifications

ETIM 6.0
EC002925
ETIM 7.0
EC002925
ETIM 8.0
EC002925
ETIM 9.0
EC002925
ETIM 10.0
EC002925
ECLASS 9.0
27-44-01-06
ECLASS 9.1
27-44-01-06
ECLASS 10.0
27-44-01-06
ECLASS 11.0
27-44-01-06
ECLASS 12.0
27-44-01-06
ECLASS 13.0
27-44-01-06
ECLASS 14.0
27-44-01-06
ECLASS 15.0
27-44-01-06
