SAIBGI-P-4A-2.9/5.1-M12
SAIBGI-P-4A-2.9/5.1-M12

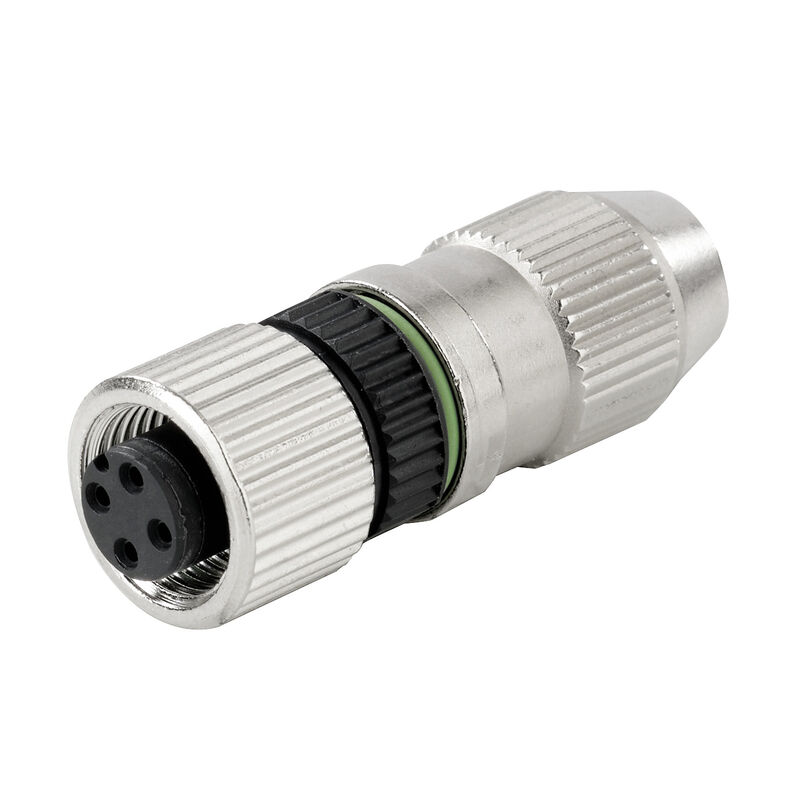

Product image
SAIBGI-P-4A-2.9/5.1-M12
Pole scheme

SAIBGI-P-4A-2.9/5.1-M12

Field attachable connector, M12

Product ID 1781540001
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 16
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data customisable plug-in connectors General Info Standards Classifications

Approvals

ROHS
Conform

General ordering data

Version
Field attachable connector, M12
Order No.
1781540001
Type
SAIBGI-P-4A-2.9/5.1-M12
GTIN (EAN)
4032248430017
Qty.
1  items

Dimensions and weights

Width
15,3  mm
Width (inches)
0,602  inch
Net weight
22  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data customisable plug-in connectors

Assignment
Pin 1 - 4
Cable diameter, max.
5,1  mm
Cable diameter, min.
2,9  mm
Coding
A-coded
Conductor cross-section, max.
0,34  mm²
Conductor cross-section, min.
0,14  mm²
Contact surface
tinned
Gender of contact
Female
Housing main material
CuZn
Insulation strength
108 Ω
Number of poles
4
Plugging cycles
≥ 50
Pollution severity
3
Protection degree
IP67
Rated current
4  A
Rated voltage
32  V
Shield connection
No
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Type of connection
Insulation displacement connection

General Info

Number of poles
4
Connection 1
M12
Connection 2
IDC
Description of article
SAIS IDC / SAIB IDC
Housing main material
CuZn
Connection thread
M12
Contact surface
tinned
Protection degree
IP67
Plugging cycles
≥ 50

Standards

Connector standard
IEC 61076-2-101

Classifications

ETIM 6.0
EC002635
ETIM 7.0
EC002635
ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 9.0
27-44-01-02
ECLASS 9.1
27-44-01-03
ECLASS 10.0
27-44-01-02
ECLASS 11.0
27-44-01-02
ECLASS 12.0
27-44-01-16
ECLASS 13.0
27-44-01-02
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
