SAIBGP-M-4D-M12-WDF
SAIBGP-M-4D-M12-WDF

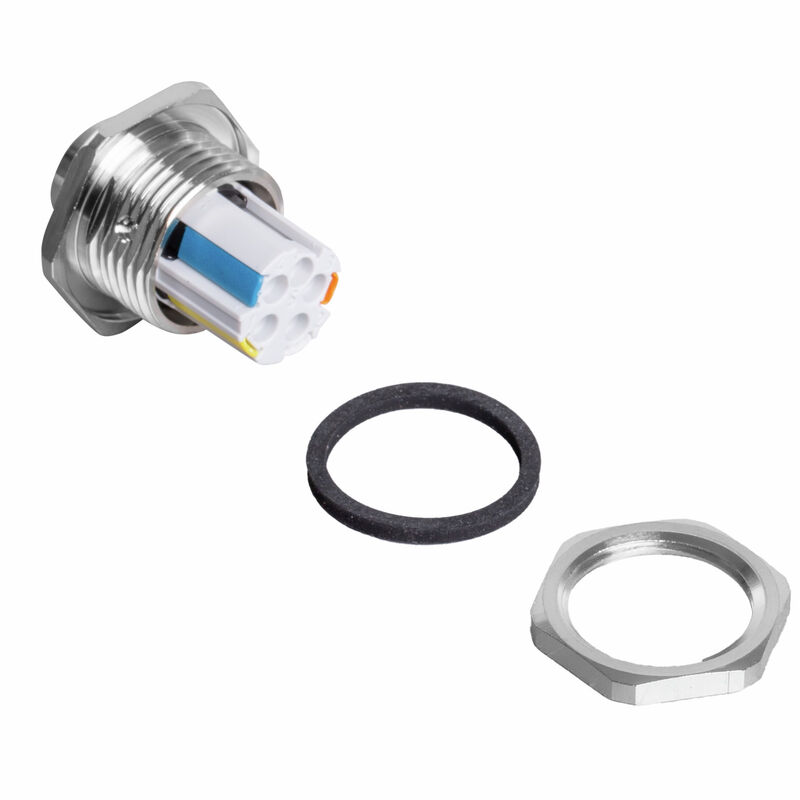

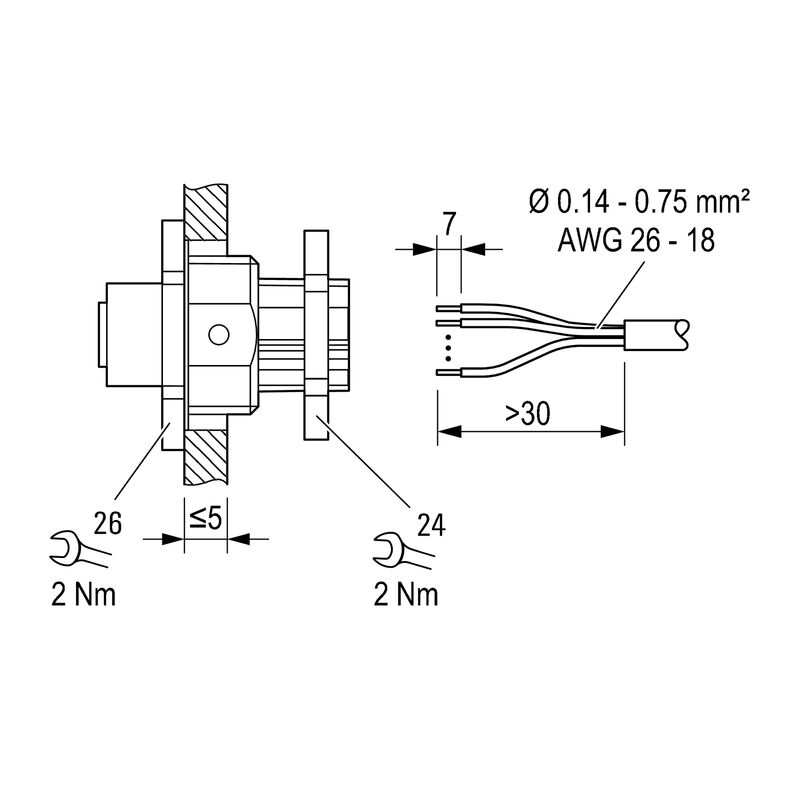

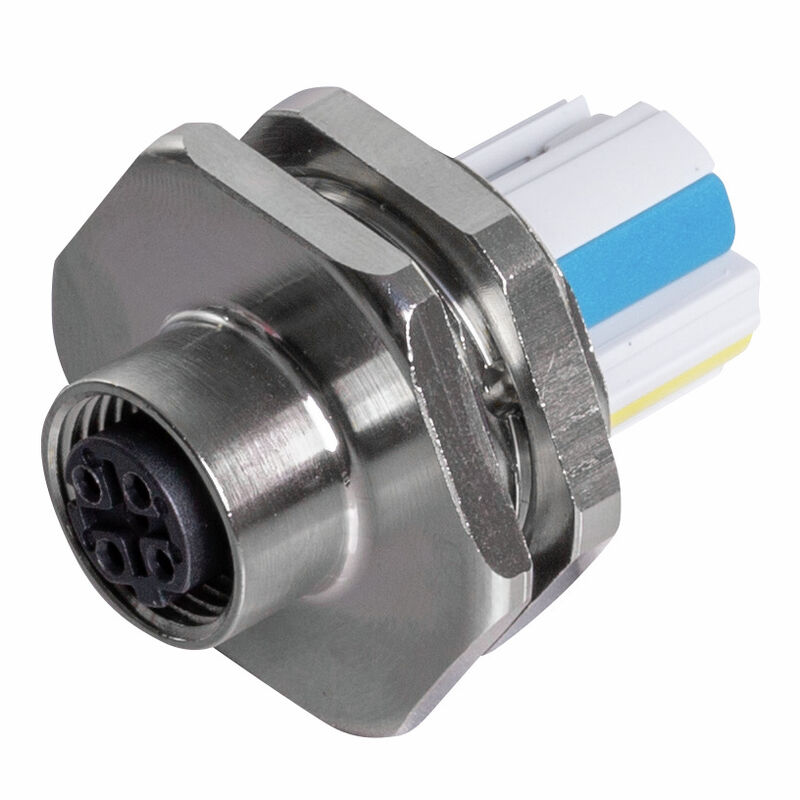

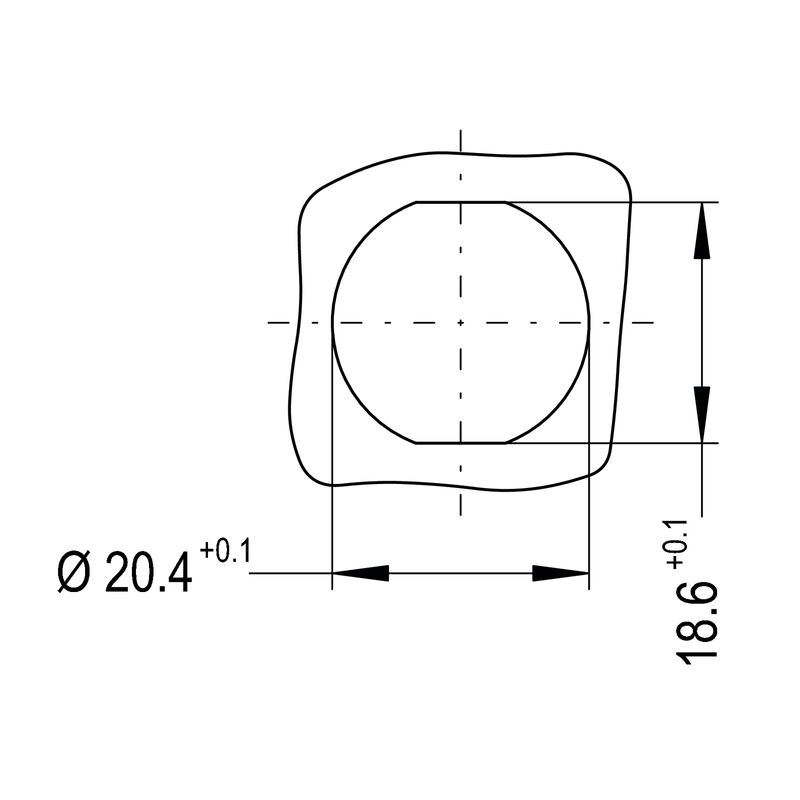

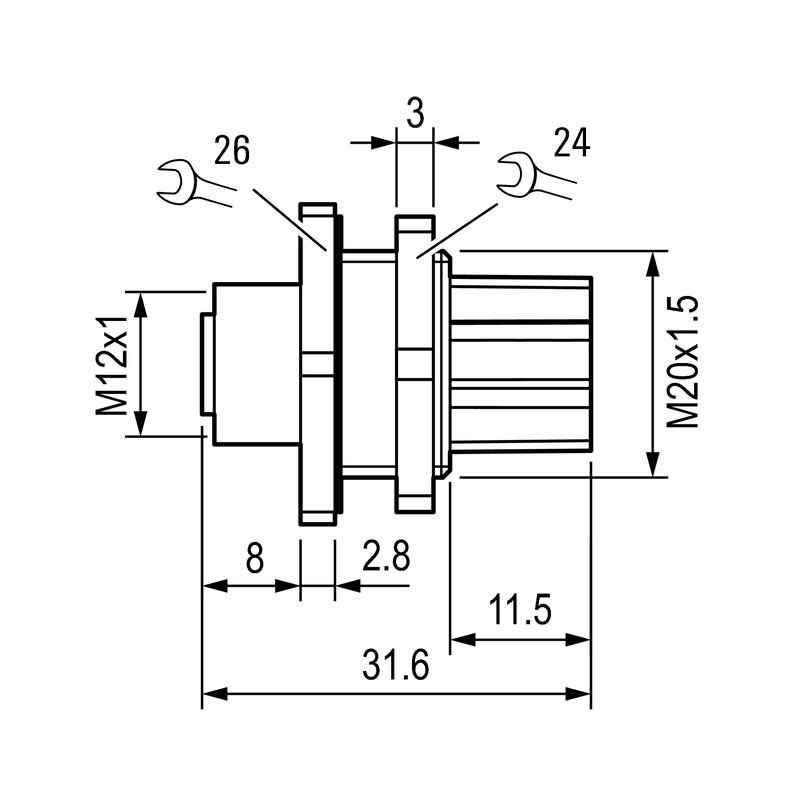

Dimensioned drawing
SAIBGP-M-4D-M12-WDF

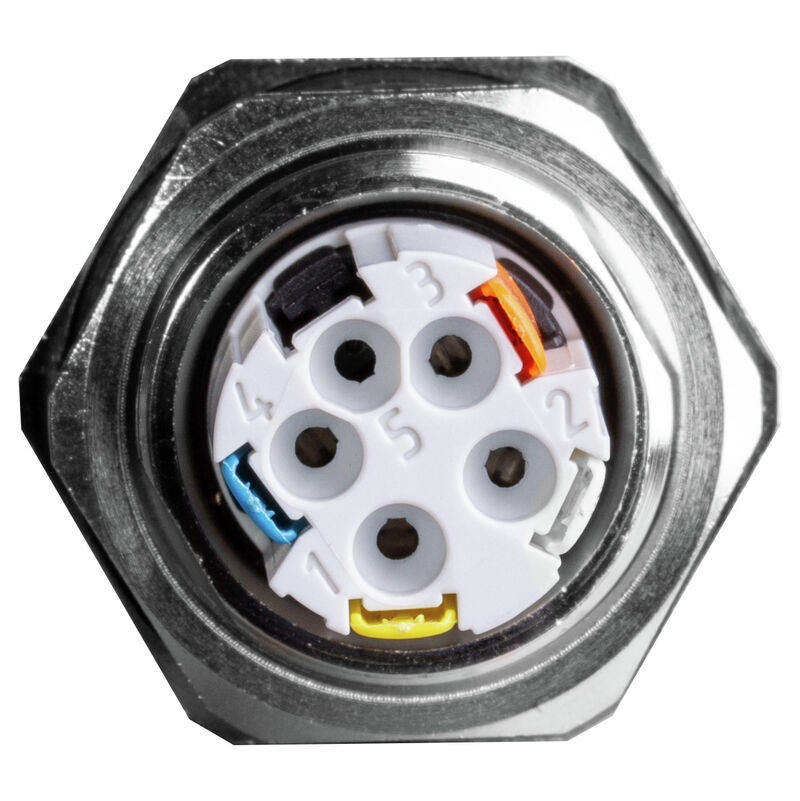

Pole scheme
M12 = D-coded
SAIBGP-M-4D-M12-WDF
SAIBGP-M-4D-M12-WDF
SAIBGP-M-4D-M12-WDF
SAIBGP-M-4D-M12-WDF

SAIBGP-M-4D-M12-WDF

Ürün No. 3150970000
Veri sayfasını indir Mühendislik desteği
Aksesuarlar 1 İlgili ürünler 2
Approvals Dati generali per l’ordinazione Dimensioni e pesi Conformité environnementale du produit Technical data customisable plug-in connectors Datos generales Electrical properties Standards General technical specifications Classificazioni

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conforme
UL File Number Search
[Sito web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

Dati generali per l’ordinazione

Order No.
3150970000
Type
SAIBGP-M-4D-M12-WDF
GTIN (EAN)
4099987610896
Qty.
1 Pezzo

Dimensioni e pesi

Diametro
29 mm
Wall thickness, max.
5 mm
Net weight
27 g

Conformité environnementale du produit

RoHS Compliance Status
Conforme sans exemption
REACH SVHC
No SVHC superiori a 0,1 wt%

Technical data customisable plug-in connectors

Cable diameter, max.
8 mm
Cable diameter, min.
4 mm
Coding
D-coded
Conductor cross-section, max.
0,75 mm²
Conductor cross-section, min.
0,14 mm²
Contact surface
Ni/Au
Gender of contact
Female
Housing main material
PA 66
Insulation resistance
≥ 100 MΩ
LED
No
Nominal current
4 A
Nominal voltage
48 V
Number of poles
4
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Rated voltage
  • Rated voltage:
    48 V
  • Voltage type:
    AC
  • Rated voltage:
    60 V
  • Voltage type:
    DC
Shield connection
Yes
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Diecast zinc
Type of connection
PUSH IN

Datos generales

Number of poles
4
Connection 1
M12
Connection 2
PUSH IN
UL 94 flammability rating
V-0
Housing main material
PA 66
Ścieżka połączenia
M12
Поверхность контакта
Ni/Au
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 18
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross section, finely stranded, max.
0,75 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,08 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
0,5 mm²
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, max.
0,75 mm²
Shielding
Yes
Protection degree
IP67
Plugging cycles
≥ 100

Electrical properties

Insulation resistance
≥ 100 MΩ
Nominal voltage
48 V

Standards

Connector standard
IEC 61076-2-101

General technical specifications

Coding
D-coded
Connection thread
M12
Contact surface
Ni/Au
Housing main material
PA 66
Insulation resistance
≥ 100 MΩ
LED
No
Nominal current
4 A
Nominal voltage
48 V
Number of poles
4
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Diecast zinc
Type of connection
PUSH IN
UL 94 flammability rating
V-0
Wire connection cross section, finely stranded, max.
0,75 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire cross-section, solid, max.
0,75 mm²
Wire cross-section, solid, min.
0,14 mm²

Classificazioni

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
