SAIE-M12B-5-2.0V-HW-PG9
SAIE-M12B-5-2.0V-HW-PG9
Wiring diagram
SAIE-M12B-5-2.0V-HW-PG9
Pole scheme
M12 = A-coded
SAIE-M12B-5-2.0V-HW-PG9

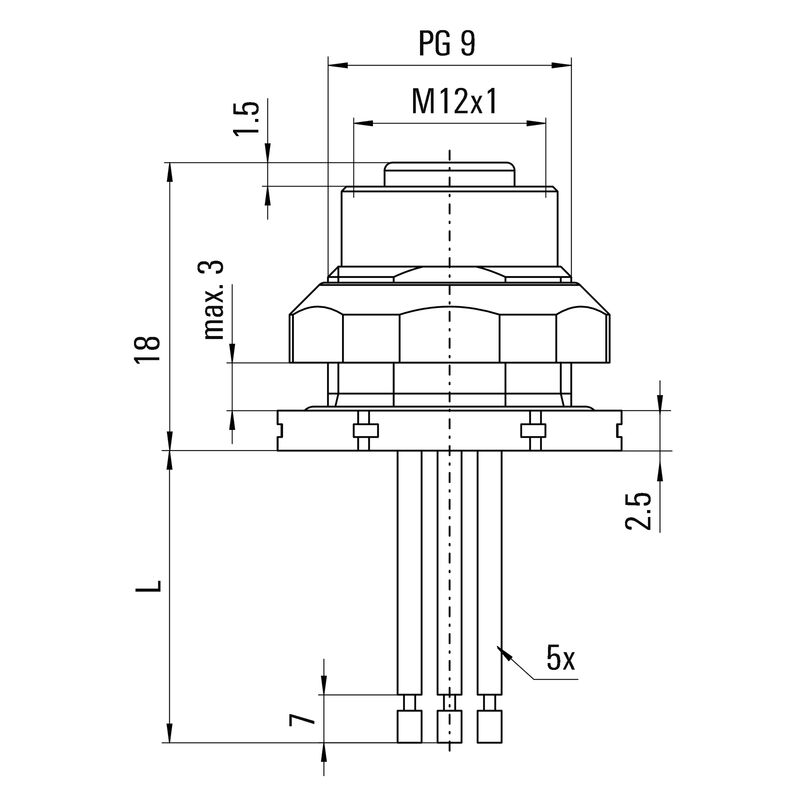

Dimensioned drawing
SAIE-M12B-5-2.0V-HW-PG9

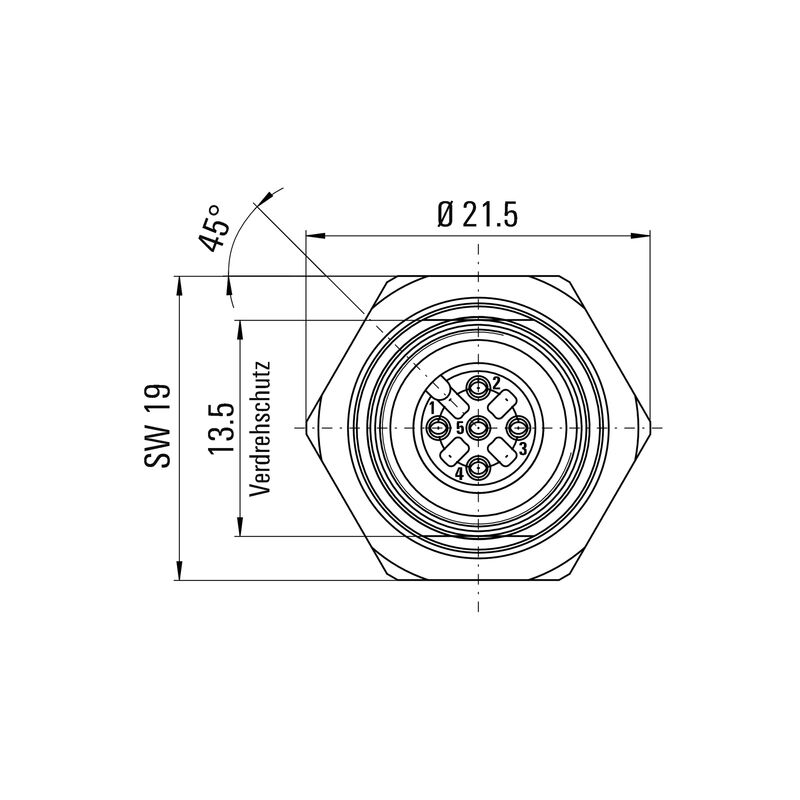

Dimensioned drawing
SAIE-M12B-5-2.0V-HW-PG9

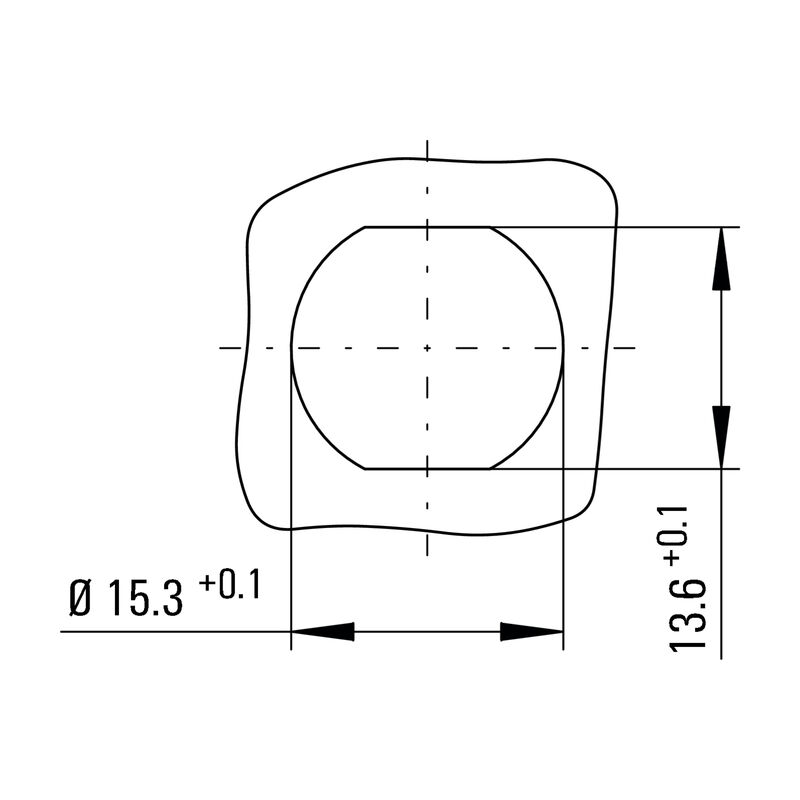

Detailed drawing

SAIE-M12B-5-2.0V-HW-PG9

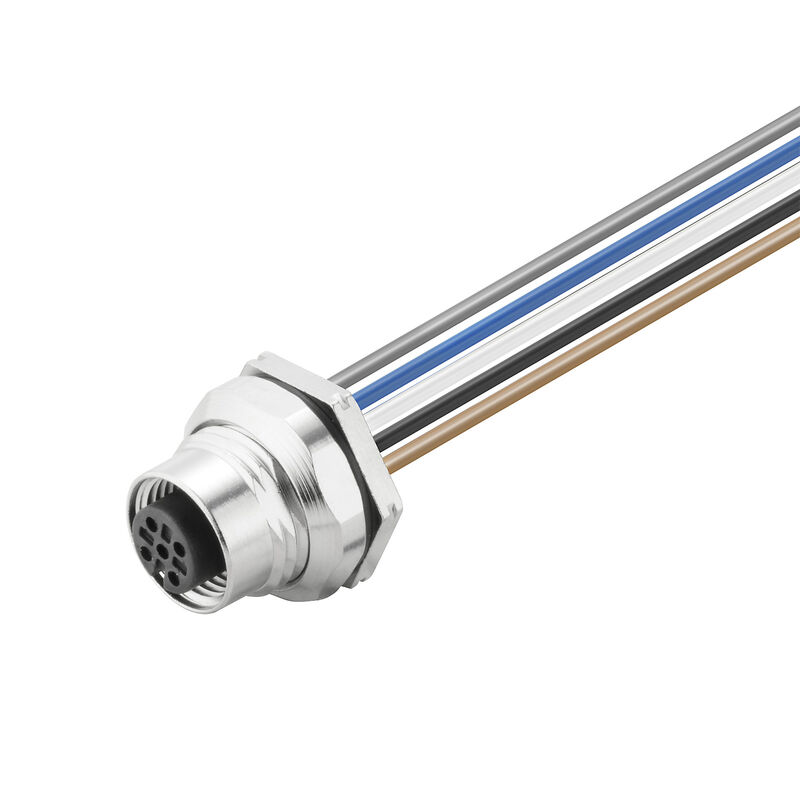

Built-in plugs, Mounting thread: PG 9, Number of poles: 5, Strand / cable length: 2 m, Rear panel mounting

Ürün No. 1233320000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable Technical data customisable plug-in connectors Standards General data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Built-in plugs, Mounting thread: PG 9, Number of poles: 5, Strand / cable length: 2 m, Rear panel mounting
Order No.
1233320000
Type
SAIE-M12B-5-2.0V-HW-PG9
GTIN (EAN)
4050118016765
Qty.
1  adet

Dimensions and weights

Net weight
76  g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical specifications for cable

Cable length
2  m
Colour coding
brown
white
blue
black
grey
Core cross-section
0,34  mm²
Number of poles
5
Sheath material
PVC
Strand / cable length
2  m

Technical data customisable plug-in connectors

Coding
A-coded
Contact material
CuSn
Contact surface
Gold-plated
Housing main material
Zinc diecast
Insulation resistance
108 Ω
Nominal current
4  A
Nominal voltage
60  V
Number of poles
5
Pollution severity
3
Protection degree
IP67
when screwed in
Temperature range of housing
-30…+90 °C
Type of connection
Socket connector

Standards

Connector standard
IEC 61076-2-101

General data

AF size
19  mm
Cable length
2  m
Coding
A-coded
Conductor O.D.
-
Connection 1
M12
Connection 2
Flying wires
Contact material
CuSn
Contact surface
Gold-plated
Core cross-section
0,34  mm²
Housing main material
Zinc diecast
Insulation resistance
108 Ω
Mounting thread
PG 9
Nominal current
4  A
Nominal voltage
60  V
Number of poles
5
Pollution severity
3
Protection degree
IP67
when screwed in
Sheath material
PVC
Strand / cable length
2  m
Temperature range of housing
-30…+90 °C
Type of connection
Socket connector
Type of mounting
Rear panel mounting

Classifications

ETIM 6.0
EC002635
ETIM 7.0
EC003570
ETIM 8.0
EC003570
ETIM 9.0
EC003570
ETIM 10.0
EC003570
ECLASS 9.0
27-44-01-03
ECLASS 9.1
27-44-01-03
ECLASS 10.0
27-44-01-03
ECLASS 11.0
27-44-01-03
ECLASS 12.0
27-44-01-03
ECLASS 13.0
27-44-01-03
ECLASS 14.0
27-44-01-03
ECLASS 15.0
27-44-01-03
