SAIP-M12GM12G-3-5.0U

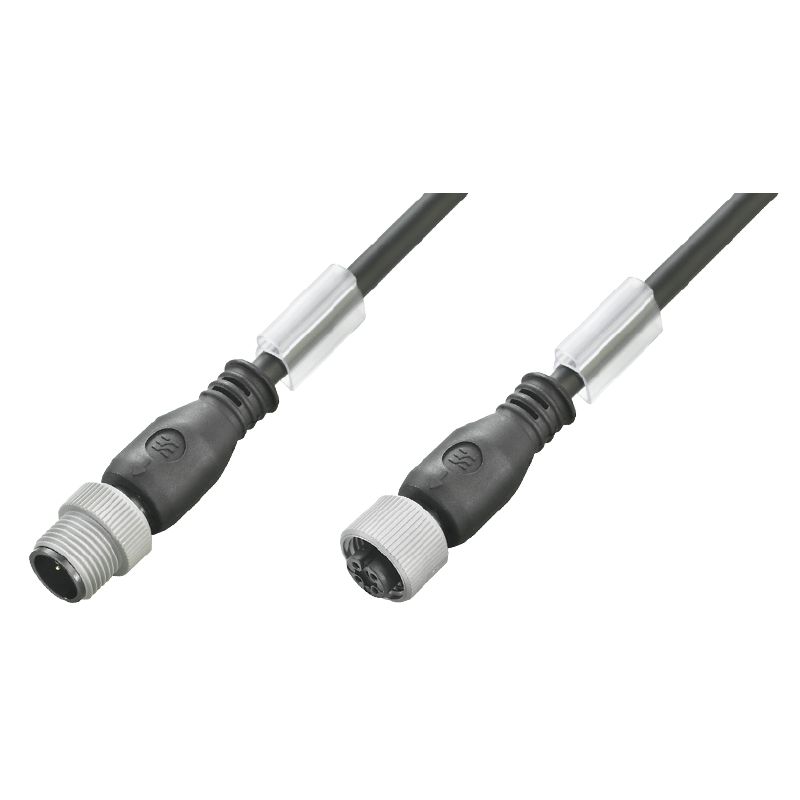

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 5 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1108830500
Download datablad Produktdownloads Engineering-support
Tilbehør 6 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Caractéristiques techniques câble Dati tecnici generali Electrical properties Standard generali Norme Plug, left Plug, right Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cULus)
E307231

General ordering data

Ausfuehrung
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 5 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Best.-Nr.
1108830500
Art
SAIP-M12GM12G-3-5.0U
GTIN (EAN)
4032248888115
Qty.
1 Styk

Dimensions and weights

Net weight
149 g

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant with exemption
RoHS-Ausnahme (falls zutreffend/bekannt)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Caractéristiques techniques câble

Acceleration
5 m/s²
Außendurchmesser
4.3 mm ± 0.2 mm
Bending cycles
12 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x diametro cavo
Bending radius, min., stationary
5 x diametro cavo
Cable length
5 m
Colour coding
marrone
blu
Nero
Configurable cable length
No
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
LABS-free
Yes
Length of torsion
1 m
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Polzahl
3
Resistance to oils
in accordance with IEC 60811:404
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
5 m/s
Suitable for cable carriers
Yes
Temperature range, stationary
-40...80 °C
Teplotní rozpětí, pohyblivé
-25...80 °C
Torsion resistance
360 °/m
Welding spark resistance
No

Dati tecnici generali

Ciclos de enchufado
≥ 100
Codificación
Codificato A
Corriente nominal
4 A
Grado de polución
3
LED
No
Material capotas
PUR
puenteado
No
Resistencia del aislamiento
108 Ω
Rosca de conexión
M12 / M12
Superficie de contacto
Gold-plated
Temperature range of housing
-25…+85 °C
Tensión nominal
250 V
Threaded ring material
Plastic
Tightening torque
M12 (plastic): 0.9 - 1.1 Nm
Tipo de protección
IP65
IP66
IP67
IP68
when screwed in
Versión
pin, straight - socket, straight

Electrical properties

Isolationswiderstand
108 Ω
Nennspannung
250 V

Standard generali

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Norme

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, straight, Plastic, unshielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
