SCS 24VDC P1SIL3ES LL-T
SCS 24VDC P1SIL3ES LL-T

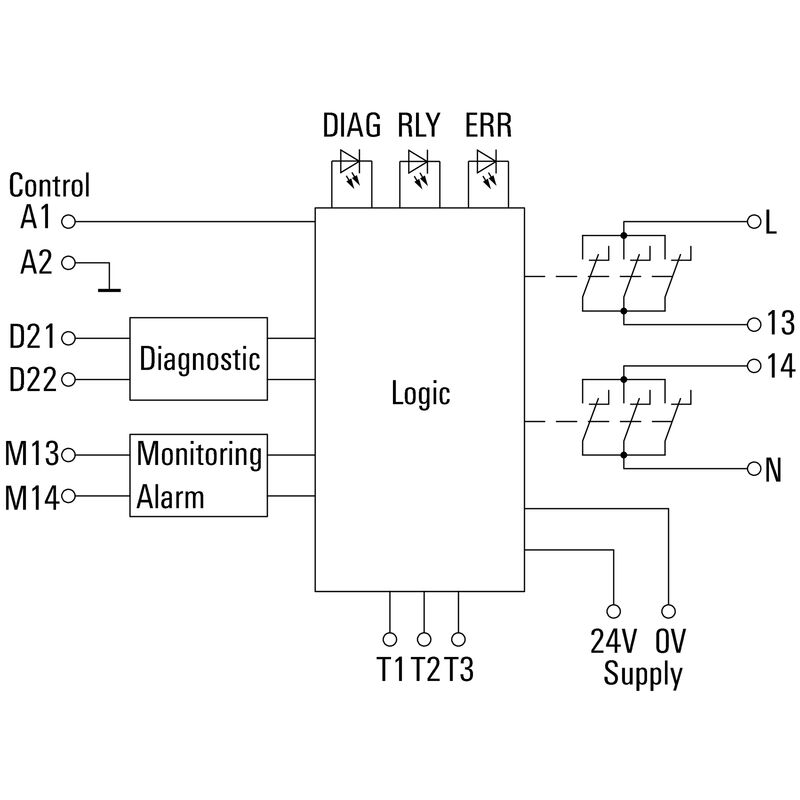

Schéma připojení
SCS 24VDC P1SIL3ES LL-T
Graph

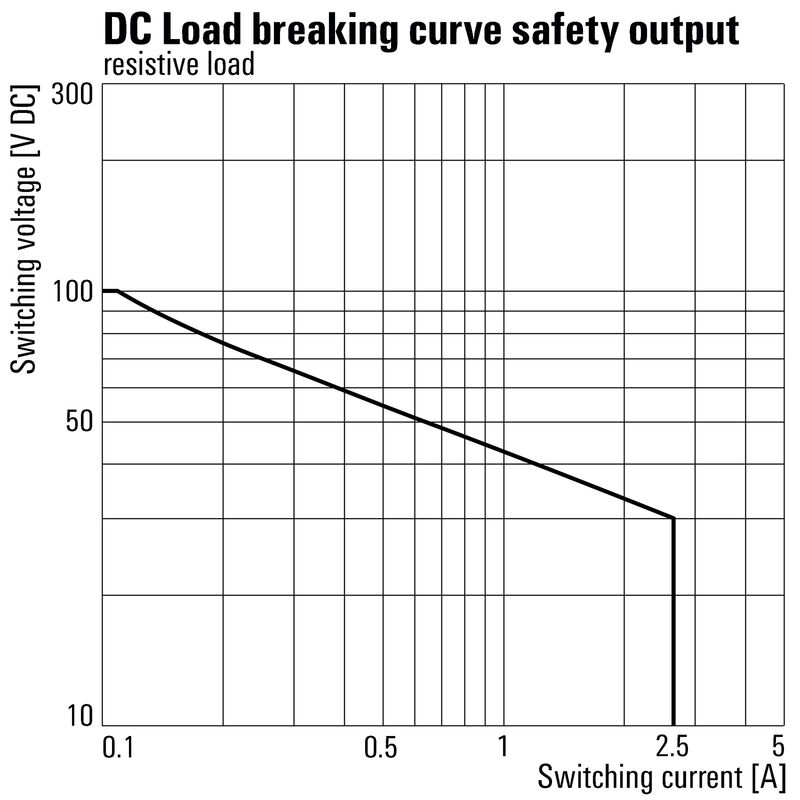

DC mezní zatěžovací křivka Odporová zátěž
SCS 24VDC P1SIL3ES LL-T

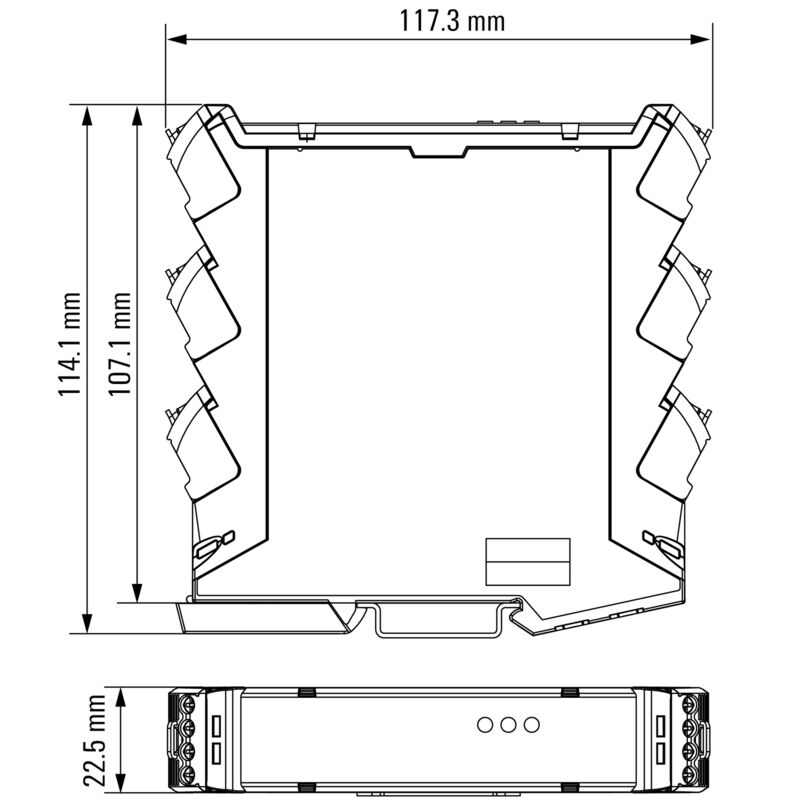

Dimensional drawing
SCS 24VDC P1SIL3ES LL-T
Miscellaneous

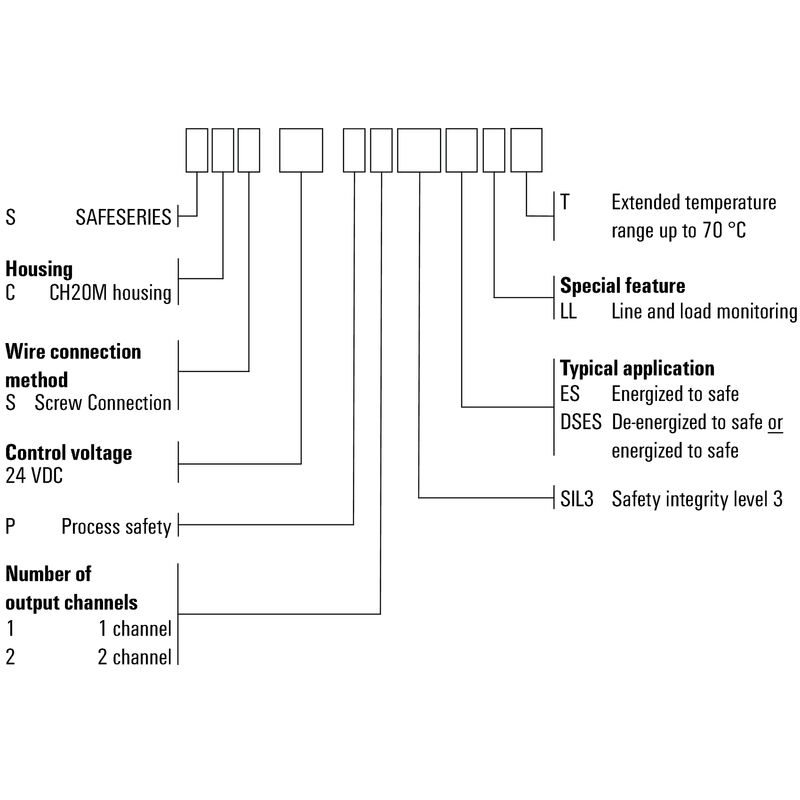

Kódy typů

SCS 24VDC P1SIL3ES LL-T

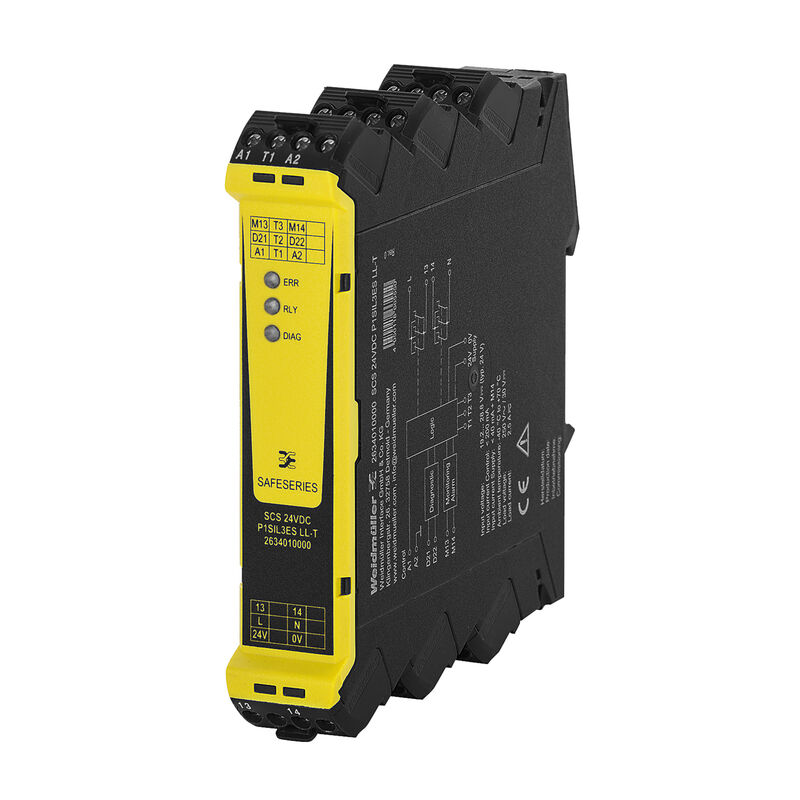

Safety relay, 24 V DC ± 20%, , Max. switching current, internal fuse : , Safety category: SIL 3 EN 61508:2010

Tuotteen tunnus 2634010000
Avaa konfiguraattorissa
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 18 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Input (power supply) Input (safety circuit) Test inputs (safety circuit) Output (safety circuit) Alarm output Diagnostic output Safety-related basic specifications General data Insulation coordination Further details of approvals / standards Connection data Ratings IECEx/ATEX/cUL Classifications

Approvals

Dopuszczenia
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/c809b3ab-e765-499c-852e-d528779da9f7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197
Certificate no. (cULusEX)
E324123

General ordering data

Wersja
Safety relay, 24 V DC ± 20%, , Max. switching current, internal fuse : , Safety category: SIL 3 EN 61508:2010
Nr zam.
2634010000
Typ
SCS 24VDC P1SIL3ES LL-T
GTIN (EAN)
4050118665550
Ilość
1 items

Dimensions and weights

Głębokość
119,2 mm
Depth (inches)
4,693 inch
Wysokość
113,6 mm
Height (inches)
4,472 inch
Szerokość
22,5 mm
Width (inches)
0,886 inch
Net weight
240 g

Temperatures

Температура хранения
-40 °C...85 °C
Temperatura otoczenia
-40 °C…70 °C
Humidity
95 %, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS-undantag (om tillämpligt/känt)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
807f1906-ce90-4f93-8801-4b128b343e6b

Input (power supply)

Oznaczenie przyłącza
0V
24 V
Номинальное управляющее напряжение
24 V DC ±20 %
Strömförbrukning
<40 mA + M14
Protective circuit
Reverse polarity protection

Input (safety circuit)

Označení připojení (bezpečnostní obvod)
A1
A2
Jmenovité řídicí napětí
24 V DC ± 20%
Current consumption
71 mA
Status indicator
LED yellow (RLY): lights up when input circuit (A1,A2) of the device is actuated
Protective circuit
Reverse polarity protection
Free-wheeling diode

Test inputs (safety circuit)

Označení připojení (bezpečnostní test)
T1
T2
T3
Jmenovité řídicí napětí
24 V DC ±20 %
Number of test inputs
3

Output (safety circuit)

결선 지정(안전 출력)
L
N
13
14
Design contatto
1 x energised to safe (NO contact)
Érintkező alapanyaga
AgNi gold flashed
Tensione di commutazione max. consentita
250 V AC
Corriente de conmutación máx., fusible externo
2,5 A
최대 스위칭 용량
625 VA
External back-up fuse
2.5 A (slow blow)
Switch-on time
50 ms
Min. switching capacity
30 mA @ 15 V

Alarm output

Connection designation (Alarm output)
M13
M14
Digital output (Alarm output)
1 DO
Solid-state type (Alarm output)
MOS-FET high-active
output current, max. (Alarm output)
100 mA
Short-circuit-proof (Alarm output)
Yes, without time limit
Voltage drop at max. load (Alarm output)
1,5 V
Status indicator (Alarm output)
LED red (ERR): flashes when device detects a fault, supply voltage applied and input circuit (A1, A2) not actuated

Diagnostic output

Connection designation (Diagnostic output)
D21
D22
Switching voltage, max.(Diagnostic output)
30 V
Switching, current, max. (Diagnostic output)
100 mA
switching capacity, min. (Diagnostic output)
1 mW
Contact design (Diagnostic output)
1 NC contact
Contact material (Diagnostic output)
AgNi gold-plated
Status indicator (Diagnostic output)
LED green (DIAG): lights up when supply voltage applied and input circuit (A1, A2) not actuated

Safety-related basic specifications

Készülék típusa
A
Biztonság kategória
SIL 3
Norme de sécurité
EN 61508:2010

General data

Operating altitude
≤ 2000 m
above sea level
Mounting rail
TS 35
Colour
black
yellow

Insulation coordination

Insulation coordination according to
EN 61010-2-201
Rated voltage
300 V
Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
≥ 6 mm
Dielectric strength for control side - load side
3.51 kVeff /1 min.
Protection degree
IP20

Further details of approvals / standards

Certificate no. (cULus)
E141197

Connection data

Vezetékcsatlakozás-technika
Screw connection
Longueur de dénudage, raccordement nominal
8 mm
Coppia di serraggio, min.
0,4 Nm
Meghúzási nyomaték, max.
0,6 Nm
Campo di serraggio, collegamento di dimensionamento
1,5 mm²
Clamping range, min.
0,13 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 12
Wire cross-section, solid, min.
0,2 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,2 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,2 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
2,5 mm²
Blade size
size PH0

Ratings IECEx/ATEX/cUL

nr certyfikatu (ATEX)
UL20ATEX2457X
Tanúsítvány száma (IECEX)
IECExULD20.0032X
Nr certyfikatu (cULus)
E141197
Certificate no. (cULusEX)
E324123
Marking EN 60079
Ex ec nC IIC T4 Gc

Classifications

ETIM 8.0
EC001449
ETIM 9.0
EC001449
ETIM 10.0
EC001449
ECLASS 14.0
27-37-18-19
ECLASS 15.0
27-37-18-19
