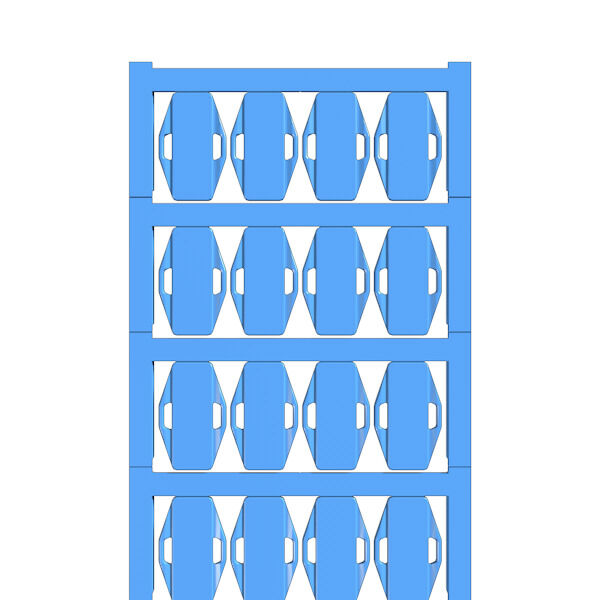

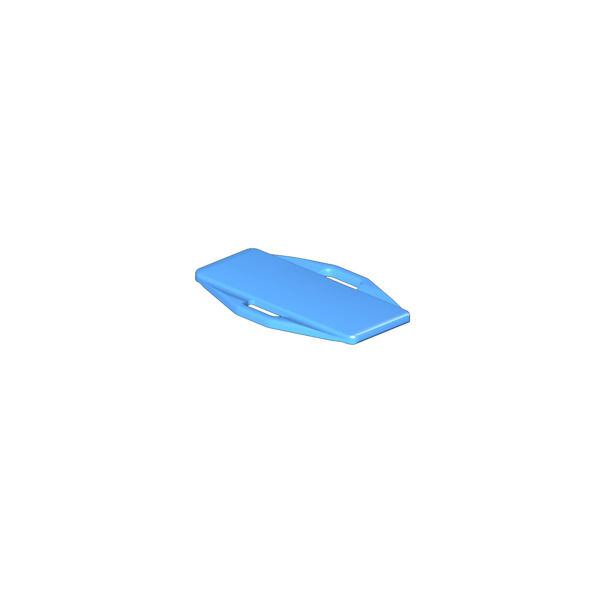

Conductor and cable markers, 7 - 40 mm, 24 x 15 mm, blue

Tuotteen tunnus 2622440000
Lataa tietosivu Tuotelataukset Tekninen tuki
Samankaltaiset tuotteet 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Versión
Conductor and cable markers, 7 - 40 mm, 24 x 15 mm, blue
Código
2622440000
Tipo
SFX-DT 9/24 MC SDR
GTIN (EAN)
4050118623468
Qty.
32 items

Dimensions and weights

Profundidad
0,8 mm
Depth (inches)
0,031 inch
Altura
24 mm
Height (inches)
0,945 inch
Anchura
15 mm
Width (inches)
0,591 inch
Net weight
0,71 g

Temperatures

Gama de temperaturas de servicio
-40...100 °C

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.011 kg CO2 eq.

General data

Basic material
Polyamide 66
Bredd
15 mm
Brännbarhetsklass enligt UL 94
HB
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Detectible in accordance with Rondotest
4.7 mm Al
Halogen
No
Number of markers per combination
1 MultiCard = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, min.
-40 °C
Printed characters
To customer specification
Recommended industries
Food processing industry
Size of labelling field
23.9 x 9 mm
Temperaturområde för användning max.
100 °C
Utförande
Installation with cable ties
颜色编码
blue

Conductor and cable markers

Conductor O.D., min.
7 mm
Diametro esterno del conduttore, max.
40 mm
Halogène
No
Ledarytterdiameter
7 - 40 mm
Sección de conexión del conductor, max.
500 mm²
Vezeték-keresztmetszet, min.
16 mm²
Сечение соединительного провода
16 - 500 mm²

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
