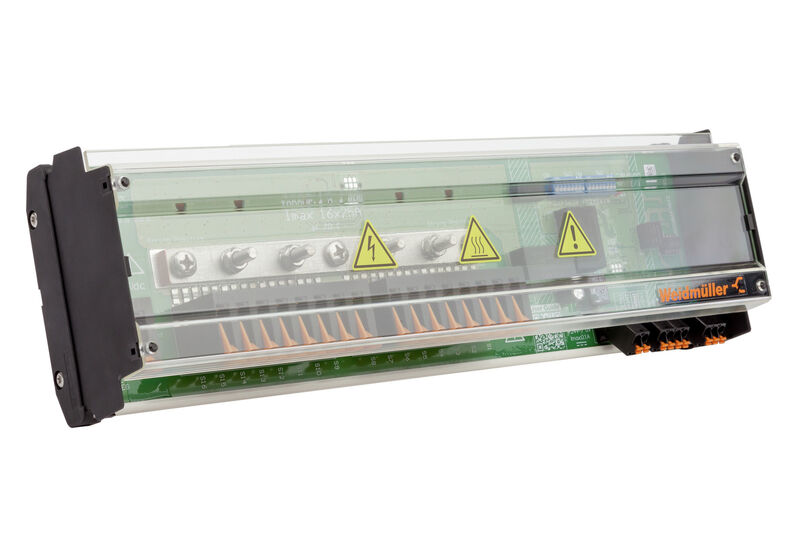

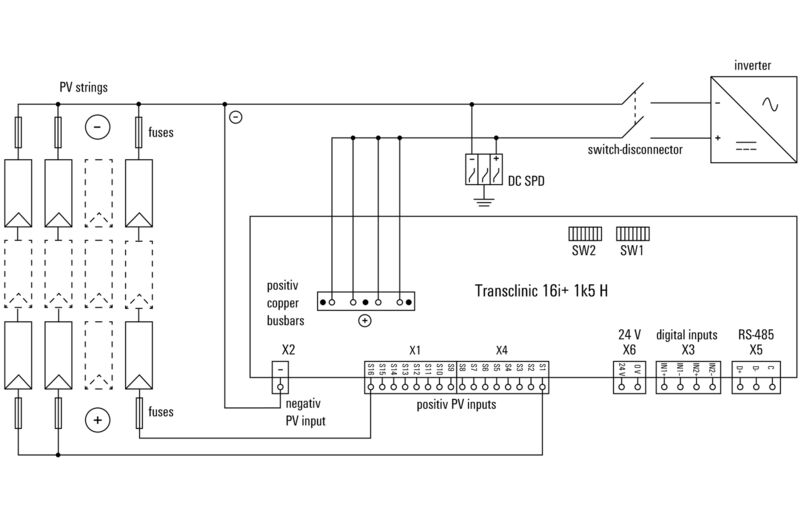

TRANSCLINIC 16I+ 1K5 H
TRANSCLINIC 16I+ 1K5 H

TRANSCLINIC 16I+ 1K5 H

Photovoltaics, Current monitoring, 16-channel, 1500 V

Ürün No. 2502520000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technical data Classifications

Approvals

Сертификаты
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Photovoltaics, Current monitoring, 16-channel, 1500 V
Order No.
2502520000
種別
TRANSCLINIC 16I+ 1K5 H
GTIN (EAN)
4050118515978
Qty.
1 adet

Dimensions and weights

Depth
368,9 mm
Depth (inches)
14,524 inch
높이
92,92 mm
Height (inches)
3,658 inch
Width
109,5 mm
Width (inches)
4,311 inch
Net weight
940 g

Temperatures

Operating temperature
-25 °C...70 °C

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data

Altitude
≤ 2000 m
Communication
MODBUS RS485 RTU
current measuring
Shunt resistance 1 mOhm
Maximum current per string
25 A DC (-25…+70 °C)
Maximum number of strings
16
Pollution severity
2
Rated voltage
1500 V DC
Standards
IEC/EN61010-1:2010
IEC/EN61010-2-030:2010
EN61326-1:2013
String-current measurement error
± 300 mA from 3 A DC to 15 A DC
String-voltage measurement error
± 18 V from 150 V DC to 1,500 V
Supply current
<70 mA DC, 200 mA DC max.
Supply voltage
19.2 – 28.8 V DC
Цифровые входы
2

Classifications

ETIM 8.0
EC002928
ETIM 9.0
EC002928
ETIM 10.0
EC002928
ECLASS 14.0
22-57-02-92
ECLASS 15.0
22-57-02-92
