UR20-4DI-P-TS

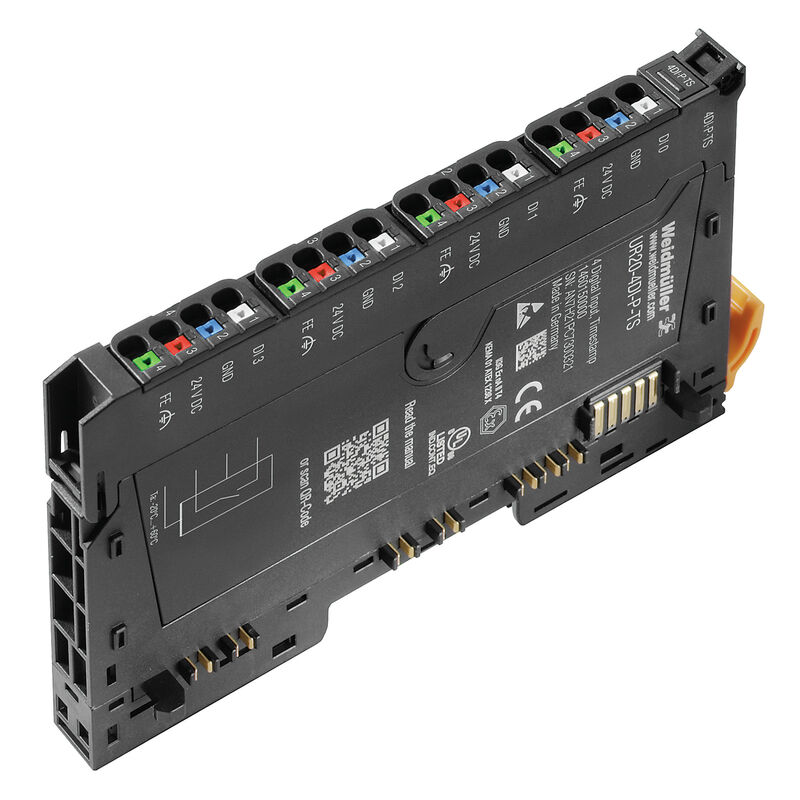

Product image
UR20-4DI-P-TS

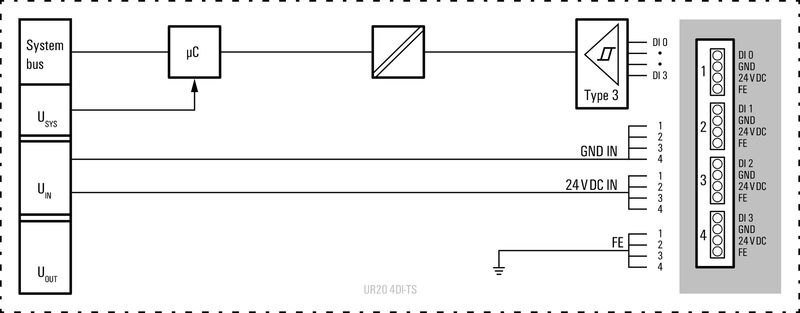

Block diagram
UR20-4DI-P-TS
Connection diagram
UR20-4DI-P-TS
Explanation of abbreviations

UR20-4DI-P-TS

Remote I/O module, IP20, 4-channel, Digital signals, Input

Ürün No. 1460150000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 12 Yedek parçalar 2 Münferit parçalar 2 İlgili ürünler 15
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance digital inputs Connection data Общие данные Power supply System data Classifications

Approvals

Сертификаты
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d2e83968-d07b-4c8a-82b2-25cf0c69fee7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/dde5b188-d0b1-4486-8f22-54b343043814/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/343066b4-2123-4788-b278-3ff01ec50f19/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Сертификат № (cULus)
E141197
Номер сертификата (cULusEX)
E223527

General ordering data

Версия
Remote I/O module, IP20, 4-channel, Digital signals, Input
Заказ №
1460150000
Тип
UR20-4DI-P-TS
GTIN (EAN)
4050118266306
Кол.
1 adet

Dimensions and weights

Глубина
76 mm
Depth (inches)
2,992 inch
Высота
120 mm
Height (inches)
4,724 inch
Ширина
11,5 mm
Width (inches)
0,453 inch
Размеры крепежа, высота
128 mm
Net weight
87 g

Temperatures

Температура хранения
-40 °C ... +85 °C
Рабочая температура
-20 °C...60 °C

Environmental Product Compliance

Состояние соответствия RoHS
Compliant with exemption
Исключение из RoHS (если применимо/известно)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8
Product Carbon Footprint
  • Cradle to gate:
    8,319 kg CO2 eq.

digital inputs

Diagnostic pour module
Yes
Egyedi csatorna diagnosztika
No
Format danych znacznika czasu
16 Bit
Hysteresis
> 1 V
Input filter
configurable
Input voltage, low
<5 V
Number of digital inputs
4
Reverse polarity protection
Yes
Risoluzione Time stamp
1 µs
Sensor supply
예
Sensor supply
  • min.:
    0 mA
  • znamionowy:
    750 mA
  • maks.:
    8 000 mA
Tensión de entrada High
> 11 V
Type
Types 1 and 3, EN 61131-2
센서 결선
2-wire
3-wire
3-wire + FE

Connection data

Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, max. (AWG)
AWG 16
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, min. (AWG)
AWG 26

Общие данные

Air humidity (operation)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (storage)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (transport)
10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (storage)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Air pressure (transport)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Mounting rail
TS 35
Pollution severity
2
Shock
15 g över 11 ms, halv sinusvåg, motsv. IEC 60068-2-27
Surge voltage category
II
Test voltage
500 V
UL 94 flammability rating
V-0
Vibration resistance
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6

Power supply

Napájecí napětí
24 V DC +20 %/ -15 %
via the system bus
Ochrana před záměnou polarity
Yes
Spotřeba proudu z IIN (příslušný napájecí úsek)
10 mA + load
Spotřeba proudu z Isys, typ.
8 mA

System data

Field bus protocol
PROFINET IRT
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
POWERLINK
Galvanic isolation
500 V DC between the current paths
Interface
u-remote system bus
mögliche Leitertechnik
2-wire
3-wire
3 conductor FES
Single-conductor
Transmission speed of system bus, max.
48 MBit/s
Typ modulu
Digital input module

Classifications

ETIM 8.0
EC001599
ETIM 9.0
EC001599
ETIM 10.0
EC001599
ECLASS 14.0
27-24-26-04
ECLASS 15.0
27-24-26-04
